What is DVI ? Types, Uses, and Comparison

DVI means Digital Visual Interface. You use DVI to link your computer to a monitor or projector. Many people still pick DVI because it shows clear pictures. This is helpful when you want high resolution. DVI works with both digital and analog signals. So, you can use it with many kinds of devices. The signal stays strong even if the cable is long. There are different DVI types. Knowing the differences helps you connect the right devices.

Here is why DVI is still important today:

Reason	Description
Superior Video Quality	DVI gives sharp and clear images for high-resolution screens.
Adaptability	DVI works with both digital and analog systems.
Signal Integrity	DVI keeps the signal strong even over long distances.

Key Takeaways

• DVI means Digital Visual Interface. It links computers to monitors or projectors. It gives clear pictures and high detail.

• There are three main kinds of DVI. DVI-D sends digital signals. DVI-A sends analog signals. DVI-I sends both types. Pick the right kind for your devices.

• DVI keeps signal quality strong over long distances. This makes it good for many setups, like at home or in an office.

• Single-link DVI works with screens up to 1920x1200. Dual-link DVI works with screens up to 2560x1600. Use dual-link for bigger screens or sharper pictures.

• DVI does not send sound signals. If you want sound, use another cable. You can also use HDMI for both video and sound.

What is DVI

DVI Purpose

You use DVI to send video from your computer to a screen. DVI stands for digital visual interface. This technology helps you connect devices like monitors, projectors, and TVs. DVI solves many problems that older video interfaces had. You get a clear picture because DVI resists signal interference. You do not see strange lines or colors on your screen. DVI also keeps the video signal strong, even if you use a long cable.

DVI makes your setup flexible. You can use it with both new and old devices. DVI transmits digital signals for modern screens and analog signals for older monitors.

Here are some problems DVI solved compared to older interfaces:

• DVI sends both analog and digital signals, so you can use it with many types of screens.

• DVI keeps your images stable and clear, even if there is electrical noise nearby.

• DVI maintains the quality of the video signal from your computer to your display.

You find different types of DVI connectors. Each type works best for certain devices. The table below shows how each DVI type fits different needs:

DVI Type	Description	Intended Use Cases
DVI-A	Transmits analog signals, suitable for older CRT monitors.	Older display devices, not commonly used today.
DVI-D	Transmits digital signals only, ideal for digital displays.	LCD monitors, projectors, high-definition TVs.
DVI-I	Supports both digital and analog signals.	Versatile use in various display types.

How DVI Works

DVI uses a special way to send video data. You connect your device with a DVI cable. The cable carries the video signal from your computer to your monitor. DVI uses a digital transmission format called TMDS. This format sends data in small packets. Your screen receives these packets and shows the image.

You can use DVI in single-link or dual-link mode. Single-link DVI supports up to 1920 × 1200 resolution at 60 Hz. Dual-link DVI goes higher, up to 2560 × 1600 at 60 Hz. If you want sharper images or bigger screens, you need dual-link DVI.

The table below explains how DVI sends video signals:

Feature	Description
Transmission Format	DVI uses a digital video transmission format based on PanelLink, utilizing TMDS for serial links.
Data Pairs	A single link DVI connection has four TMDS pairs: three for RGB data and one for the clock.
Encoding Method	The binary data is encoded using 8b/10b encoding, transmitting pixel data as a rasterized signal.
Maximum Resolution	Single link supports up to 1920 × 1200 at 60 Hz; dual link allows up to 2560 × 1600 at 60 Hz.
TMDS Clock Frequency	In single link mode, the maximum TMDS clock frequency is 165 MHz.
Color Depth	In dual link mode, it can represent up to 48-bit color depth.

DVI sends digital signals for modern screens. You get bright colors and sharp details. If you use an older monitor, DVI can send analog signals too. This makes DVI a good choice for many setups.

Tip: If you want the best picture quality, use DVI-D for digital signals. If you need to connect to older screens, DVI-I gives you more options.

DVI Types

There are a few dvi types you can find on video connectors. Each type works with different signals and devices. Knowing these types helps you pick the right one for your setup. Let’s look at the main dvi types and how they help with high-resolution screens.

DVI-D

DVI-D means Digital Visual Interface – Digital. This type only sends digital signals. You use DVI-D to connect your computer to your monitor with a digital link. Most new devices, like LCD monitors and projectors, use DVI-D. It gives you faster data and better pictures. You do not need to change the signal to analog, so your images stay sharp.

DVI-D is the most popular choice for home electronics. It gives you high-resolution video and better image quality.

Here is a table that shows what DVI-D connectors can do:

Specification	Single-Link	Dual-Link
Maximum Resolution	1920 x 1200 @ 60 Hz	2560 x 1600 @ 60 Hz
TMDS Transmitters	1	2
Bandwidth	Up to 4.95 Gbps	Up to 9.9 Gbps

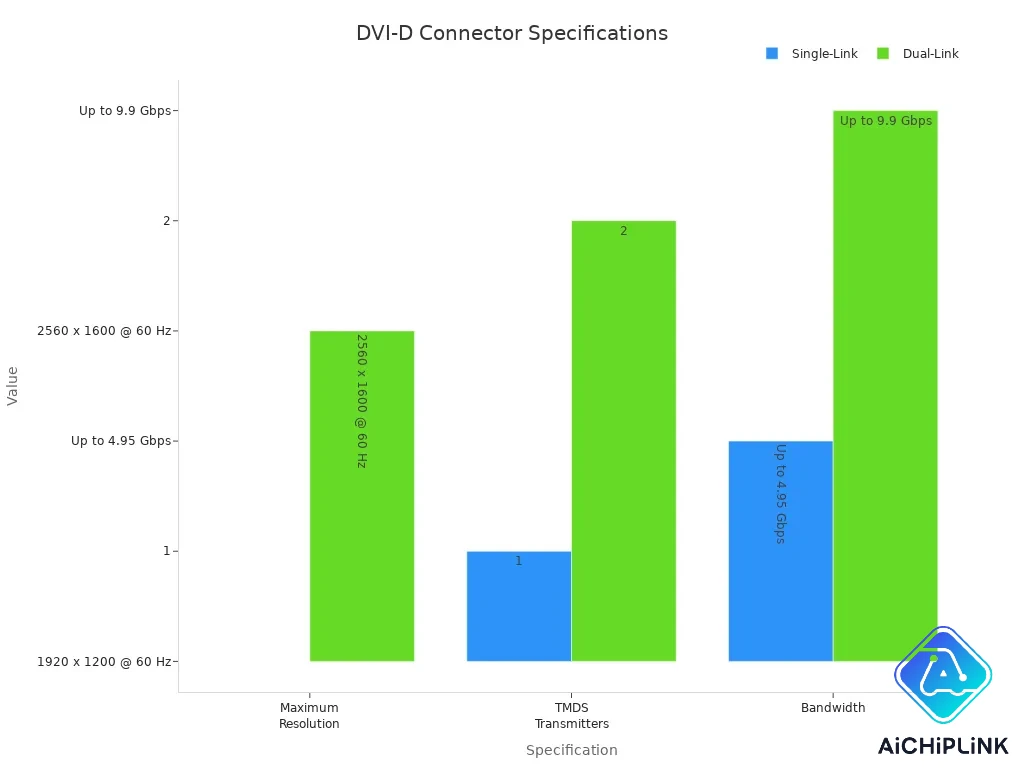

You can see how single-link and dual-link DVI-D are different in the chart below:

When you use DVI-D, you get:

• A direct digital link between your video card and LCD monitor.

• Faster and clearer images than with analog.

• No need to change the signal, so your connection stays strong.

DVI-A

DVI-A means Digital Visual Interface – Analog. This type only sends analog signals. You use DVI-A to connect to old devices, like CRT monitors or cheap LCD screens. DVI-A is good if your monitor does not have digital input. You can also use DVI-A to connect to VGA devices.

Here is a table that shows which devices use DVI-A and why:

Device Type	Purpose
CRT Monitors	To connect DVI signals to analog displays
Budget LCD Displays	To help connect with DVI-A cables
VGA Devices	To connect DVI-A to VGA for video output

If you have an old monitor, DVI-A lets you keep using it with new computers.

DVI-I

DVI-I means Digital Visual Interface – Integrated. This type sends both digital and analog signals. You use DVI-I when you want more choices. DVI-I works with both DVI-D and DVI-A cables. You can connect to digital or analog screens, depending on what you need.

Here is a table that explains how DVI-I works:

Feature	Description
Signal Types	Supports both digital (DVI-D) and analog (VGA) signals
Connector Compatibility	Works with DVI-I and DVI-D plugs, so you have more options
Practical Use	Can connect to VGA or DVI monitors, depending on the ports you have

If you want one connector for many devices, DVI-I is the best choice.

Single-Link vs Dual-Link

You will see single-link and dual-link for each dvi type. These links change the highest resolution you can use. Single-link DVI works for most normal monitors. Dual-link DVI works for bigger screens and higher resolutions.

Here is a table comparing single-link and dual-link DVI:

Connection Type	Maximum Resolution
Single Link	Over 1920 x 1080 at 60 Hz
Dual Link	Up to 2048 x 1536p

If you want really clear images for games or art, pick dual-link DVI. Single-link DVI is good for daily use and smaller screens.

Tip: Always check your device’s specs before picking a DVI cable. The right dvi type helps you get the best picture and high resolution.

Now you know how each dvi type works and what devices use them. DVI-D gives you digital quality for high-res screens. DVI-A connects to old analog monitors. DVI-I lets you switch between digital and analog, so your setup is flexible. Single-link and dual-link help you match your cable to your screen’s needs.

Uses and Compatibility

Common Devices

DVI connectors are found on many devices. Most desktop computers use DVI for video. Older laptops and some projectors also have DVI ports. Large monitors use DVI to show clear pictures. Graphics cards for games or design often have DVI ports. Some TVs and business projectors support DVI too. This makes it easy to connect screens. You can use DVI cables at home, in offices, or classrooms. They link computers to monitors or projectors.

Connecting to HDMI, VGA, DisplayPort

Sometimes you need to connect DVI to other ports. Many people use adapters for this. You can link DVI to HDMI, VGA, or DisplayPort. For example, a DVI to HDMI adapter connects your computer to a TV. The Tripp Lite Adapter Converter helps connect DisplayPort devices to VGA, DVI, or HDMI screens. This adapter has separate ports for each type. It supports high resolutions like 1920 x 1080 for DVI. It can go up to 3840 x 2160 for HDMI. DVI cables work with these adapters for many displays.

Tip: Always check if your adapter supports the resolution you want. This is important for high-resolution screens.

Ensuring Compatibility

You may have problems using DVI in mixed setups. Sometimes your device and monitor have different ports. You need adapters to connect them. This can cause issues. The table below shows common problems:

Challenge	Description
Need for Adapters	You often need adapters. They can clutter your space and may break over time.
Signal Degradation	Using couplers or adapters can weaken the signal. Your image may not look as clear.
Workflow Disruptions	Incompatibility can stop your work. This is bad in places like hospitals.

• Using couplers or gender changers can cause reflections. This lowers the signal quality.

• High-resolution signals may not work well with many DVI cables joined together.

Think about what happens to a high-resolution signal when you use two 6' DVI cables with a coupler. The signal can get weak. Your display may lose clarity.

To avoid problems, use the shortest DVI cables you can. Check your devices for the right ports. Make sure your adapters match the DVI signal type. If you want HDMI, use a DVI to HDMI adapter that supports your screen’s resolution. For VGA, use a DVI-A or DVI-I cable with the correct adapter. For DisplayPort, pick an adapter that supports DVI output.

You can get sharp images and smooth video if you plan your setup. Always check compatibility before you connect your devices.

DVI vs Other Interfaces

DVI vs HDMI

DVI and HDMI are not the same. DVI sends video only. HDMI sends both video and sound. If you use DVI, you need another cable for sound. HDMI is used more in TVs and new monitors. HDMI can show higher resolutions and sound with one cable.

Feature	DVI	HDMI
Maximum resolution	Lower (usually up to 2048x1536 @ 85Hz)	Very high (HDMI 2.1: supports 8K @ 60Hz)
Audio transmission	Video only	Audio and video together

Note: DVI works well for computers and old monitors. HDMI is better for home theaters and games.

DVI vs VGA

DVI and VGA help connect your computer to a screen. DVI uses digital signals. This keeps pictures sharp. VGA uses analog signals. The picture can look blurry or have problems. DVI gives better image quality than VGA.

Feature	DVI	VGA
Signal Type	Digital	Analog
Image Quality	Stays clear over distance	Can get fuzzy, lower quality
Resolution Support	Higher resolutions, dual-link support	Lower resolutions, less clarity

DVI vs DisplayPort

DisplayPort is newer and has more features than DVI. It has higher bandwidth. You can use bigger screens and faster refresh rates. DisplayPort sends audio too. You can connect more than one monitor with one cable. DVI cannot do these things. For jobs like medical imaging or design, DisplayPort is often best.

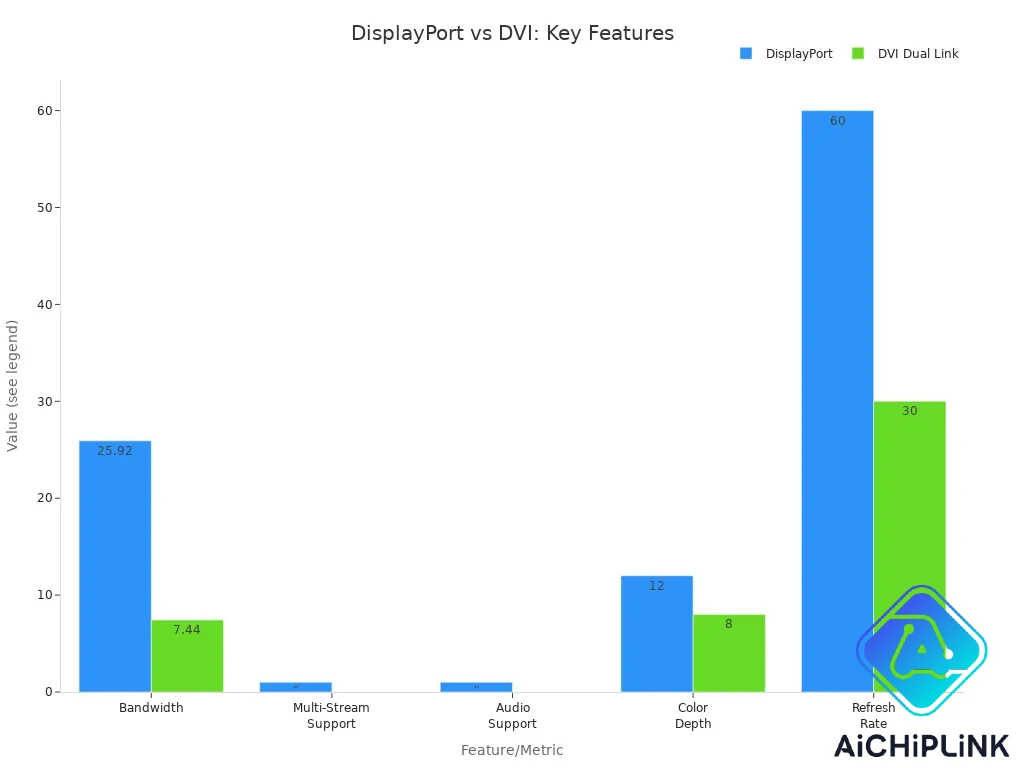

Feature/Metric	DisplayPort	DVI Dual Link
Bandwidth	Up to 25.92 Gbps (DP 1.4)	Up to 7.44 Gbps
Multi-Stream Support	Yes (MST)	No
Audio Support	Yes	No
High-Resolution Support	Great (4K at 60Hz)	Limited (needs changes)
Data Transmission Method	Packet-based	TMDS
Color Depth	Supports 10-bit/12-bit	Usually 8-bit
Refresh Rate	High (60Hz and above)	Limited (often 30Hz for 4K)
Use Case	Good for medical imaging	Not as good for high-res

Pros and Cons

It helps to know the good and bad sides of DVI. Here is a quick list:

DVI Advantages	DVI Disadvantages
Pure digital video, clear images	No audio; needs extra cable
Works with analog signals (DVI-I), can change to VGA	Limited bandwidth, no 4K@60Hz+ or HDR
Secure connection, screws keep it tight	Bulky, not good for thin devices

Tip: DVI is simple and works well for computer monitors. For new features and best pictures, HDMI or DisplayPort may be better.

Choosing the Right DVI

Factors to Consider

When you select a dvi cable for your setup, you need to think about several important factors. You want your devices to work together without problems. Here are some things you should check:

• Device compatibility matters most. Make sure your monitor and graphics card both support the same dvi type.

• Signal type is key. Some cables carry digital signals, while others carry analog. Pick the right one for your screen.

• Cable length affects signal strength. If you need a long cable, choose one that keeps the video clear.

• Resolution support helps you get sharp images. Check if your cable can handle the resolution your monitor needs.

• Connector type makes a difference. DVI-D, DVI-I, and DVI-A each work with different devices.

Tip: Always match the cable to your device’s needs. This helps you avoid blurry images or connection issues.

Checking Devices

You can check your devices to find out which dvi type you need. Look at the ports on your monitor and graphics card. DVI comes in three main formats: DVI-I, DVI-D, and DVI-A. Each format supports different signals.

• Inspect the female dvi plugs on your devices. They show which signals your devices support.

• If your device has a DVI-D port, use a DVI-D cable for digital video.

• If you see a DVI-A port, use a DVI-A cable for analog signals.

• For DVI and VGA connections, use a DVI to VGA cable or adapter if your dvi port supports analog.

• If both devices have DVI-I ports, you can use any dvi cable, but a DVI-I cable gives you the most options.

Compatibility Tips

You want your dvi devices to work together smoothly. Use this table to help you pick the right cable for your setup:

DVI Type	Description	Compatibility
DVI-D	Digital-only, carries digital video signal	Best for modern displays and GPUs
DVI-A	Analog-only, carries VGA and RGB signals	Rarely used, not suitable for digital sources
DVI-I	Integrated, carries both digital and analog signals	Most versatile, supports both digital and analog displays

Note: If you connect dvi to HDMI or VGA, use an adapter that matches your signal type. Always check your device’s manual for supported resolutions and cable types.

Choosing the right dvi cable helps you get the best picture quality and keeps your devices working well together.

You can pick the right DVI type if you know their main differences. The table below shows what each DVI type does and why it matters:

DVI Type	Description	Key Features
DVI-D	Sends only digital signals	Great for new screens, supports high-res
DVI-A	Sends only analog signals	Good for old VGA devices
DVI-I	Sends both digital and analog	Works with new and old monitors
Single-Link	Up to 1920x1200 resolution	Fine for most HD screens
Dual-Link	Up to 2560x1600 resolution	Needed for pro and high-res setups

Always look at your device’s connector and pin layout before you buy a cable. If you match the DVI type to your device, you get clear pictures and easy connections. Use the tables above to help you choose fast. Your setup works well when you pick the DVI type that fits your devices and what you need.
