From the weather forecast predicting a high-pressure system to the dashboard light warning of low tire pressure, our world is governed by invisible forces. Measuring this force—pressure—is one of the most critical sensing tasks in modern technology. A pressure sensor is the component that makes this possible, acting as a bridge between a physical force and a measurable electrical signal. But with confusing terms like absolute, gauge, differential, sensor, and transducer, selecting the right device can be a major challenge. With the global pressure sensor market projected to continue its strong growth through 2025 and beyond, understanding this technology is essential for engineers and hobbyists alike. This guide will demystify pressure measurement, explain the core technologies, and help you choose the right sensor with confidence.
1.0 What is a Pressure Sensor and How Does It Work?
At its most basic level, a pressure sensor is a device that measures the pressure of a gas or liquid and converts that information into an electrical signal.
1.1 The Core Function: Measuring Force Over Area
Pressure is defined as force applied perpendicular to the surface of an object per unit area. Most pressure sensors work by using a diaphragm—a thin, flexible disk—that deforms or deflects when pressure is applied. The sensor's job is to accurately measure this deflection and convert it into an electrical output. Think of it like a drum skin: the harder you press on it, the more it deflects. The sensing element acts like a microscopic ruler, precisely measuring that movement.
1.2 Sensor vs. Transducer vs. Switch: Clarifying the Terminology
The terms in the pressure measurement world can be confusing, but they have distinct meanings.
| Term | Definition |
|---|---|
| Pressure Sensor | The core sensing element itself, which outputs a raw, unconditioned electrical signal. |
| Pressure Transducer | A complete assembly that includes the sensor element plus signal conditioning circuitry. It outputs a standardized, calibrated signal (e.g., 0-5V, 4-20mA). Most devices you buy are technically transducers. |
| Pressure Switch | A simple device that opens or closes an electrical contact once a specific pressure point (setpoint) is reached. It provides a simple on/off signal, not a continuous measurement. |

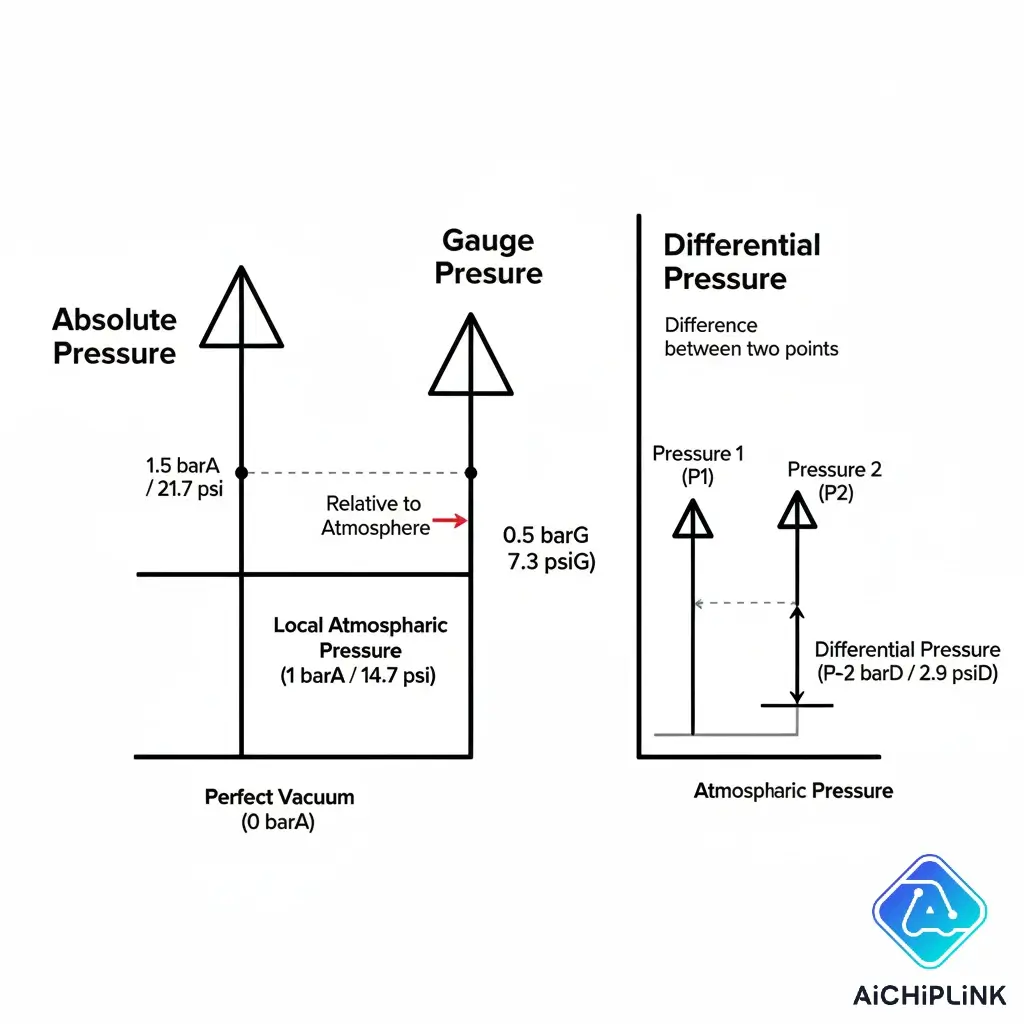

2.0 Understanding Pressure Types: Absolute, Gauge, and Differential
Before you can choose a sensor, you must know what type of pressure you need to measure. This is the most critical decision, and it's all about the reference point.
2.1 Absolute Pressure: Referenced to a Perfect Vacuum
An absolute pressure sensor measures pressure relative to a perfect vacuum (zero pressure). The sensor is built with a sealed vacuum chamber on one side of the diaphragm.
- Measurement: Total pressure, including atmospheric pressure.
- Use Case: Barometric pressure measurement (weather stations) and altimeters, where the total atmospheric pressure is the desired reading.
2.2 Gauge Pressure: Referenced to Local Atmospheric Pressure
A gauge pressure sensor measures pressure relative to the current ambient atmospheric pressure. It uses a vent to let the outside air pressure push on the back of the diaphragm.
- Measurement: The difference between the measured pressure and the local air pressure. A reading of zero means the pressure is the same as the atmosphere.
- Use Case: Tire pressure, blood pressure, and water pressure. In these cases, you only care about the pressure above the surrounding environment.
2.3 Differential Pressure: The Difference Between Two Points
A differential pressure sensor is designed with two ports and measures the difference in pressure between them.
- Measurement: P1 - P2.
- Use Case: Measuring airflow across a filter (to see if it's clogged), fluid flow in a pipe, or pressure levels in a pressurized vessel.
3.0 A Guide to the Main Types of Pressure Sensor Technology
Several technologies are used to convert the diaphragm's deflection into an electrical signal.
3.1 Piezoresistive Pressure Sensors (Strain Gauge)
This is the most common technology. It uses the piezoresistive effect, where the electrical resistance of a material changes when it is stretched or compressed. A strain gauge (a tiny resistor) is bonded to the diaphragm. As pressure flexes the diaphragm, the resistor is stretched, its resistance changes, and this change is measured.
- Strengths: High accuracy, good linearity, and a wide operating temperature range.
3.2 Capacitive Pressure Sensors
These sensors use a diaphragm and a fixed plate to form a capacitor. When pressure is applied, the diaphragm moves, changing the distance between the two plates. This change in distance results in a change in capacitance, which is measured by an electronic circuit.
- Strengths: High accuracy, excellent stability over time, and low power consumption.
3.3 Piezoelectric Pressure Sensors
These sensors leverage the piezoelectric effect, where certain materials (like quartz crystals) generate an electrical charge when subjected to mechanical stress. When pressure flexes the diaphragm, it stresses the crystal, which produces a voltage proportional to the change in pressure.
- Strengths: Excellent for measuring dynamic or rapidly changing pressures (e.g., explosions, pulsations), but not suitable for static pressure.
"The choice of sensing technology is a trade-off. Piezoresistive sensors are the versatile workhorses, while capacitive types offer high stability, and piezoelectric sensors are the specialists for dynamic events." - A principle highlighted by leading manufacturers like TE Connectivity.
3.4 Technology Comparison Table
| Feature | Piezoresistive (Strain Gauge) | Capacitive | Piezoelectric |
|---|---|---|---|
| Measures | Static & Dynamic Pressure | Static & Dynamic Pressure | Dynamic Pressure Only |
| Accuracy | Good to Excellent | Excellent | Good |
| Output | Linear, requires amplification | Non-linear, requires conditioning | High impedance, requires charge amp |
| Best For | General Purpose, Industrial, Automotive | High Accuracy, Low Power, Medical | Fast Events, Ballistics, Engine Knock |
4.0 How to Choose the Right Pressure Sensor: Applications & Selection
With an understanding of pressure types and technologies, you can select the right component for your job.
4.1 Key Factors for Choosing a Pressure Sensor
- Pressure Type: Is it Absolute, Gauge, or Differential? This is the first question to answer.
- Pressure Range: What is the minimum and maximum pressure you need to measure (e.g., 0-100 psi)?
- Accuracy: How precise do your measurements need to be? (e.g., ±0.5%).
- Media Compatibility: What gas or liquid will the sensor be exposed to? The sensor's material must be able to withstand it without corroding.
- Operating Environment: Consider the temperature range, vibration, and humidity.
- Output Signal: Do you need a raw sensor output, or a conditioned transducer output like 0-5V or 4-20mA?
4.2 Common Pressure Sensor Applications
You can find pressure sensors in a vast range of fields:
- Industrial: Monitoring process control, hydraulic systems, and HVAC systems.
- Automotive: Manifold Absolute Pressure (MAP) sensors, oil pressure sensors, and tire pressure monitoring systems (TPMS).
- Medical: Blood pressure monitors, ventilators, and infusion pumps.
- Consumer: Weather stations (barometers), smart watches (altimeters), and appliances like washing machines.
- Aerospace: Monitoring cabin pressure, hydraulic systems, and engine parameters.
Pressure sensors are fundamental components that translate the physical world of force and pressure into the digital language of electronics. By first understanding the crucial difference between absolute, gauge, and differential pressure, you can then navigate the various sensing technologies to find the perfect match for your application. As MEMS technology continues to make sensors smaller, cheaper, and more integrated, their role in everything from IoT devices to advanced industrial automation will only continue to expand.
Ready to measure your world? Explore a wide range of high-quality pressure sensors and transducers for any application at aichiplink.com today!
Written by Jack Elliott from AIChipLink.
AIChipLink, one of the fastest-growing global independent electronic components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.
We mainly source and distribute integrated circuit (IC) products of brands such as Broadcom, Microchip, Texas Instruments, Infineon, NXP, Analog Devices, Qualcomm, Intel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.
Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
Frequently Asked Questions
What is the difference between a pressure sensor and a pressure transducer?
The terms are often used interchangeably, but traditionally, a pressure sensor is the core sensing element that outputs a raw signal. A pressure transducer includes the sensor plus signal conditioning to provide a standardized, amplified output (e.g., 4-20mA). Most modern 'sensors' you buy are technically transducers.
What is the difference between absolute and gauge pressure?
The difference is their zero reference point. Absolute pressure uses a perfect vacuum as its zero point, measuring total pressure. Gauge pressure uses local atmospheric pressure as its zero point, measuring only pressure relative to the ambient air.
What is the most common type of pressure sensor?
Piezoresistive pressure sensors are the most common and versatile type. They offer a great balance of accuracy, reliability, and cost for a wide range of applications.
How do I calibrate a pressure sensor?
Calibration typically involves applying a known, stable pressure source (a pressure calibrator) to the sensor and adjusting the sensor's output (or the reading in your software) to match the known pressure. This is often done at a zero point and a "span" point (near the top of the measurement range).
Can a pressure sensor measure a vacuum?
Yes. A vacuum is any pressure below atmospheric pressure. To measure a vacuum, you would typically use an absolute pressure sensor, as it can measure all the way down to a perfect vacuum (0 PSIA). A gauge pressure sensor can also measure a vacuum, and it would show the reading as a negative value (e.g., -5 PSIG).
