A non-polarized capacitor stores electrical energy. You do not need to worry about how you connect it. This capacitor does not have a positive or negative side. You can use it in any direction. Non-polarized capacitors are common in AC circuits. In these circuits, the current changes direction. The capacitor helps remove unwanted noise. It also keeps voltage steady. It protects important parts from sudden voltage jumps. In electronics, it makes sound better in audio devices. It helps control power in appliances. It also keeps signals clear in communication systems.
Key Takeaways
-
Non-polarized capacitors hold electrical energy. You can connect them in any direction. They will not get damaged if you do this.
-
They work well in AC circuits. They help smooth out voltage. They filter out noise. They also protect parts from sudden spikes.
-
Some common types are ceramic, film, and mica capacitors. Each type is good for different uses. Each one has its own stability needs.
-
Non-polarized capacitors stop DC from passing through. But they let AC signals go through. This makes them great for audio and communication circuits.
-
Always pick a capacitor with the right voltage rating. Make sure it has the right capacitance for your project. This helps keep things safe and working well.
Non-Polarized Capacitor Types
There are a few main non-polarized capacitor types in electronics. Each type has its own special features. Some work better in certain situations than others. Here are the most common types you will find:
-
Ceramic Capacitor
-
Film Capacitor
-
Mica Capacitor
| Capacitor Type | Characteristics & Applications |
|---|---|
| Ceramic | Most common, low cost, used in RF and microwave circuits, 10 pF to 1 µF, some leakage, variable stability |
| Silver Mica | Expensive, very stable and temperature tolerant, low leakage, used in oscillators and filters, 1 pF to 3000 pF |
| Polyester (Mylar) | Inexpensive, accurate, little leakage, used where accuracy/stability less critical, 0.001 µF to 50 µF |
Ceramic Capacitor
Ceramic capacitors use a ceramic material inside. They come in two main shapes: disc and multi-layer chip. The multi-layer ceramic chip capacitor, or MLCC, has many thin layers. These layers are made of ceramic and metal. This design lets it hold a lot of charge in a small space. Ceramic capacitors are non-polarized, so you can connect them either way. They work well in high-frequency circuits because they have low resistance. You will see them used for filtering noise and keeping voltage steady. People use them in phones, computers, and cars. They are also found in medical and industrial machines.
Tip: Ceramic capacitors are small and cheap, so many people use them in their projects.
Film Capacitor
Film capacitors use thin plastic films as the inside part. Some films are made from polypropylene or polyester. Film capacitors come in many shapes, but all are non-polarized. They are very stable over time and with changes in temperature. Film capacitors do not lose much energy and keep their value even if voltage changes. You will find them in audio circuits and timing circuits. They are also used in high-voltage AC circuits. If a small part inside breaks, film capacitors can fix themselves and keep working.

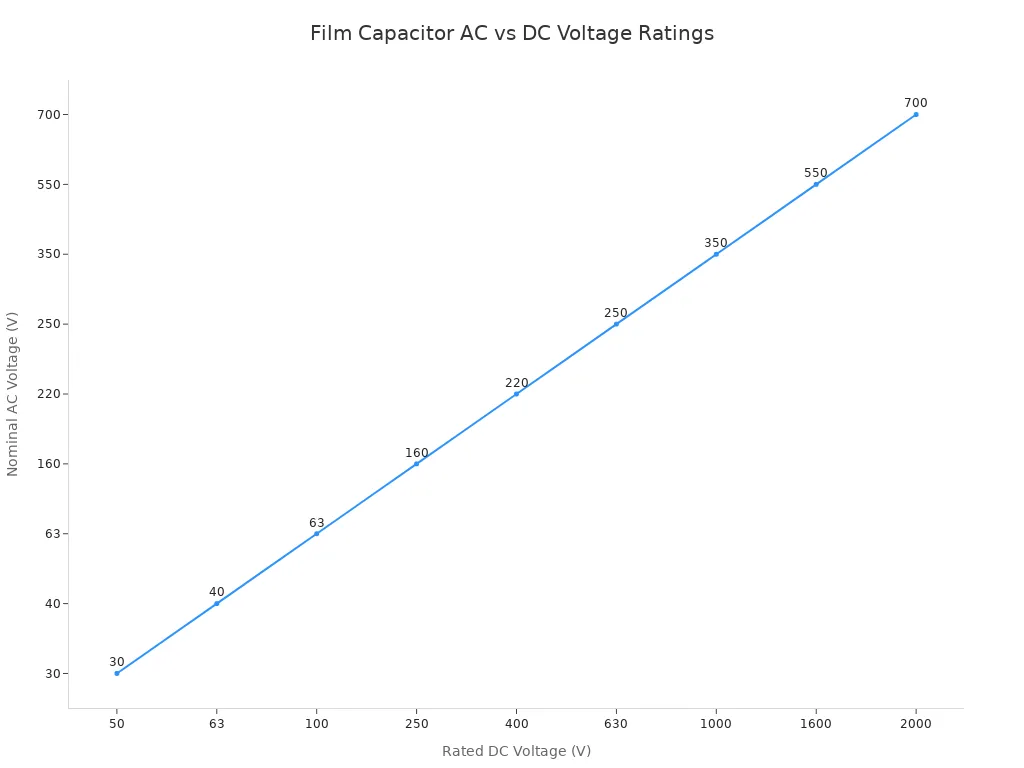

Film capacitors can handle many different voltages and sizes. For example, you can use them in circuits from 50V up to 2000V or more. This makes them good for power supplies and big machines.
Mica Capacitor
Mica capacitors use thin sheets of mica inside. Silver is put on the mica, and the layers are stacked and sealed. This makes a non-polarized capacitor that is very accurate and stable. Mica capacitors keep their value even if the temperature or frequency changes. You will see them in radio circuits, oscillators, and filters. These capacitors lose very little energy and can handle high voltages. They are strong and work well for tough jobs.
Note: Mica capacitors cost more than other types, but they work best in high-frequency and special circuits.
You can pick from these non-polarized capacitor types for your needs. Each type is good for different kinds of electronic projects.
How a Non-Polarized Capacitor Works
Basic Principle
A non-polarized capacitor holds and gives back electrical energy. It has two metal plates with a dielectric between them. When you add voltage, one plate gets positive charge. The other plate gets negative charge. The dielectric keeps the plates apart. This lets the energy stay as an electric field. When the circuit needs power, the capacitor gives it back fast. It works the same way no matter which way current flows. You do not need to worry about connecting it wrong. It does not have a positive or negative side.
Tip: The dielectric inside affects how well the capacitor works. Ceramic, film, and mica dielectrics help it stay stable. They also help it handle high frequencies and last longer.
You see non-polarized capacitors in circuits with changing voltages. For example, in spark suppression, when a switch opens, the inductor can make a voltage spike. The capacitor takes in this spike. It protects the rest of the circuit and cuts down sparks.
Use in AC Circuits
Non-polarized capacitors are used in AC circuits. They work safely no matter how the current changes. In AC, voltage goes back and forth many times each second. A non-polarized capacitor can handle this because it does not care about polarity. It charges and discharges every cycle. This helps smooth out voltage changes and filter noise.
-
Non-polarized capacitors:
-
Work in both AC and DC circuits without worry.
-
Do not get damaged if voltage reverses.
-
Stay stable even if temperature or frequency changes.
-
Handle high frequencies and quick voltage changes well.
-
In a power supply, a non-polarized capacitor smooths out voltage bumps. It takes in extra energy when voltage rises. It gives energy back when voltage drops. This keeps voltage steady and protects sensitive parts. You also find them in motor circuits. They help motors start and run smoothly by shifting the phase of the current.
Note: Polarized capacitors cannot handle AC voltage reversals. If you use them in AC circuits, they may break or burst.
Signal Coupling and Filtering
Non-polarized capacitors are important for signal coupling and filtering. When you want to send an AC signal to another part, you use a non-polarized capacitor. It blocks DC voltage and lets only AC pass. This keeps audio and communication signals clean.
| Capacitor Type | Signal Coupling Role | Key Benefits |
|---|---|---|
| Film Capacitor | Used in audio circuits | Low loss, stable, keeps sound clear |
| Ceramic Capacitor | Used in communication and high-frequency | Handles high frequencies, keeps signals clean |
| Non-polarized (general) | Passes AC, blocks DC, isolates stages | Easy to install, works in both directions |
You often use non-polarized capacitors in audio gear to make sound better. They remove unwanted DC, cut distortion, and help control bass and treble. In radios and communication circuits, they filter noise and keep signals strong and clear.
-
Non-polarized capacitors:
-
Filter out unwanted frequencies and noise.
-
Let only the signals you want go through.
-
Keep circuits stable and protect against voltage spikes.
-
If you build a filter circuit, a non-polarized capacitor helps pick which frequencies to keep or block. This is important in audio systems, radios, and power supplies.
Remember: Non-polarized capacitors are best for filtering and coupling in AC and high-frequency circuits. They keep your signals clean and your circuits safe.
Non-Polarized Capacitor vs Polarized Capacitor
Key Differences
When you look at non-polarized and polarized capacitors, you see some big differences. These differences change how you use them in your projects.
-
Polarized capacitors, like electrolytic capacitors, have a positive and negative side. You must connect them the right way or they can break.
-
Non-polarized capacitors do not have a set direction. You can connect them any way and they will still work.
-
Inside a polarized capacitor, there is an aluminum oxide film. This film makes the capacitor have polarity.
-
Non-polarized capacitors use materials like ceramic, polyester, or metal oxide films. These materials do not make polarity.
-
Polarized capacitors are usually round and not often square. Non-polarized capacitors can be tube, sheet, square, or round.
-
The way a capacitor is made and its inside material decide its polarity, size, and where you use it.
-
There are non-polarized electrolytic capacitors, but they are bigger than polarized ones with the same value.
| Feature | Non-Polarized Capacitor | Polarized Capacitor |
|---|---|---|
| Polarity | No polarity | Has polarity |
| Dielectric Material | Ceramic, film, mica, polyester | Aluminum oxide (electrolyte) |
| Circuit Compatibility | AC and DC circuits | DC circuits only |
| Shape | Many shapes | Mostly round |
| Connection Direction | Any direction | Must match polarity |
Practical Implications
It is important to know when to use each type of capacitor. Non-polarized capacitors do not have polarity, so you get more choices. You can use them in both AC and DC circuits. This makes them great for circuits where voltage changes direction, like in audio equipment, signal coupling, and power supply filtering. You do not need to worry about connecting them wrong.
A polarized capacitor works best in DC circuits where voltage stays the same way. If you use it in an AC circuit, it might break or even burst. You must always look at the markings and connect it the right way.
You should pick a non-polarized capacitor when:
-
You build AC circuits where voltage goes back and forth.
-
You need to couple or separate signals in audio amplifiers.
-
You want to filter signals and cut down noise.
-
You work with high-frequency or noise-sensitive circuits.
-
You need to keep power supplies steady and block AC noise.
Choosing between a non-polarized and polarized capacitor depends on what your circuit needs. If you need a lot of capacitance in a small space and only use DC, a polarized capacitor is a good pick. If you want safety, more options, and work with changing voltages, choose a non-polarized type.
Tip: Always check your circuit’s voltage type and direction before picking a capacitor. This helps you stop damage and keeps your project working well.
How to Use a Non-Polarized Capacitor
Selection Tips
When you pick a capacitor, look at a few things. First, check the voltage rating. The voltage rating should be higher than your circuit’s highest voltage. This keeps your parts safe and helps them last longer. Next, match the capacitance value and tolerance to your circuit. If you build a filter, the right value keeps it working well.
Think about the type of capacitor you need. Ceramic capacitors are good for high-frequency jobs. They are small and not expensive. Film capacitors are stable and lose little energy. If you need a non-polarized capacitor for a special job, check the datasheet. Look for details like ESR and temperature ratings.
-
Here are some tips for picking a capacitor:
-
Make sure the voltage rating is high enough.
-
Choose the right capacitance and tolerance.
-
Pick the best type for your circuit’s needs.
-
Buy from trusted brands to get good parts.
-
You can spot a non-polarized capacitor by looking for no polarity marks. There will not be a plus or minus sign on it. In circuit diagrams, the symbol has two straight lines. Some capacitors have an "NP" label, which means non-polarized.
Tip: If you swap a polarized capacitor for a non-polarized one, check all ratings to make sure it fits.
Common Applications
Non-polarized capacitors are used in many projects. They are important in audio equipment. They help filter signals and make sound better. In power supplies, they smooth out voltage and cut noise. You also see them in motor circuits. They help motors start and run better.
| Application Area | Role of Non-Polarized Capacitor |
|---|---|
| Audio circuits | Signal coupling, noise filtering |
| Power supplies | Voltage smoothing, noise reduction |
| Motor circuits | Phase shifting, starting assistance |
| Communication gear | Signal filtering, frequency tuning |
Non-polarized capacitors are also used in timing circuits and lighting systems. Some household appliances use them too. You can use these capacitors in both AC and DC circuits. This makes them very flexible. Always check the voltage and capacitance before using one. Make sure it fits your project’s needs.
A capacitor keeps energy and helps manage voltage in circuits. You can put a non-polarized capacitor in any way you want. This makes it simple to use and good for AC or DC circuits.
Remember, always check the capacitance, voltage, and your circuit before picking a capacitor.
| Feature | Polarized | Non-Polarized |
|---|---|---|
| Polarity | Must match | Any direction |
| Best Use | DC circuits | AC and DC circuits |
If you want to learn more, look at online forums and learning sites about capacitors and how to use them.
FAQ
What happens if you connect a non-polarized capacitor backward?
You do not have to worry about which way you connect it. Non-polarized capacitors work the same in both directions. Flipping it will not hurt the capacitor.
Can you use a non-polarized capacitor in a DC circuit?
Yes, you can use a non-polarized capacitor in a DC circuit. It stores and gives back energy just like it does in AC circuits. People often use it to filter signals or lower noise.
How do you identify a non-polarized capacitor?
Check if there are no plus (+) or minus (–) marks. Some non-polarized capacitors have an "NP" label. In circuit diagrams, the symbol has two straight lines.
Why do audio circuits use non-polarized capacitors?
Audio circuits use non-polarized capacitors to stop DC and let AC signals go through. This helps keep sound signals clear and stops noise or distortion.
What is the main difference between polarized and non-polarized capacitors?
| Feature | Non-Polarized | Polarized |
|---|---|---|
| Polarity | Any direction | Must match polarity |
| Circuit Use | AC and DC | DC only |
Tip: Always check what kind of circuit you have before picking a capacitor.
