Manifold air pressure sensors measure the absolute pressure inside the intake manifold, providing real-time data to the engine control unit. Each sensor plays a critical role in engine management by helping optimize the air-fuel mixture for efficient combustion. The sensor monitors changes in intake pressure, which occur as the engine load varies. When the sensor detects intake pressure, it allows the system to adjust fuel delivery and ignition timing. Fault simulation studies show that failure of this sensor triggers a diagnostic trouble code and causes power loss, highlighting its importance in diagnostics and maintenance. The sensor market reached USD 10 billion in 2023 and continues to grow, driven by demand for better engine management and emission control. In modern vehicles, the sensor helps control intake boost pressure in turbocharging systems and supports compliance with environmental regulations. The sensor’s ability to monitor intake conditions ensures efficient operation and reliable diagnostics, making manifold air pressure sensors essential in today’s vehicles.
Key Takeaways
-
Manifold air pressure sensors measure intake manifold pressure to help the engine control unit adjust fuel and ignition for better performance and efficiency.
-
Different types of sensors, such as analog, digital, absolute, and TMAP, serve specific engine needs and improve accuracy in various vehicle systems.
-
These sensors play a key role in fuel injection, boost control, emissions reduction, and engine diagnostics, supporting smooth and reliable vehicle operation.
-
Common signs of a faulty sensor include rough idling, hesitation, stalling, poor fuel economy, and check engine light warnings, which need prompt attention.
-
Regular maintenance, cleaning, and timely replacement of sensors keep engines running efficiently, reduce emissions, and prevent costly repairs.
Manifold Air Pressure Sensors Overview
What They Are

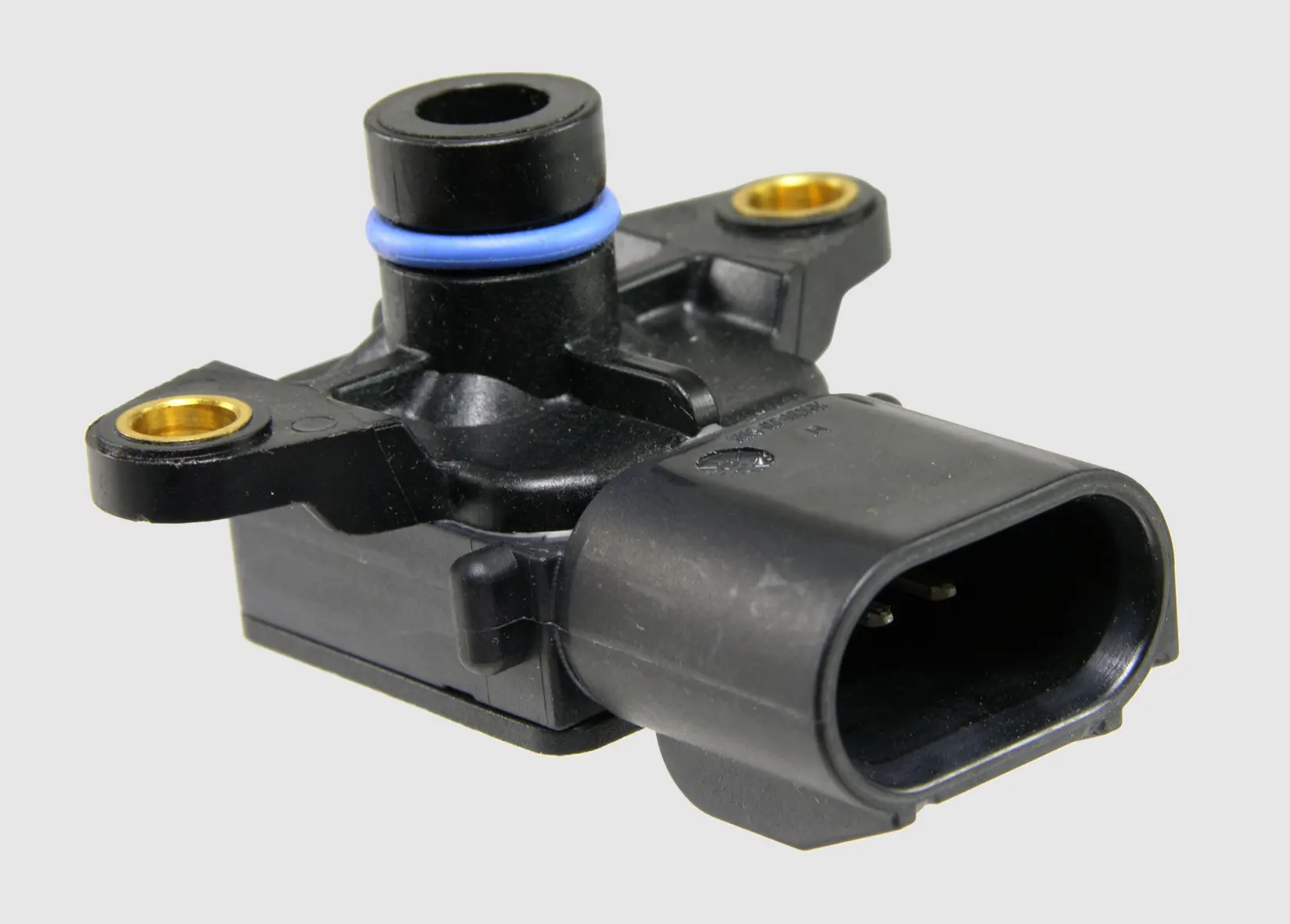

Manifold air pressure sensors measure the absolute pressure inside the intake manifold of an engine. These sensors provide real-time data that helps determine how much air enters the engine. The manifold absolute pressure sensor, often called a MAP sensor, plays a vital role in modern vehicles. Early automotive sensors were mechanical and offered only basic information. The introduction of electronic sensors in the 1970s and 1980s marked a turning point. These new sensors improved ignition and fueling control, which led to better engine performance and efficiency. By the 1990s, digital technology and microelectronics allowed sensors to become more accurate and reliable. Today, manifold air pressure sensors use advanced designs to deliver precise intake pressure readings, supporting both safety and performance in vehicles.
Main Function
The main function of manifold air pressure sensors is to monitor the pressure inside the intake manifold. This function allows the sensor to detect changes in air pressure as the engine operates under different loads. The sensor converts this pressure data into an electrical signal, which the engine control unit uses to adjust fuel injection and ignition timing. This process ensures the engine receives the correct air-fuel mixture for optimal combustion. The function of these sensors directly impacts engine performance, fuel efficiency, and emissions.
Note: The function of manifold air pressure sensors has evolved with advancements in automotive electronics. Early sensors provided limited data, but modern sensors offer high-resolution, real-time information that supports advanced engine management systems.
The function of these sensors also extends to turbocharged engines, where accurate intake pressure readings are essential for controlling boost and maintaining engine performance. The demand for precise sensors has grown as manufacturers seek to meet stricter emission standards and improve engine efficiency.
Role in Engine Management
Manifold air pressure sensors play a central role in engine management. They supply critical intake pressure data to the engine control unit, which uses this information to regulate fuel delivery and ignition timing. This process helps maintain engine performance under various driving conditions. The sensors also support engine management systems by enabling adaptive strategies that respond to changes in load, altitude, and temperature.
Empirical studies confirm the operational benefits of these sensors. For example, researchers have validated the effectiveness of advanced observer-based approaches for estimating intake manifold pressure. These methods improve the accuracy of pressure measurement and model correction, which leads to better engine management strategies. In turbocharged engines, tests have shown that controlling intake manifold pressure can significantly improve transient torque response, enhancing overall engine performance.
Manifold air pressure sensors also contribute to diagnostics and maintenance. When a sensor detects abnormal intake pressure, it can trigger a diagnostic trouble code. This feature helps technicians identify issues quickly, reducing downtime and improving vehicle reliability. The integration of these sensors into engine control systems has become essential for achieving high engine performance, efficiency, and compliance with environmental regulations.
| Key Roles of Manifold Air Pressure Sensors in Engine Management |
|---|
| Optimize air-fuel mixture for combustion |
| Support adaptive engine management strategies |
| Enhance engine performance and efficiency |
| Enable accurate diagnostics and maintenance |
| Assist in meeting emission standards |
How They Work
Structure & Components
A manifold air pressure sensor contains several important components that work together to measure intake pressure. The main part is a thin silicon diaphragm. This diaphragm sits inside the sensor and faces the intake manifold. When the engine runs, changes in intake pressure cause the diaphragm to bend. The sensor uses a Wheatstone bridge circuit with piezoresistive strain gauges attached to the diaphragm. As the diaphragm moves, the resistance in these gauges changes. This change creates a small electrical signal. The sensor also includes an amplifier circuit. The amplifier boosts the signal so the engine control unit can read it. Some sensors add temperature compensation circuits to keep the function accurate in different conditions. The sensor’s structure ensures it can monitor intake pressure and support engine performance.
Signal Processing
The sensor’s function depends on accurate signal processing. The weak electrical signal from the diaphragm needs amplification and conditioning. The sensor’s internal circuits refine the signal, removing noise and adjusting the output. This process ensures the engine control unit receives reliable data. Testing confirms the accuracy of this function. Technicians use digital multimeters to check the sensor’s output voltage while the engine runs. Vacuum tests show how the sensor responds to intake pressure changes. If the sensor detects a problem, it can trigger a diagnostic trouble code and alert the driver. Advanced sensors include fail-safe features that help the engine control unit protect engine performance if the sensor fails.
Note: Accurate signal processing is essential for the sensor’s function. It allows the engine control unit to make real-time adjustments for optimal engine performance.
ECU Integration
The engine control unit relies on the sensor’s output to manage engine performance. The sensor sends its electrical signal to the ecu, which interprets the data. The ecu uses this information to determine engine load and adjust the air-fuel ratio. This function helps the engine control unit optimize fuel injection and ignition timing. The ecu also uses the sensor’s data to control emissions and support diagnostics. In turbocharged engines, the ecu depends on the sensor to control boost pressure. The close integration between the sensor and the ecu ensures the engine operates efficiently. This relationship supports both performance and emissions control in modern vehicles.
Types of MAP Sensors
Analog vs. Digital
MAP sensors come in two main types: analog and digital. Analog sensors produce a voltage signal that changes in direct proportion to the pressure inside the intake manifold. Digital sensors, on the other hand, generate a frequency-based signal that the engine control unit can interpret. Each type has a unique function and application in modern vehicles. Analog sensors often appear in older or basic engine management systems. Digital sensors work well with advanced electronic control units and offer higher resolution.
The following table compares the main characteristics of these sensor types:
| Sensor Type | Output Signal Type | Resolution & Linearity | Noise & Interference Susceptibility | Environmental Stability | Cost & Complexity | Suitability & Application |
|---|---|---|---|---|---|---|
| Analog MAP Sensor | Voltage (linear/calibrated) | Lower resolution, can be linear | More susceptible to noise | Affected by temperature/pressure | Simpler, less expensive | Basic engine management, cost-effective |
| Digital MAP Sensor (Frequency Output) | Frequency proportional to pressure | Higher resolution, non-linear output | More susceptible to noise than analog absolute sensors | Better digital system compatibility | More complex, higher cost | Modern engine controls, digital signal processing |
Absolute vs. Gauge
MAP sensors also differ by the reference point they use for measuring pressure. Absolute sensors measure pressure relative to a perfect vacuum. Gauge sensors measure pressure relative to the surrounding atmospheric pressure. The function of absolute sensors provides high accuracy and stability, especially in forced induction engines. Gauge sensors offer a simpler function and often cost less, but they can be affected by environmental changes.
| Sensor Type | Measurement Basis | Output Signal Characteristics | Accuracy & Stability | Noise Susceptibility | Cost & Complexity | Typical Application |
|---|---|---|---|---|---|---|
| Absolute Pressure MAP Sensor | Absolute pressure (vacuum) | Stable, precise voltage signal | High accuracy and stability | Less affected by electrical noise | More expensive and complex | High-performance or forced induction engines |
| Analog Voltage Output MAP Sensor | Pressure relative to ambient | Voltage signal proportional to pressure | Less stable, accuracy affected by environment | More susceptible to noise | Simpler and cost-effective | Standard naturally aspirated engines, basic management |
TMAP Sensors
TMAP sensors represent a special type that combines two functions in one device. This sensor measures both the manifold air pressure and the intake air temperature. Engineers use TMAP sensors in turbocharged engines where both pressure and temperature data are critical for precise engine control. The dual function of this sensor helps optimize the air-fuel mixture and boost pressure. TMAP sensors support advanced engine management strategies and help meet strict emission standards.
Tip: TMAP sensors reduce the number of separate sensors needed in the intake system, saving space and simplifying wiring.
Use Cases
Different types of MAP sensors serve specific functions in various vehicle applications. Analog sensors fit basic engine management systems and cost-sensitive designs. Digital sensors suit modern vehicles that require fast, accurate data for advanced control. Absolute sensors work best in high-performance or turbocharged engines where stable readings are essential. Gauge sensors provide a simple function for standard engines. TMAP sensors appear in vehicles that need both pressure and temperature data for optimal performance.
Automakers select the sensor type based on the function required, the complexity of the engine, and the desired balance between cost and performance. Understanding these types helps technicians choose the right sensor for diagnostics, replacement, or upgrades.
Applications in Modern Vehicles
Fuel Injection
Modern vehicle applications rely on manifold air pressure sensors to achieve optimal performance in fuel injection systems. The sensor measures intake pressure and sends this data to the engine control unit. The unit uses this information to calculate the correct air-fuel mixture for the engine. Accurate intake readings allow the system to adjust injector pulse width and ignition timing, especially during cold starts or rapid acceleration. This process improves engine efficiency, reduces fuel consumption, and supports consistent engine performance. Engineers use high-precision sensors during development to map output voltages at many throttle positions, ensuring the engine receives the right amount of fuel under all conditions.
Boost Control
In turbocharged and supercharged applications, boost control depends on the manifold air pressure sensor. The sensor continuously monitors intake boost pressure and provides real-time feedback to the engine control unit. The unit adjusts wastegate operation and fuel delivery to maintain safe pressure levels. This prevents engine damage from excessive boost and ensures reliable engine performance. If the sensor fails, the system may experience erratic boost, power loss, or increased fuel use. The accuracy and responsiveness of the sensor directly affect engine reliability and performance in these high-demand applications.
Emissions
Manifold air pressure sensors play a vital role in emissions control applications. The sensor supplies pressure data to the engine control unit, which calculates air density and air mass flow rate. This information helps the system maintain the correct air-fuel mixture, reducing emissions of nitrogen oxides, carbon monoxide, and hydrocarbons. The sensor also monitors the Exhaust Gas Recirculation system, detecting pressure changes and enabling timely adjustments. During emissions testing, the sensor assists in measuring evaporative emissions, supporting regulatory compliance. Faulty sensors can cause incorrect mixtures, leading to increased emissions and failed tests.
Tip: Regular sensor checks help maintain engine efficiency and meet emissions standards.
Diagnostics
Diagnostics applications benefit from the integration of manifold air pressure sensors. The sensor detects abnormal intake pressure and triggers trouble codes, such as P0105 or P0106, when issues arise. These codes help technicians identify problems quickly, reducing downtime and supporting engine management. Onboard diagnostics systems use sensor data to monitor engine performance and emissions continuously. Accurate sensor readings ensure the engine operates within safe limits and maintains high performance.
Faulty MAP Sensor
Symptoms
Drivers and technicians often notice several clear signs of a faulty map sensor. These symptoms can affect both the engine and overall vehicle performance. When the sensor fails to provide accurate intake readings, the engine control unit cannot adjust the air-fuel mixture or ignition timing correctly. This disruption leads to a range of issues that can be observed during normal driving.
-
Hesitation during acceleration
-
Rough idling
-
Engine stalling
-
Engine misfires
-
Black smoke from the exhaust
-
Poor fuel economy
-
Increased emissions
Diagnostic trouble codes such as P0105, P0106, P0107, and P0108 frequently appear when the sensor malfunctions. These codes help pinpoint the source of the problem during diagnostics. Drivers may also notice high fuel use, which signals the need for immediate attention. Recognizing the signs of a faulty map sensor early can prevent further damage and restore proper performance.
Tip: If the check engine light appears along with any of these symptoms, technicians should inspect the intake system and the sensor immediately.
Causes
Several factors contribute to the failure of manifold air pressure sensors. Over time, sensor age and wear reduce accuracy. Exposure to extreme temperatures and constant vibrations inside the engine bay can damage sensitive components. Vacuum leaks in the intake system allow unmetered air to enter, which disrupts sensor readings. Contamination from dirt, oil, or debris can block the sensor’s port or damage the diaphragm. Manufacturing defects and wiring or installation issues also play a role in sensor failure.
The following table presents statistical data from a study on sensor fault reconstruction in heavy-duty diesel engines. The table shows the numerical verification of manifold gas pressure sensor faults, which supports a better understanding of failure causes and detection:
| Sensor Fault | Jobserver | Jsensor |
|---|---|---|
| Manifold gas pressure | 0.122 | 0.2572 |
These values represent the statistical performance metrics for detecting faults in the intake system. Regular monitoring and prompt repairs help maintain engine performance and prevent recurring issues.
Maintenance
Proper maintenance of the manifold air pressure sensor ensures reliable performance and extends the life of the intake system. Technicians should inspect the sensor and its wiring during routine service. Cleaning the sensor port with appropriate cleaners removes dirt and debris that may affect readings. Checking for vacuum leaks in the intake manifold helps prevent false signals. Technicians should also verify that all electrical connections remain secure and free from corrosion.
Note: Always disconnect the battery before servicing the sensor to avoid accidental short circuits.
Routine maintenance reduces the risk of unexpected failures and supports consistent engine performance. Keeping the intake system clean and free of leaks allows the sensor to deliver accurate data to the engine control unit.
Replacement
When maintenance cannot restore proper function, replacing the sensor becomes necessary. Technicians should select a sensor that matches the vehicle’s specifications. The replacement process involves disconnecting the electrical connector, removing the old sensor, and installing the new one in the intake manifold. After installation, technicians should clear any diagnostic trouble codes and test the engine to confirm restored performance.
A new sensor helps the engine control unit regain control over the air-fuel mixture and ignition timing. This action improves fuel economy, reduces emissions, and restores smooth operation. Regular replacement of worn or damaged sensors keeps the intake system and engine running at peak performance.
Callout: Always use high-quality replacement parts to ensure long-term reliability and optimal performance.
MAP Sensors vs. Other Sensors
MAP vs. MAF
Many vehicles use both manifold air pressure sensors and mass air flow sensors, but each sensor measures different aspects of the intake process. The MAP sensor measures the absolute pressure inside the intake manifold. The MAF sensor measures the mass of air entering the engine using a heated element. Both sensors provide critical data for engine control, but their roles and performance differ.
| Feature/Aspect | MAF Sensor | MAP Sensor |
|---|---|---|
| Measurement Principle | Measures mass of air directly via heated element | Measures absolute pressure inside intake manifold |
| Accuracy & Responsiveness | Higher accuracy and responsiveness | Less precise but reliable |
| Sensitivity | Sensitive to contamination (dust, oil, particles) | More robust and less sensitive |
| Cost | More expensive | Less expensive |
| Application | Gasoline engines with electronic fuel injection | Diesel engines, carburetors, throttle body injection |
| Airflow Requirement | Requires laminar airflow for accurate readings | Less affected by airflow disturbances |
| Environmental Suitability | Less suitable for harsh environments | Suitable for harsh and heavy-duty applications |
The map vs maf sensors debate often centers on reliability and application. MAF sensors need clean, undisturbed airflow for accurate readings. They are sensitive to dust and oil, so air filter quality matters. MAP sensors, in contrast, handle harsh intake conditions better and cost less. Engine control modules use MAF data for base fuel calculations, while MAP sensors infer engine load from intake pressure. Both sensors help the control unit adjust fuel injection and ignition timing.
Tip: Technicians often find MAP sensors more durable in heavy-duty or off-road vehicles.
MAP vs. TPS
The throttle position sensor (TPS) and the manifold air pressure sensor both provide input for engine control, but they measure different variables. The TPS detects the position of the throttle plate, which shows how much the driver presses the accelerator. The MAP sensor measures the pressure inside the intake manifold, reflecting engine load.
-
The TPS gives the control unit information about driver intent.
-
The MAP sensor tells the control unit about intake pressure changes due to throttle movement and engine speed.
-
Both sensors work together to help the control unit manage fuel delivery and ignition timing.
If either sensor fails, the control system may struggle to maintain smooth engine operation. The control unit often uses backup strategies, but performance and efficiency can drop.
When to Test or Replace
Technicians should test or replace a sensor when they notice symptoms like rough idling, poor fuel economy, or trouble codes related to intake or control issues. Regular inspection of the intake system and sensor wiring helps prevent unexpected failures. If the check engine light appears, a diagnostic scan can reveal if the MAP, MAF, or TPS sensor needs attention.
-
Test the sensor if the engine stalls or hesitates during acceleration.
-
Replace the sensor if cleaning or wiring repairs do not restore normal function.
-
Always use high-quality parts for sensor replacement to ensure reliable intake and control performance.
Note: Routine maintenance of all intake sensors supports efficient engine control and reduces emissions.
Manifold air pressure sensors remain vital for modern vehicle performance and reliability. Regular maintenance and prompt replacement of faulty sensors help prevent issues like unstable acceleration and poor fuel economy.
-
MAP sensors enable the ECU to optimize fuel delivery, improving efficiency and reducing emissions.
-
Proper sensor care ensures correct air-fuel mixture and ignition timing, which enhances engine life.
-
Preventive steps such as cleaning and monitoring sensor output support sustained performance.
Drivers and technicians who understand MAP sensors can diagnose problems faster and keep vehicles running smoothly.
FAQ
What does a manifold air pressure sensor do in a car?
A manifold air pressure sensor measures the pressure inside the intake manifold. This sensor sends data to the engine control unit. The unit uses this information to adjust fuel delivery and ignition timing for better performance and efficiency.
How often should a sensor be replaced?
Most sensors last for many years. Technicians recommend checking the sensor during regular maintenance. If the sensor shows signs of failure, such as rough idling or poor fuel economy, replacement becomes necessary.
Can a faulty sensor affect fuel economy?
Yes. A faulty sensor can send incorrect pressure readings to the engine control unit. This causes the engine to use too much or too little fuel. Drivers may notice lower fuel economy and increased emissions.
What are common signs of sensor failure?
Common signs include engine hesitation, rough idling, stalling, and black smoke from the exhaust. The check engine light may also turn on. Technicians often find trouble codes related to the sensor during diagnostics.
Is it possible to clean a sensor instead of replacing it?
Technicians can sometimes clean a sensor if dirt or debris blocks the port. Use a proper cleaner and handle the sensor carefully. If cleaning does not restore normal function, replacement remains the best option.
