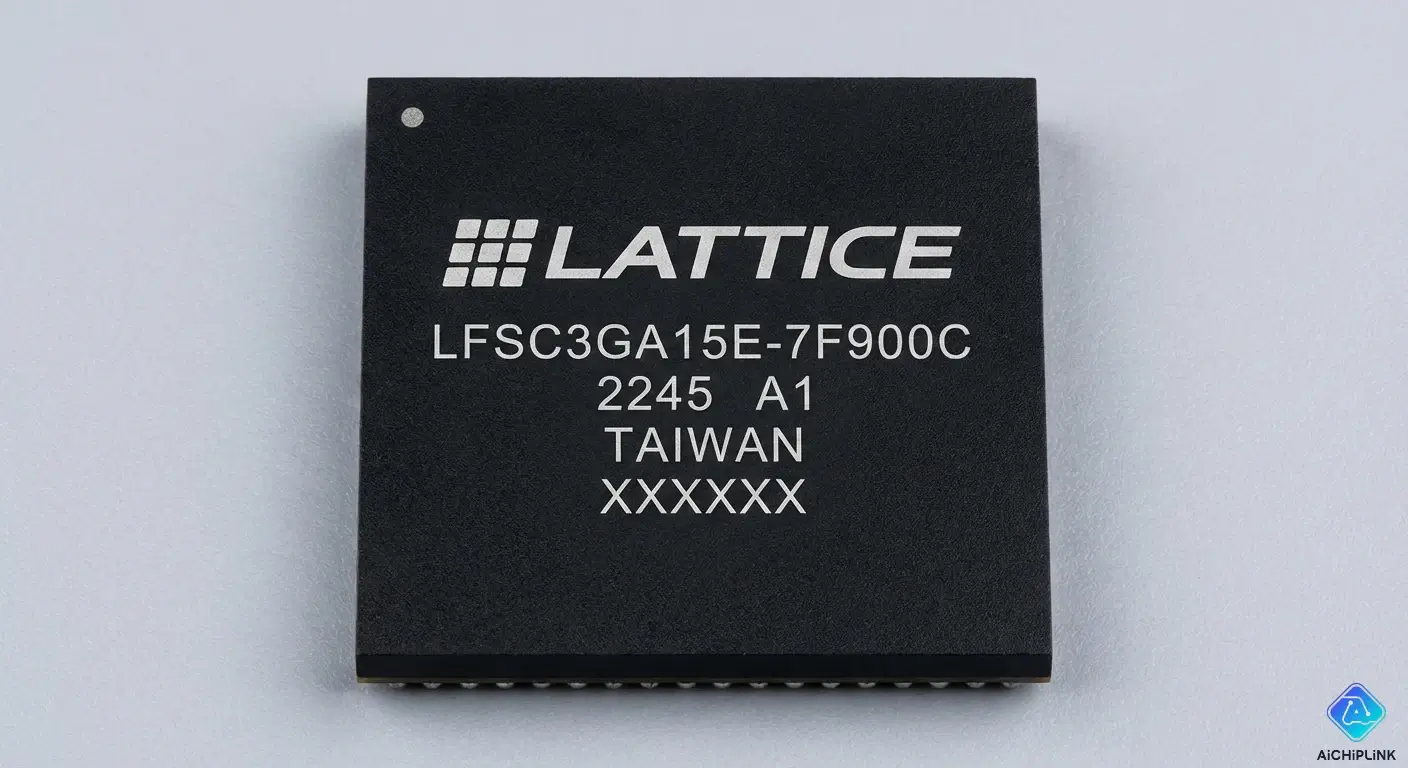

LFSC3GA15E-7F900C Guide: LatticeSC High-Performance SERDES FPGA

In the era of specialized connectivity, the LatticeSC™ (System Chip) family stood out as a unique bridge between pure FPGAs and ASICs. While modern FPGAs chase massive logic counts, the LFSC3GA15E-7F900C was built for one specific purpose: Connectivity.

Featuring integrated 3.8 Gbps SERDES, PURESPEED™ I/O technology, and a robust 15K LUT fabric, this chip was the engine behind many telecom backhaul and high-speed video systems.

Although now classified as Obsolete/Legacy, it remains a critical component for maintaining specialized industrial and communications hardware. This guide decodes its specs, explains its architecture, and clarifies the common confusion between "SC" and "SCM" devices.

---

Table of Contents

• 1. Decoding the Part Number: What "LFSC3GA15E" Means
  • The Breakdown Matrix
  • The Critical "-7" Speed Grade
  • Price Analysis & Lifecycle Status
• 2. Architecture: The LatticeSC Platform
  • Integrated High-Speed SERDES
  • PURESPEED I/O Technology
• 3. LatticeSC vs. LatticeSCM: The MACO Difference
• 4. Applications & Legacy Maintenance
• 5. Conclusion

---

1. Decoding the Part Number: What "LFSC3GA15E" Means

Lattice part numbers are dense with technical data. Here is the breakdown for LFSC3GA15E-7F900C:

The Breakdown Matrix

Segment	Code	Meaning
Family	LFSC	LatticeSC (System Chip) FPGA Family.
Gen	3GA	3rd Generation / 3G SERDES Architecture.
Logic	15	15.2 K Look-Up Tables (LUTs).
Voltage	E	1.2V Core Voltage (Standard).
Speed	-7	Speed Grade 7 (High Performance). Faster than -5/-6.
Package	F900	900-ball fpBGA (Fine-Pitch Ball Grid Array).
Temp	C	Commercial Temperature (0°C to +85°C).

The Critical "-7" Speed Grade

The -7 indicates this is a high-performance bin.

• Why it matters: For designs utilizing the full 3.8 Gbps bandwidth of the SERDES channels or pushing the 700 MHz global clock limit, this speed grade is often mandatory.
• Warning: Replacing it with a slower -5 or -6 part during repairs may cause timing violations and link instability, leading to CRC errors in data transmission.

Price Analysis & Lifecycle Status

This device is Obsolete.

Procurement Tip: Sourcing requires navigating the broker market as authorized distributors no longer stock it. [Check Stock for LFSC3GA15E-7F900C at Aichiplink] to find verified legacy inventory.

---

2. Architecture: The LatticeSC Platform

The LatticeSC family was designed to handle data in motion, differentiating it from "Logic-only" FPGAs.

Integrated High-Speed SERDES

The "SC" stands for System Chip, highlighting the integrated quad-channel SERDES blocks.

• Speed: Supports data rates from 600 Mbps up to 3.8 Gbps.
• Protocols: Built-in Physical Coding Sublayer (PCS) blocks offer hardware support for PCI Express, Gigabit Ethernet, Fibre Channel, and XAUI.
• Benefit: Unlike soft-core SERDES implementations, these hardened blocks consume less power and logic, leaving the 15K LUTs free for your custom application.

PURESPEED I/O Technology

Apart from serial links, the parallel I/O is equally robust.

• Memory Support: Dedicated circuitry to support DDR2 and QDRII memory interfaces at speeds up to 400 MHz (800 Mbps data rate).
• Source Synchronous: Adaptive Input Logic (AIL) automatically aligns data to clocks, simplifying board design complexities.

---

3. LatticeSC vs. LatticeSCM: The MACO Difference

Engineers often confuse the LFSC (this part) with the LFSCM. It is crucial to check the part number on your BOM.

Feature	LFSC (This Chip)	LFSCM (M-Series)
Name	LatticeSC	LatticeSCM
Fabric	FPGA LUTs + SERDES	FPGA LUTs + SERDES + MACO
MACO?	No	Yes (Masked Array for Cost Optimization)
Flexibility	Full Fabric Programmability	Hardened IP Blocks for specific functions
Use Case	General Logic + Comms	Logic + Heavy Bus Interfaces (SPI4.2, Memory)

What is MACO? Masked Array for Cost Optimization. The "M" series chips contain hardened, structured ASIC blocks (like pre-built memory controllers or packet interfaces) that don't use up LUTs.

Verdict: The LFSC3GA15E is the pure FPGA version. It does not have the pre-hardened MACO blocks.

---

4. Applications & Legacy Maintenance

The LFSC3GA15E-7F900C is often found in long-lifecycle equipment:

1. Telecom Backhaul: Translating legacy SONET/SDH frames to Ethernet packets using the SERDES blocks.
2. Medical Imaging: High-speed data capture from sensors via LVDS pairs.
3. Video Broadcasting: Bridging proprietary video buses to PCIe interfaces.

Software Support: To maintain or modify designs for this chip, you need:

• Lattice Diamond (Check specific version compatibility for SC family).
• ispLEVER Classic: For older legacy designs.

5. Conclusion

The Lattice LFSC3GA15E-7F900C is a testament to the "Connectivity First" FPGA philosophy. While it has been superseded by the ECP5 and Certus-NX families, its combination of 15K logic cells and robust 3.8G SERDES makes it irreplaceable in many legacy systems.

Sourcing Legacy Lattice FPGAs Need to repair a critical system? Visit Aichiplink.com to search for LFSC3GA15E-7F900C and other obsolete Lattice components.

Search LatticeSC Stock Now
