Have you ever worried about the invisible dangers lurking in the air, like a silent carbon monoxide leak or the slow build-up of harmful pollutants? You're not alone. The air we breathe is critical, but often, its quality is taken for granted until it's too late. In fact, a 2023 report highlighted that poor air quality is a top-five risk factor for human health globally. [cite_start]This is where the gas sensor becomes an unsung hero[cite: 1]. This essential electronic component acts as our sentinel, detecting and measuring the concentration of specific gases in the environment. This article provides a complete roadmap to understanding gas sensor technology, from its fundamental working principles to navigating the diverse types available, so you can make informed decisions for your safety, industrial, or environmental projects.
1.0 How Does a Gas Sensor Work? Unveiling the Core Technology
Before you can choose the right sensor, it's crucial to understand what's happening under the hood. A gas sensor is much like a canary in a coal mine, but far more sophisticated. It's designed to provide a measurable response when it comes into contact with its target gas, converting a chemical reality into an electrical signal.
1.1 What is a Gas Sensor, Exactly?
At its core, a gas sensor is an electronic device that detects the presence and concentration of gases in a specific area. Think of it as an electronic nose. When gas particles interact with the sensing material on the device, it triggers a change in its physical or electrical properties—like resistance or current. This change is then processed to produce an output signal, which can be used to sound an alarm, shut down a system, or provide a data reading. These devices are the foundation of everything from home carbon monoxide detectors to complex industrial safety systems.

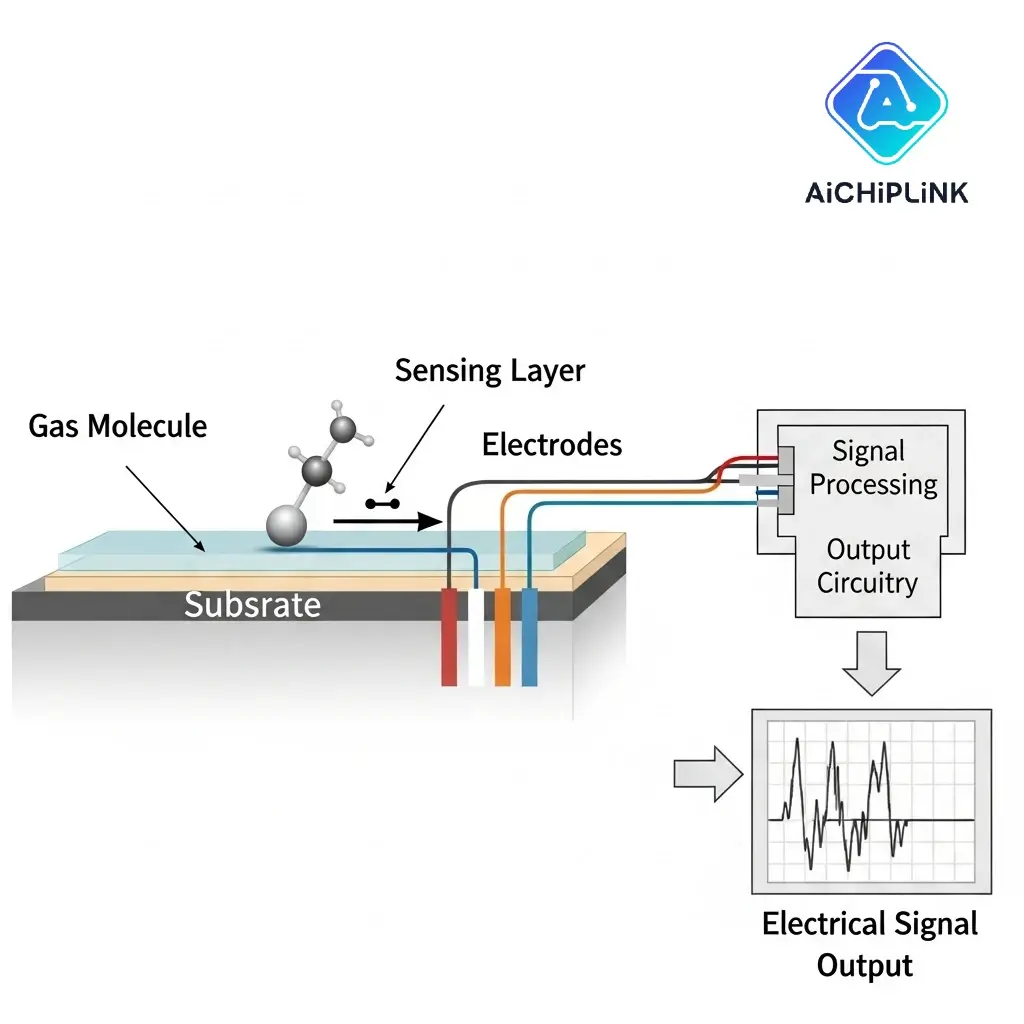

1.2 The Core Gas Sensor Working Principle Explained
While different sensor types operate on unique principles, the general process follows a consistent pattern:
- Adsorption: Gas molecules from the ambient air physically stick to the surface of the sensor's sensing material.
- Interaction: A chemical reaction or a physical change occurs between the gas molecules and the sensing material. For example, a target gas might cause the sensing material's electrical resistance to increase or decrease.
- Transduction: This chemical or physical change is converted into a measurable electrical signal. The magnitude of this signal is typically proportional to the concentration of the target gas.
- Signal Processing: The raw electrical signal is amplified, filtered, and converted into a human-readable format, such as a parts-per-million (PPM) display or a simple alarm state (on/off).
2.0 Exploring the Main Types of Gas Sensors
The world of gas sensors is incredibly diverse, with different technologies optimized for specific gases, environments, and applications. Understanding the three primary types—electrochemical, semiconductor, and infrared—is the first step toward selecting the right component. Each has distinct advantages and trade-offs in terms of sensitivity, lifespan, and cost.
"Choosing the right sensor technology is less about finding the 'best' one and more about finding the one that is 'best-suited' for the specific gas and environment you need to monitor."
2.1 Electrochemical Gas Sensors
These are among the most common sensors for detecting toxic gases like carbon monoxide (CO) and hydrogen sulfide (H₂S). They operate like a battery: when the target gas interacts with an electrode, it generates a small electrical current. The amount of current produced is directly proportional to the gas concentration. They are highly sensitive and consume very little power, making them ideal for portable devices.
2.2 Semiconductor Gas Sensors
Also known as metal oxide semiconductor (MOS) sensors, these devices work by detecting changes in the electrical resistance of a heated semiconductor material. When a target gas is present, it reacts with the oxygen on the semiconductor's surface, altering its resistance. They are highly sensitive to combustible gases (like methane and propane) and various volatile organic compounds (VOCs), but can be less selective than other types.
2.3 Infrared (IR) Gas Sensors
IR sensors are more complex, operating on the principle of light absorption. An IR emitter sends a beam of light through the air to a detector. If a target gas (like carbon dioxide or methane) is present, its molecules will absorb a specific wavelength of the infrared light. The detector measures the reduction in light intensity to determine the gas concentration. They are highly reliable and long-lasting but are often more expensive.
For a clearer view, here is a comparison of these key sensor types:
| Feature | Electrochemical | Semiconductor (MOS) | Infrared (IR) |
|---|---|---|---|
| Primary Target Gases | Toxic Gases (CO, H₂S, NO₂) | Combustible Gases, VOCs | Hydrocarbons (Methane), CO₂ |
| Sensitivity | Very High (PPM, PPB) | High | Moderate to High |
| Power Consumption | Very Low | High (requires heater) | Moderate |
| Typical Lifespan | 1-3 Years | 5-10 Years | 10+ Years |
| Selectivity | High | Low to Moderate | Very High |
2.4 Common Gases Detected by Sensors
A vast array of gases can be detected, but some of the most common targets include:
- Combustible Gases: Methane (CH₄), Propane (C₃H₈), Butane (C₄H₁₀)
- Toxic Gases: Carbon Monoxide (CO), Hydrogen Sulfide (H₂S), Chlorine (Cl₂), Ammonia (NH₃)
- Asphyxiants: Carbon Dioxide (CO₂), Nitrogen (N₂)
- Volatile Organic Compounds (VOCs): Acetone, Benzene, Formaldehyde
3.0 Critical Gas Sensor Applications Across Industries
Gas sensors are vital components that safeguard lives, protect the environment, and optimize industrial processes. Their applications are incredibly broad, spanning from the device in your home to sophisticated systems in large-scale manufacturing plants.
3.1 Gas Sensors for Home Safety (CO, Smoke, Natural Gas)
This is perhaps the most familiar application for most people. Simple, low-cost sensors are the core of residential carbon monoxide detectors, smoke alarms, and natural gas leak alarms. These devices provide an essential early warning system against immediate, life-threatening hazards.
3.2 Industrial Gas Detection Systems
In industrial settings like oil and gas refineries, chemical plants, and wastewater treatment facilities, the stakes are much higher. Here, gas detection systems are crucial for:
- Worker Safety: Monitoring for toxic gas exposure in confined spaces.
- Leak Detection: Identifying flammable gas leaks before they can cause an explosion.
- Process Control: Ensuring the correct gas mixtures are used in manufacturing processes. [cite_start]A full range of industrial sensors is needed to meet these demanding requirements[cite: 71].
3.3 Air Quality Monitoring Sensors
Environmental protection agencies and smart city initiatives rely heavily on gas sensors to monitor air quality. Sensor networks track pollutants like nitrogen oxides (NOx), sulfur dioxide (SO₂), and ozone (O₃), providing the data needed to understand and mitigate the health impacts of pollution. This data is essential for public health advisories and environmental policy, as explained by the Environmental Protection Agency (EPA).
3.4 Specialized Use Case: Gas Sensors for CO2
Carbon dioxide (CO₂) sensors have a unique set of applications. In addition to being a greenhouse gas, CO₂ levels are a key indicator of indoor air quality and ventilation. High indoor CO₂ levels can lead to drowsiness and loss of concentration. Therefore, these sensors are critical in:
- HVAC Systems: Controlling ventilation to improve air quality and energy efficiency.
- Agriculture: Monitoring CO₂ levels in greenhouses to optimize plant growth.
- Food & Beverage: Ensuring proper carbonation levels in drinks.
4.0 A Practical Guide to Selecting the Right Gas Sensor
With a clear understanding of the types and applications, you can now focus on the selection process. Choosing the wrong sensor can lead to inaccurate readings, false alarms, or even a catastrophic failure to detect a hazard. To make the right choice, you need to balance performance requirements with project constraints.
4.1 Key Factors to Consider (Sensitivity, Range, Cost)
When evaluating different gas sensor models, focus on these critical parameters:
- Target Gas: This is the most obvious factor. Which specific gas do you need to detect?
- Sensitivity and Range: What is the lowest concentration you need to detect (sensitivity) and what is the highest (range)? This is often measured in parts per million (PPM) or percent by volume (%VOL).
- Accuracy and Precision: How close are the sensor's readings to the true value, and how repeatable are those readings?
- Response Time: How quickly does the sensor react to the presence of the gas? This is critical for life-safety applications.
- Operating Environment: Consider the temperature, humidity, and pressure where the sensor will operate. Also, be aware of other gases that might be present and could cause cross-sensitivity or interference.
- Lifespan and Cost: Balance the upfront cost of the sensor with its expected operational lifespan and any maintenance requirements. [cite_start]Explore our diverse inventory of gas sensing solutions to find a component that matches your specific project parameters[cite: 71].

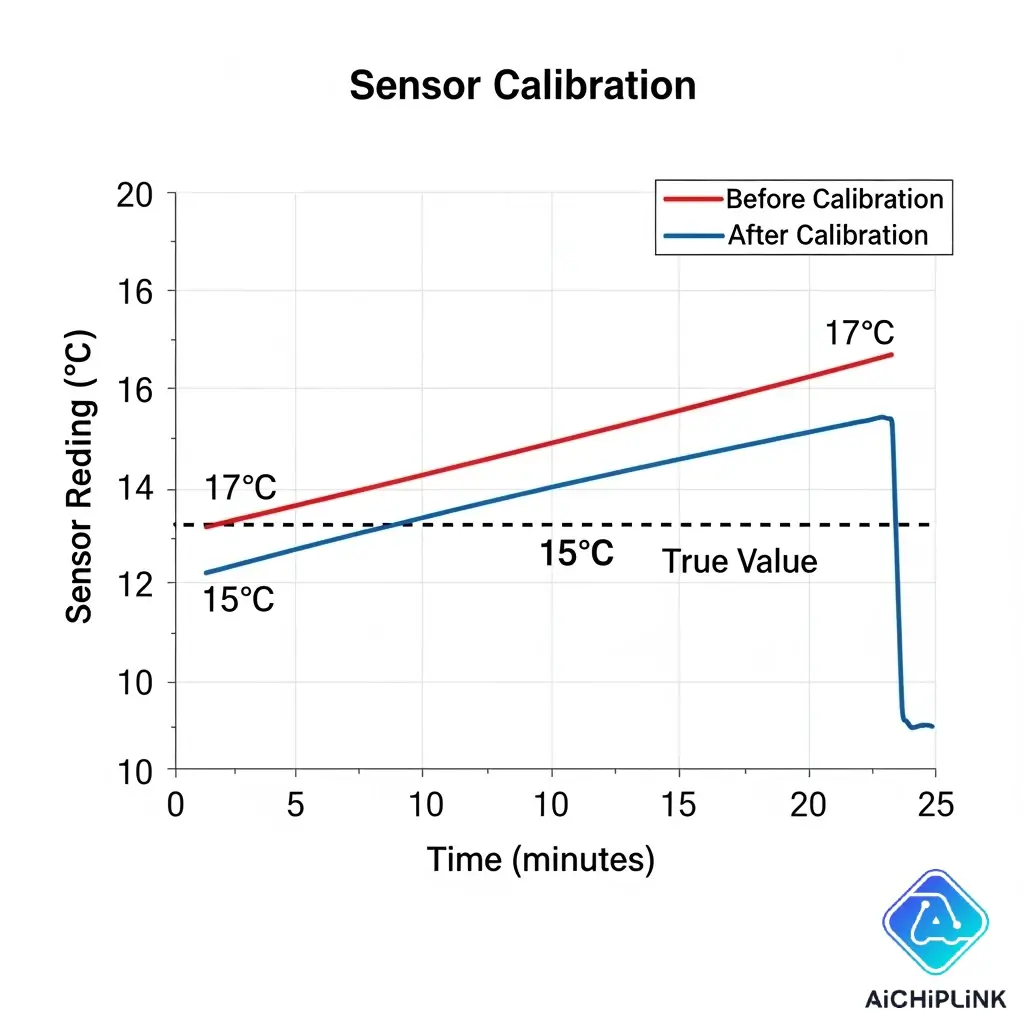

4.2 Step-by-Step: How to Calibrate a Gas Sensor
Calibration is the process of adjusting a sensor's readings to ensure they are accurate. It is a vital maintenance step for nearly all gas sensors, especially those used in safety systems.
- Gather Equipment: You will need the sensor, a source of "zero gas" (air free of the target gas, like pure nitrogen), and a "span gas" (a gas with a certified, known concentration of your target gas).
- Perform a Zero Calibration: Expose the sensor to the zero gas. In this clean air environment, adjust the sensor’s output to read zero. This sets the baseline.
- Perform a Span Calibration: Now, expose the sensor to the span gas. Adjust the sensor's output until its reading matches the certified concentration of the span gas.
- Verify: After calibration, re-test with the zero and span gases to confirm that the sensor is reading accurately across its measurement range.
In conclusion, the humble gas sensor is a cornerstone of modern safety, industrial, and environmental technology. By understanding the fundamental working principles, the distinct advantages of different sensor types, and the key criteria for selection, you are now equipped to integrate this critical technology into your projects effectively. Whether you are designing a life-saving home safety device or a sophisticated industrial monitoring system, choosing the right sensor is the first step toward a safer and more controlled environment. [cite_start]The future will see these sensors become even smarter, with greater IoT integration and AI-powered data analysis, making our world safer and more transparent than ever before[cite: 95].
Ready to find the perfect sensing solution for your needs? [cite_start]Explore the comprehensive catalog of high-quality gas sensors at aichiplink.com today and take the next step in your project! [cite: 96]
Written by Jack Elliott from AIChipLink.
AIChipLink, one of the fastest-growing global independent electronic components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.
We mainly source and distribute integrated circuit (IC) products of brands such as Broadcom, Microchip, Texas Instruments, Infineon, NXP, Analog Devices, Qualcomm, Intel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.
Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
Frequently Asked Questions
How often does a gas sensor need to be replaced?
The lifespan of a gas sensor varies significantly by type. Electrochemical sensors typically last 1-3 years, while semiconductor sensors can last 5-10 years and infrared sensors can last over 10 years. Lifespan is also affected by environmental conditions and exposure to high gas concentrations.
What is the difference between a gas detector and a gas sensor?
A gas sensor is the core component that performs the actual detection. A gas detector is the complete device built around the sensor, which includes circuitry, a power source, an alarm (like a buzzer or light), and a display/housing.
Can a gas sensor detect multiple gases?
Some sensors have cross-sensitivity and will react to gases other than their primary target. While this is sometimes a drawback, certain broadband sensors are intentionally designed to detect a wide range of gases, such as VOCs. However, for specific gas identification, a highly selective sensor is required.
Does humidity affect gas sensor readings?
Yes, high humidity can affect the accuracy and lifespan of many sensor types, particularly electrochemical and semiconductor sensors. It's important to check the manufacturer's specifications for the recommended operating humidity range.
What does PPM mean in gas detection?
PPM stands for "Parts Per Million." It's a unit of concentration. For example, if a carbon monoxide sensor reads 100 PPM, it means that for every one million particles of air, 100 of them are carbon monoxide molecules.
