Introduction

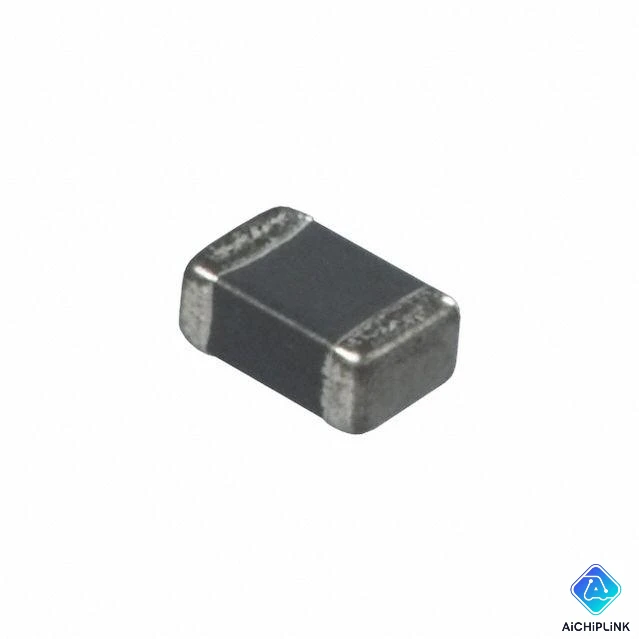

The BLM18KG121TN1D is a chip ferrite bead manufactured by Murata Manufacturing in standard 0603 package (1.6mm × 0.8mm), providing 120Ω impedance at 100 MHz for effective EMI suppression in power supply filtering, signal conditioning, and noise reduction applications across consumer electronics, industrial equipment, and automotive systems.
This ferrite bead uses nickel-zinc ferrite material optimized for high-frequency noise attenuation (10 MHz to 1 GHz) with 1A rated current and low DC resistance (0.15Ω maximum), enabling reliable electromagnetic interference suppression while maintaining signal integrity and minimal power loss.
Technical Overview
Core Specifications
| Parameter | Specification |
|---|---|
| Impedance @ 100 MHz | 120Ω ±25% |
| DC Resistance | 0.15Ω max |
| Rated Current | 1A |
| Package | 0603 (1.6×0.8×0.8mm) |
| Operating Temp | -55°C to +125°C |
| Material | NiZn ferrite |
Part Number Decoder
BLM18KG121TN1D:
- BLM = Chip ferrite bead
- 18 = 0603 size code
- KG = Impedance grade
- 121 = 120Ω @ 100 MHz
- TN1D = Tolerance/packaging
Complete Specifications
Electrical Performance
| Parameter | Value |
|---|---|
| Impedance @ 100 MHz | 120Ω (90-150Ω) |
| DC Resistance | 0.15Ω max |
| Rated Current | 1A continuous |
| Saturation Current | ~2A (30% Z drop) |
Frequency Response
- 10 MHz: 3-4 dB attenuation
- 100 MHz: 6-8 dB (peak effectiveness)
- 300 MHz: 10-12 dB
- 1 GHz: 8-10 dB
EMI Suppression Applications
Power Supply Filtering
VCC ──┬─── BLM18KG121TN1D ───┬─── VCC_filtered
│ │
═╪═ 10μF ═╪═ 0.1μF
│ │
GND GND
Applications:
- Switching regulator output filtering
- Microcontroller power isolation
- USB VBUS noise suppression
- RF module power conditioning
Multi-Rail Isolation
Separating Power Domains:
- Digital circuits (1A)
- Analog circuits (500 mA)
- RF sections (300 mA)
Prevents crosstalk and improves signal integrity.
PCB Design Guidelines
Placement Rules
- Place near noise source
- Bulk capacitor before ferrite bead
- Bypass capacitor after ferrite bead
- Component spacing: <5mm
Footprint (0603)
- Pad dimensions: 0.8mm × 0.8mm
- Pad spacing: 0.8mm
- Solder mask clearance: 0.1mm
Thermal Considerations
At 1A continuous:
- Power dissipation: 150 mW
- Temperature rise: ~30°C
- Safe for continuous operation
Selection Guide
Murata BLM18 Family
| Part | Impedance | DCR | Current | Best For |
|---|---|---|---|---|
| BLM18KG101TN1D | 100Ω | 0.15Ω | 1A | Lower Z |
| BLM18KG121TN1D | 120Ω | 0.15Ω | 1A | Balanced |
| BLM18KG221TN1D | 220Ω | 0.35Ω | 700mA | Higher Z |
Package Comparison
| Size | Current | Best For |
|---|---|---|
| 0402 | 300 mA | Ultra-compact |
| 0603 | 1A | General purpose |
| 0805 | 2A | High current |
Conclusion
The BLM18KG121TN1D delivers proven 120Ω EMI suppression in industry-standard 0603 package with 1A current rating, making it ideal for mainstream power supply filtering, multi-rail isolation, and noise reduction applications. With low DC resistance (0.15Ω), wide frequency response, and reliable performance, it enables effective EMI/EMC compliance in compact designs.
Key Advantages:
✅ Standard 0603: Easy assembly, good thermal performance
✅ 1A Rating: Suitable for most digital/analog circuits
✅ Low DCR: 150 mV drop at rated current
✅ Proven Reliability: Industry-standard Murata quality
✅ Cost-Effective: Balanced performance and economics
Designing EMI-compliant systems? Visit AiChipLink.com for technical resources and EMC design consultation.
Written by Jack Elliott from AIChipLink.
AIChipLink, one of the fastest-growing global independent electronic components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.
We mainly source and distribute integrated circuit (IC) products of brands such as Broadcom, Microchip, Texas Instruments, Infineon, NXP, Analog Devices, Qualcomm, Intel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.
Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
Frequently Asked Questions
How much current can BLM18KG121TN1D handle?
BLM18KG121TN1D is rated for 1A continuous operation.** At rated current, power dissipation is 150 mW with ~30°C temperature rise. For high-ambient or enclosed designs, derate to 700-800 mA for reliability margin.
What is the voltage drop across BLM18KG121TN1D?
Voltage drop = I × DCR = 1A × 0.15Ω = 150 mV** at rated current. This minimal drop makes it suitable for power supply filtering where voltage regulation is critical.
Can BLM18KG121TN1D be used on signal lines?
Yes, but with caution.** The 120Ω impedance affects signal integrity on high-speed lines. Suitable for low-speed interfaces (I2C, UART) but not recommended for USB 2.0+, HDMI, or Gigabit Ethernet without careful analysis.
How does BLM18KG121TN1D compare to 0402 variant?
BLM18KG121TN1D (0603) offers 1A rating vs 300 mA for BLM15PX121SN1D (0402).** The larger package provides better thermal dissipation, easier assembly, and higher current capacity while maintaining similar impedance characteristics.
What is BLM18KG121TN1D used for?
The BLM18KG121TN1D provides EMI suppression in power supply filtering, power rail isolation, USB power conditioning, and signal line noise reduction for applications requiring 100-1000 MHz attenuation with 1A current capacity in standard 0603 package.
