Automotive MCU Selection Guide: How to Choose the Right Microcontroller

When you pick an Automotive MCU, you need to match it to your project. If you forget about real-time processing, safety rules, or saving power, your design might not work or could cost too much. Some engineers miss things like error-correcting code memory or multi-core setups, which help with hard jobs and safety. Use the checklist to remember safety, reliability, and cost when you choose.

Key Takeaways

• Decide what your project needs before picking an Automotive MCU. Think about how fast it should work, how safe it must be, how it connects, and how much money you can spend.

• Always look for safety rules and certificates like ISO 26262. This makes sure your design follows what the industry wants.

• Check how much processing power and memory your project needs. Different systems need different things.

• Use parametric selectors to compare microcontrollers fast. This helps you choose the best one for your project.

• Follow a checklist step by step when picking. This keeps your project neat and helps you not make mistakes.

Define Application Needs

Key Questions for Requirements

You should know what your system must do before picking an Automotive MCU. Ask yourself these questions:

• How much performance does your project need?

• Is safety very important in your design?

• What connections does your system need to support?

• Is your software and hardware simple or complex?

• Do you need to save power for electric or hybrid cars?

• What is your project budget?

The table below shows the main things that help you pick a microcontroller for cars:

Application Need	Description
Power Efficiency	Needed to make cars go farther and use less energy. Every bit of power matters for performance.
Safety Compliance	Must follow rules like ISO 26262. This keeps the system reliable in tough conditions.
Cost Optimization	Looks at the total cost, including making and keeping parts for a long time.

Tip: Write your answers to these questions. This helps you remember important needs later.

Application Types and MCU Impact

Different car systems need different microcontrollers. For example, a powertrain controller needs fast processing and strong safety. An infotainment system needs good connections and graphics. Advanced driver-assistance systems (ADAS) need high performance and advanced safety.

The table below compares common automotive protocols in performance, safety, connectivity, and complexity:

Protocol	Performance	Safety	Connectivity	Complexity
LIN	Low	Low	Basic	Low
CAN	Moderate	High	Reliable	Moderate
FlexRay	High	Very High	Advanced	High

Matching your application to the right protocol helps your Automotive MCU fit your needs. Always check if your system needs simple or advanced features. This step helps you pick the best microcontroller for your project.

Automotive MCU Selection Criteria

Picking the right Automotive MCU means checking many features. You want your design to work well. It should be safe and last a long time. This section shows what to look for before you choose.

Processing Power & Memory

Processing power and memory must fit your project. Powertrain systems need fast memory. They must work in hot or cold places. Infotainment systems need lots of storage for music and video. ADAS needs quick data handling and big memory for sensor data.

Application Domain	Typical Memory Requirements
Powertrain & EV Systems	Operating temperature: -40 °C to +125 °CHigh write endurance for battery managementLow-latency memory
Infotainment & Cockpit	Fast boot and system responseLarge-capacity NAND/UFS (64 GB to 512 GB)
ADAS	Bandwidth: >100 GB/sLatency: <50 nsCapacity: 256 GB ~ 1 TB+

Tip: Make sure your Automotive MCU can handle the speed and memory your system needs.

Functional Safety & Compliance

Safety is very important in cars. Pick an Automotive MCU with safety features. It should follow rules like ISO 26262. These features help your system stay safe if something goes wrong.

• Redundancy keeps your system working if one part fails.

• Watchdog timers check if the system is running right.

• Error detection and correction fix data mistakes.

• Safe state management lets your system shut down safely.

• Fault tolerance means your system can keep working, even with some problems.

Here are some common certifications you should know:

Certification	Description
ISO 26262	Sets safety rules for cars and ranks risk with ASIL levels.
AEC-Q100	Tests chips for reliability with 41 tests in 7 groups.
AEC-Q101	Checks reliability for discrete semiconductors.
AEC-Q102	Tests LEDs and other optoelectronic parts.
AEC-Q103	Checks MEMS devices.
AEC-Q104	Tests multichip modules.
AEC-Q200	Checks passive parts like resistors and capacitors.
ISO 16750	Makes sure parts survive real-world car conditions.

Reliability & Qualification

Your Automotive MCU should last for years. It must work in tough places. Look for chips that pass strict tests. These tests show the chip can handle heat, cold, shaking, and more.

Standard	Description
AEC-Q100	Checks if chips can survive stress and tough car conditions.
AEC-Q101	Tests discrete parts for stress and reliability.
AEC-Q200	Makes sure passive parts can handle car environments.

Communication Interfaces

Your Automotive MCU must talk to other parts in the car. Check which interfaces your system needs. Some common ones are:

Communication Interface	Description
UART	Used for simple serial communication.
LIN-UART	Combines LIN and UART for basic car networks.
I2C	Connects many devices with just two wires.
SPI	Sends data fast over short distances.
Frequency Synchronous Serial	Moves data in sync for special uses.

• SPI is good for fast data.

• I2C connects many small devices.

• UART is simple and used in many car systems.

Think about CAN, LIN, and Ethernet too. These need special hardware and software. For example, CAN must handle noise and power problems. The software must manage errors and keep the network running.

Security Features

Modern cars connect to the internet and other devices. You need strong security in your Automotive MCU. Look for these features:

Security Feature	Description
ISO 26262 Compliance	Makes sure the system is safe.
ISO/SAE 21434 Compliance	Protects against cyber attacks.
Secure interfaces	Uses encryption and passwords to keep data safe.
Secure gateway	Acts like a firewall for the car’s network.
Secure network	Stops hackers from changing or stealing data.
Secure processors	Keeps software safe and allows secure updates.
Secure car access	Stops thieves with smart keys and immobilizers.
HSM	Handles secret codes and encryption.
TPM	Stores keys safely and checks if the system is trusted.

You want your Automotive MCU to stop hackers. Some chips use FD-SOI technology. This makes it harder for hackers to attack the chip.

Power & Efficiency

Saving power is important for electric and hybrid cars. Your Automotive MCU should help manage the battery. It should control the motor and keep the car cool. It must make quick decisions to save energy.

Functionality	Description
Powertrain Management	Controls energy between the motor and battery.
Thermal Management	Keeps car parts at the right temperature.
Battery Management	Charges and protects the battery.
Real-time Decision Making	Uses sensors to make fast choices for better efficiency.

• SiC power devices can make your system more efficient and reliable.

Physical Space Constraints

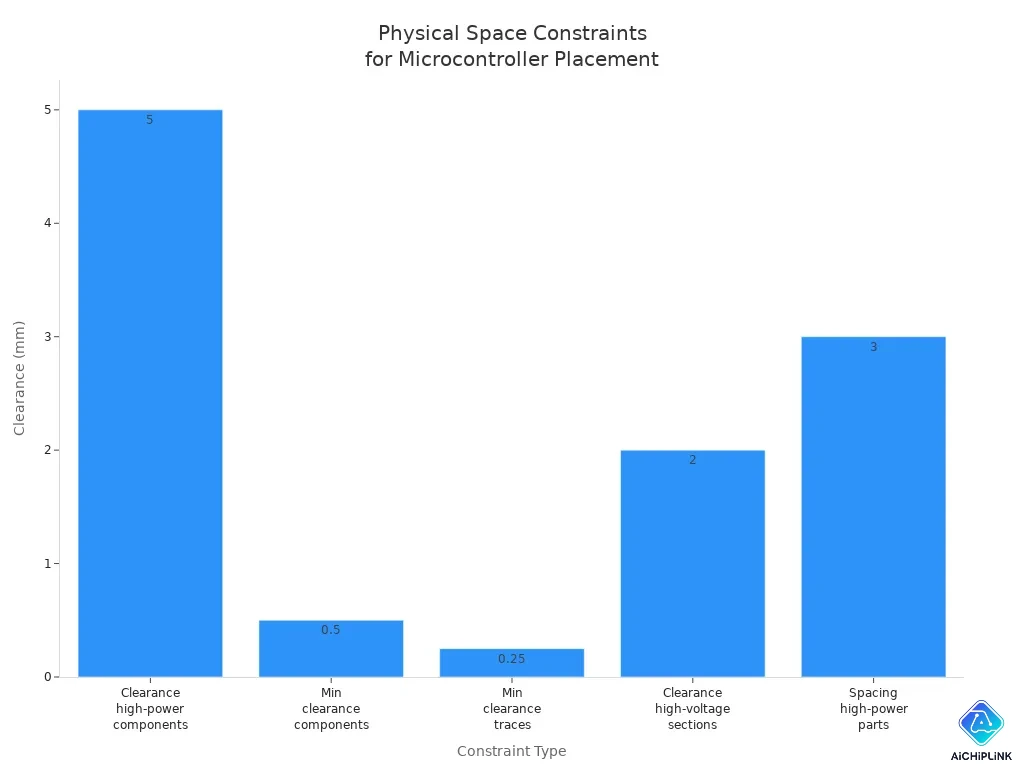

Space is tight inside a car’s control unit. Check if your Automotive MCU fits. Here are some common space rules:

Constraint Type	Measurement
Clearance around high-power components	At least 5 mm
Minimum clearance between components	0.5 mm
Minimum clearance between traces	0.25 mm
Clearance for high-voltage sections	2 mm or more
Spacing around high-power parts	At least 3 mm

Note: Always check the size and layout before you pick your Automotive MCU.

Scalability & Future-Proofing

You want your design to last for many years. Pick an Automotive MCU that can grow with new features and standards. Look for these features:

Feature	Description
Longevity	Some chips, like SPC58, can last 20 years in cars.
Scalability	Choose a chip family with many options for different needs.
Advanced Memory	Chips with Phase Change Memory (PCM) work fast and store lots of data.
Software Support	Support for software-defined vehicles makes updates and new features easier.
Increased Storage	Chips with xMemory can handle more data and run faster.
Performance	Chips like Stellar with xMemory give top speed without taking up more space or costing more.

Tip: A future-proof Automotive MCU saves you time and money when car technology changes.

Comparing Automotive MCU Options

When you pick a microcontroller for your car, you need to do more than just look at features. You should read datasheets, check if the vendor helps you, think about the price, and use smart tools to help you choose. This part will show you how to make a good choice.

Reading Datasheets & Specs

First, read the datasheet for each microcontroller. Datasheets tell you what the chip can do. They show how fast it works and how much memory it has. You can see what safety features it supports. Look for things like temperature range, voltage, and what communication protocols it uses. Check the block diagrams and pin layouts. These help you know if the chip fits your design.

You should also look for special features. These include error correction, watchdog timers, and built-in security. Some datasheets show test results for safety and reliability. If you see words like "ASIL-D ready" or "AEC-Q100 qualified," the chip meets tough car rules.

Tip: Make a checklist of the most important specs for your project. Compare each chip side by side to see which one matches your needs best.

Vendor Support & Tools

Vendor support can help you a lot. Good support means you get help with software and hardware. You can also get help with debugging. Many vendors give you development kits, sample code, and online forums. These things help you fix problems faster.

You also need good tools. You need tools for logic analysis, run control, and debugging. Some chips have memory inside, so it is hard to see what is happening. Tool vendors now have new ways to help you trace your program, set breakpoints, and manage memory.

Need/Challenge	Description
Logic Analysis	Lets you trace program flow and see how your code interacts with real-world signals.
Run Control	Allows you to check and change memory or registers, and use breakpoints for easier debugging.
Visibility Issues	Integrated memory can hide data flow, so you need tools that work with new chip designs.

Note: Strong vendor support and good tools save you time and help you avoid mistakes.

BOM Cost & Total Ownership

The microcontroller you pick changes the total cost of your project. The bill of materials (BOM) cost is the price for each part. You also need to think about the total cost of ownership. This means the cost to design, test, and keep the system working for years.

• Using new microcontrollers with old systems can be hard and cost more.

• Old systems may use special protocols or hardware, so you spend more time and money on research and development.

• You may need extra testing and more time to make sure everything works together.

If you pick a chip that fits your system, you save money and finish faster.

Using Parametric Selectors

Parametric selectors are online tools that help you compare microcontrollers fast. You can filter chips by speed, memory, safety features, and more. Many vendors have these tools on their websites. Some selectors let you compare different brands and models in one place. Community forums also give you advice from other engineers.

Feature	Description
Vendor Selectors	Tools from manufacturers that let you filter chips by technical specs.
Parametric Search	Lets you compare many brands and models side by side.
Community Forums	Places where you can ask questions and get advice from other engineers.

Tip: Use parametric selectors to narrow down your choices before you dive into datasheets.

If you follow these steps, you can compare your choices and pick the best Automotive MCU for your project. You will save time, avoid mistakes, and build a system that works well for a long time.

Common Selection Mistakes

Over/Under-Specifying

Some people think picking the strongest microcontroller fixes everything. But this can cause new problems. If you choose too many features, your project costs more. It also gets harder to build and manage. If you pick too few features, your system may run slow. It might not meet safety needs.

• Picking the right features is important for car projects.

• Extra features raise costs and make things harder.

• Not enough features can mean slow systems or missed goals.

• Hardware and software teams should work together to avoid mistakes.

Note: In electric cars, microcontrollers control power and batteries. For ADAS, they handle safety tasks in real time. The right microcontroller helps your car work better and safer.

Ignoring Certification

You must follow certification rules when picking a microcontroller. If you skip this, you can face big trouble. Your product might not get approved. This can delay your launch. Some places, like China, have strict security rules for hardware. If you ignore these, your company’s reputation can suffer. Your product may not be allowed in the market.

Tip: Always check for certifications like ISO 26262 and AEC-Q100 before you choose.

Overlooking Availability

You need to make sure the microcontroller is easy to get. Modern cars use sensors and AI. These need strong chips. Sometimes, it is hard to find the right parts. If you pick a chip that is rare, your project can be delayed. Costs may go up.

• Complex cars need better microcontrollers.

• Design and setup get harder, which can slow your project.

• Expensive chips make it tough to compete in markets where price matters.

Remember: Always check the supply chain and how long it takes to get your microcontroller.

Step-by-Step Checklist

This checklist helps you pick the right automotive microcontroller. Each step keeps your project on track and helps you avoid mistakes.

1. List Required Hardware Interfaces
   Write down all the interfaces your system needs. Include things like CAN, LIN, UART, SPI, and I2C. This helps you match the microcontroller to your car’s needs.

2. Examine Software Architecture
   Look at your software plan. Decide if you need real-time processing or multitasking. Think about advanced safety features too. This helps you choose a microcontroller that fits your software.

3. Select the Architecture
   Pick the type of microcontroller you need. Decide if you want single-core, multi-core, or special cores for safety.

4. Identify Memory Needs
   Figure out how much RAM and storage you need. Think about sensor data, logs, and updates. Write these numbers down so you do not forget.

5. Start Searching for Microcontrollers
   Use online tools to find chips that fit your needs. Filter by speed, memory, interfaces, and safety features.

6. Examine Costs and Power Constraints
   Check the price for each microcontroller. Look at how much power it uses. Make sure it fits your budget and energy goals.

7. Check Part Availability
   Make sure the microcontroller is easy to buy. Ask vendors about how long it takes to get the part.

8. Select a Development Kit
   Pick a development kit that works with your microcontroller. This kit helps you test features and start building faster.

9. Investigate Compilers and Tools
   Make sure you have the right compilers and debuggers. Good tools help you build and test your system quickly.

10. Start Experimenting
    Begin testing your microcontroller with real hardware and software. Try out features and check for problems early.

Tip: Keep this checklist close for every car project. Use it to review your choices and make sure you do not miss any steps.

You can pick the best automotive MCU if you follow steps. Begin by thinking about what your project needs. Look at each thing you must check before choosing. Compare different microcontrollers and try not to make mistakes. Use the checklist for every project you do. If you follow these steps, your system will be safer and work better.

Technology changes a lot. Check your choices often so you do not fall behind.
