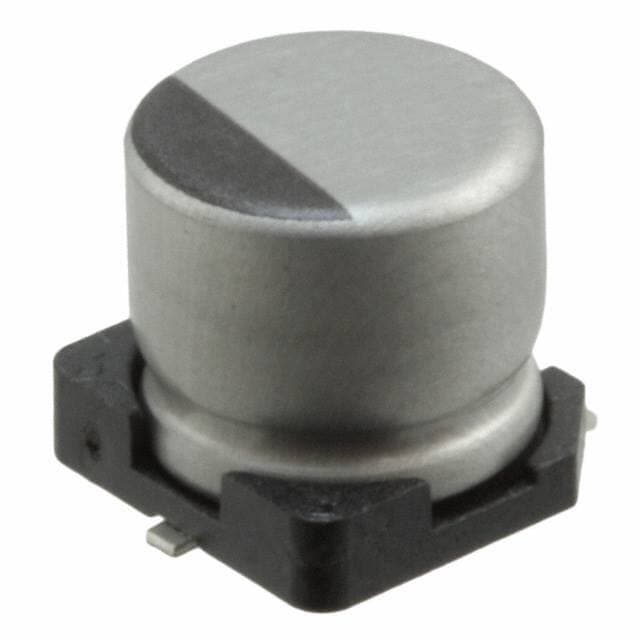

NICHICON UUT1C470MCL1GS

Manufacturer No:

UUT1C470MCL1GS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UUT 47?F Capacitor ±20% Tape & Reel (TR) Surface Mount 50mA 0.248Dia 6.30mm -55°C~105°C Polar 2.2mm Radial, Can - SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UUT1C470MCL1GS information

NICHICON UUT1C470MCL1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UUT1C470MCL1GS.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Terminal Shape
FLAT

Dielectric Material
Aluminium

Surface Mount Land Size
0.260Lx0.260W 6.60mmx6.60mm

Operating Temperature
-55°C~105°C

Packaging
Tape & Reel (TR)

Series
UUT

Published
2005

Size / Dimension
0.248Dia 6.30mm

Tolerance
±20%

JESD-609 Code
e6

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
SMD/SMT

ECCN Code
EAR99

Terminal Finish
Tin/Bismuth (Sn/Bi)

Applications
General Purpose

HTS Code
8532.22.00

Voltage - Rated DC
16V

Voltage - Rated AC
16V

Lead Pitch
2.2mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Diameter
800 ?m

Size Code
2626

Voltage
16V

Lifetime @ Temp
2000 Hrs @ 105°C

Leakage Current
3?A

Ripple Current
50mA

Polarization
Polar

Life (Hours)
2000 hours

Tan Delta
0.2

Ripple Current @ Low Frequency
50mA @ 120Hz

Ripple Current @ High Frequency
75mA @ 10kHz

Dissipation Factor
0.2 %

Ripple Current (AC)
50mA

Diameter
6.3mm

Height
5.8mm

Height Seated (Max)
0.240 6.10mm

Length
7mm

Width
6.6mm

REACH SVHC
No SVHC

Download datasheets and manufacturer documentation for NICHICON UUT1C470MCL1GS.

Datasheets:

nichicon-pcj1a391mcl1gs-datasheets-5842.pdf

nichicon-pcf1a151mcl6gs-datasheets-6222.pdf

UUT1C470MCL1GS Overview

A full charge has a ripple current of 75mA @ 10kHz volts.In the lowest charge, the ripple current is 50mA @ 120Hz.Sitting height should not exceed 0.240 6.10mm (Max).With 0.2 % dissipation factor, it operates normally.A voltage of 16V DC operates this capacitor.There is a voltage of 16V on this capacitor.Maintaining -55°C~105°C as the operating temperature will maximize efficiency.

UUT1C470MCL1GS Features

the ripple current is 75mA @ 10kHz.
the ripple current is 50mA @ 120Hz.
a dissipation factor of 0.2 %
voltage - Rated DC of 16V
an operating temperature of -55°C~105°C

UUT1C470MCL1GS Applications

There are a lot of Nichicon
UUT1C470MCL1GS applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
