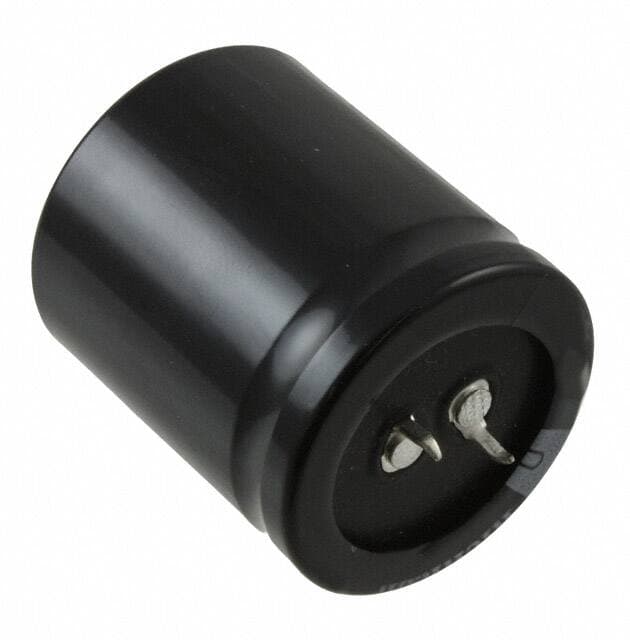

NICHICON LGN2X151MELC40

Manufacturer No:

LGN2X151MELC40

Manufacturer:

NICHICON

Package:

Radial, Can - Snap-In

Description:

LGN 150?F Capacitor ±20% Bulk Through Hole 830mA 1.378Dia 35.00mm -25°C~105°C Polar 10.0076mm Radial, Can - Snap-In

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LGN2X151MELC40 information

NICHICON LGN2X151MELC40 technical specifications, attributes, parameters and parts with similar specifications to NICHICON LGN2X151MELC40.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In

Operating Temperature
-25°C~105°C

Packaging
Bulk

Series
LGN

Published
2015

Size / Dimension
1.378Dia 35.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Applications
General Purpose

Voltage - Rated
600V

Capacitance
150?F

Lead Pitch
10.0076mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.394 10.00mm

Lifetime @ Temp
2000 Hrs @ 105°C

Ripple Current
830mA

Polarization
Polar

Life (Hours)
2000 hours

Height Seated (Max)
1.654 42.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON LGN2X151MELC40.

Datasheets:

nichicon-lgn2x221melc50-datasheets-2943.pdf

LGN2X151MELC40 Overview

As far as the ripple current is concerned, it is 830mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 1.654 42.00mm.The operating temperature should be maintained at -25°C~105°C for high efficiency.

LGN2X151MELC40 Features

the ripple current is 830mA @ 120Hz.
an operating temperature of -25°C~105°C

LGN2X151MELC40 Applications

There are a lot of Nichicon
LGN2X151MELC40 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
