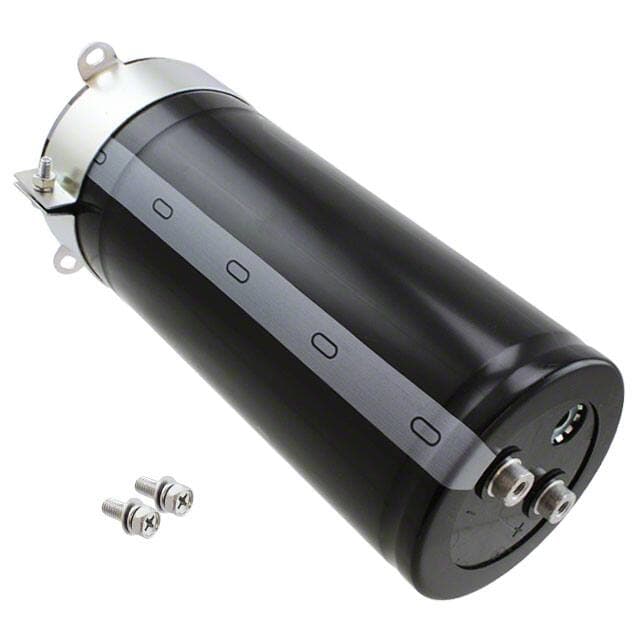

NICHICON LNX2G822MSEH
NICHICON LNX2G822MSEH

NICHICON LNX2G822MSEH

Manufacturer No:

LNX2G822MSEH

Manufacturer:

NICHICON

Package:

Radial, Can - Screw Terminals

Description:

LNX 8200?F Capacitor ±20% Bulk Chassis Mount 19.3A 3.000Dia 76.20mm -25°C~85°C Polar 31.8008mm Radial, Can - Screw Terminals

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LNX2G822MSEH information

NICHICON LNX2G822MSEH technical specifications, attributes, parameters and parts with similar specifications to NICHICON LNX2G822MSEH.

  • Type
  • Parameter
  • Factory Lead Time
  • 21 Weeks
  • Mount
  • Chassis Mount
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • Radial, Can - Screw Terminals
  • Terminal Shape
  • BINDING POST
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Bulk
  • Series
  • LNX
  • Published
  • 2012
  • Size / Dimension
  • 3.000Dia 76.20mm
  • Tolerance
  • ±20%
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Screw
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • Voltage - Rated
  • 400V
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 8200?F
  • Lead Pitch
  • 31.8008mm
  • Lead Spacing
  • 1.252 31.80mm
  • Rated (DC) Voltage (URdc)
  • 400V
  • Lifetime @ Temp
  • 20000 Hrs @ 85°C
  • Leakage Current
  • 5mA
  • Ripple Current
  • 19.3A
  • Polarization
  • Polar
  • Life (Hours)
  • 20000 hours
  • Tan Delta
  • 0.2
  • Ripple Current @ Low Frequency
  • 24.1A @ 120Hz
  • Ripple Current @ High Frequency
  • 33.74A @ 10kHz
  • Diameter
  • 76.2mm
  • Height Seated (Max)
  • 7.598 193.00mm
  • Length
  • 190mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON LNX2G822MSEH.

LNX2G822MSEH Overview


During full charge, the ripple current is 33.74A @ 10kHz.When the battery is charged to its lowest level, the ripple current is 24.1A @ 120Hz.You should keep the height of the seat (Max) below 7.598 193.00mm.This device should be set to 400V for its rated (DC) voltage (URdc).If you want high efficiency, you should keep the operating temperature at -25°C~85°C.

LNX2G822MSEH Features


the ripple current is 33.74A @ 10kHz.
the ripple current is 24.1A @ 120Hz.
an operating temperature of -25°C~85°C


LNX2G822MSEH Applications


There are a lot of Nichicon
LNX2G822MSEH applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
