NICHICON UWG1H3R3MCL1GB
NICHICON UWG1H3R3MCL1GB

NICHICON UWG1H3R3MCL1GB

Manufacturer No:

UWG1H3R3MCL1GB

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

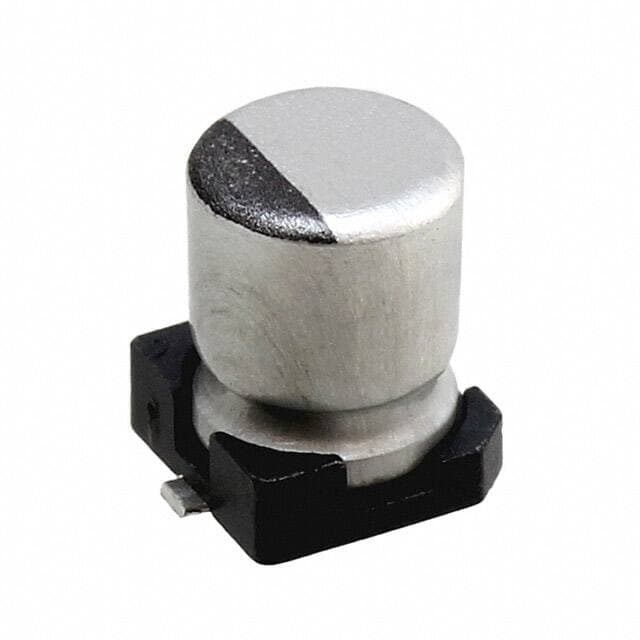

UWG 3.3?F Capacitor ±20% Tape & Reel (TR) Surface Mount 30mA 0.157Dia 4.00mm -55°C~105°C Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UWG1H3R3MCL1GB information

NICHICON UWG1H3R3MCL1GB technical specifications, attributes, parameters and parts with similar specifications to NICHICON UWG1H3R3MCL1GB.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • FLAT
  • Dielectric Material
  • ALUMINUM (WET)
  • Surface Mount Land Size
  • 0.169Lx0.169W 4.30mmx4.30mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UWG
  • Published
  • 2015
  • Size / Dimension
  • 0.157Dia 4.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e6
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Voltage - Rated DC
  • 50V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Polarity
  • POLARIZED
  • Size Code
  • 1717
  • Lifetime @ Temp
  • 1000 Hrs @ 105°C
  • Leakage Current
  • 30?A
  • Ripple Current
  • 30mA
  • Life (Hours)
  • 1000 hours
  • Impedance
  • 5Ohm
  • Ripple Current @ Low Frequency
  • 15mA @ 120Hz
  • Ripple Current @ High Frequency
  • 30mA @ 100kHz
  • Dissipation Factor
  • 0.12 %
  • Height
  • 5.4mm
  • Height Seated (Max)
  • 0.213 5.40mm
  • Length
  • 4.6mm
  • Width
  • 4.3mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UWG1H3R3MCL1GB.

Datasheets:

UWG1H3R3MCL1GB Overview


In terms of ripple current, it is 30mA @ 100kHz at full charge.When the charge is lowest, the ripple current is 15mA @ 120Hz.Sitting height (Max) should not exceed 0.213 5.40mm.Based on a dissipation factor of 0.12 %, it operates.Voltage - Rated DC of 50V is required to operate this capacitor.It is recommended to maintain the operating temperature at -55°C~105°C in order to maximize efficiency.

UWG1H3R3MCL1GB Features


the ripple current is 30mA @ 100kHz.
the ripple current is 15mA @ 120Hz.
a dissipation factor of 0.12 %
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C


UWG1H3R3MCL1GB Applications


There are a lot of Nichicon
UWG1H3R3MCL1GB applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems

User Guide
