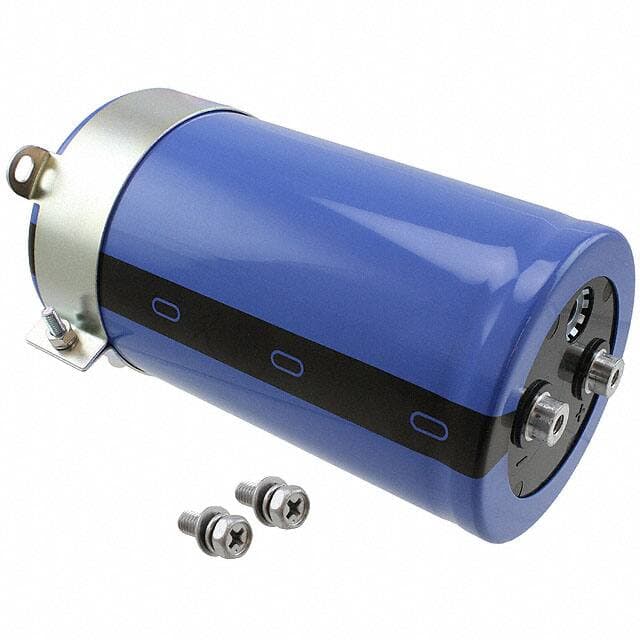

NICHICON LNR1K104MSE

Manufacturer No:

LNR1K104MSE

Manufacturer:

NICHICON

Package:

Radial, Can - Screw Terminals

Description:

LNR 100000?F Capacitor ±20% Bulk Chassis Mount 21.3A 3.000Dia 76.20mm -40°C~85°C Polar 31.8008mm Radial, Can - Screw Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LNR1K104MSE information

NICHICON LNR1K104MSE technical specifications, attributes, parameters and parts with similar specifications to NICHICON LNR1K104MSE.

Type
Parameter

Factory Lead Time
21 Weeks

Mount
Chassis Mount

Mounting Type
Chassis Mount

Package / Case
Radial, Can - Screw Terminals

Terminal Shape
BINDING POST

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
LNR

Published
2015

Size / Dimension
3.000Dia 76.20mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Screw

ECCN Code
EAR99

Applications
General Purpose

Voltage - Rated
80V

HTS Code
8532.22.00

Capacitance
100000?F

Terminal Pitch
31.8mm

Lead Pitch
31.8008mm

Lead Spacing
1.252 31.80mm

Rated (DC) Voltage (URdc)
80V

Lifetime @ Temp
5000 Hrs @ 85°C

Leakage Current
5mA

Ripple Current
21.3A

Polarization
Polar

Life (Hours)
5000 hours

Tan Delta
0.35

Ripple Current @ Low Frequency
21.3A @ 120Hz

Ripple Current @ High Frequency
24.495A @ 10kHz

Diameter
76.2mm

Height Seated (Max)
5.630 143.00mm

Length
140mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON LNR1K104MSE.

LNR1K104MSE Overview

As far as the ripple current is concerned, it is 24.495A @ 10kHz at full charge.As far as the ripple current is concerned, it is 21.3A @ 120Hz at the lowest charge.The height seated (Max) should be kept below 5.630 143.00mm.The rated (DC) voltage (URdc) of the device should be set at 80V.The operating temperature should be maintained at -40°C~85°C for high efficiency.

LNR1K104MSE Features

the ripple current is 24.495A @ 10kHz.
the ripple current is 21.3A @ 120Hz.
an operating temperature of -40°C~85°C

LNR1K104MSE Applications

There are a lot of Nichicon
LNR1K104MSE applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
