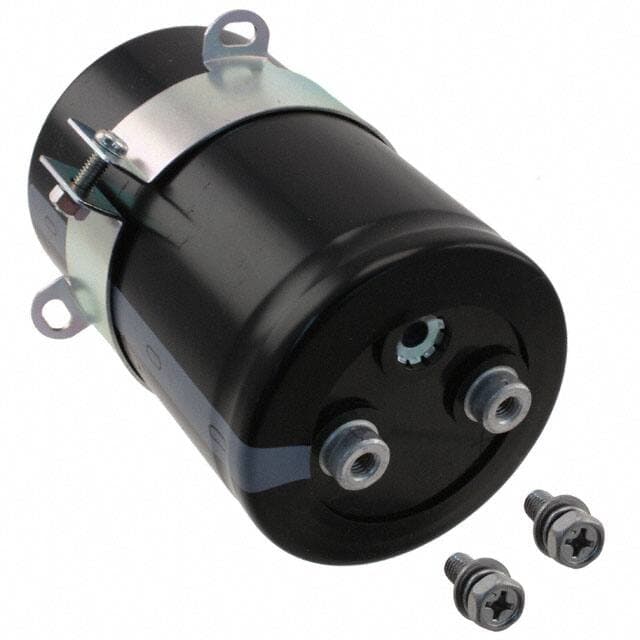

NICHICON LNC2H222MSEG
Manufacturer No:
LNC2H222MSEG
Manufacturer:
Package:
Radial, Can - Screw Terminals
Description:
LNC 2200?F Capacitor ±20% Bulk Chassis Mount 14.2A 2.500Dia 63.50mm -40°C~85°C Polar 28.6mm Radial, Can - Screw Terminals
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
LNC2H222MSEG information
NICHICON LNC2H222MSEG technical specifications, attributes, parameters and parts with similar specifications to NICHICON LNC2H222MSEG.
- Type
- Parameter
- Factory Lead Time
- 21 Weeks
- Mount
- Chassis Mount
- Mounting Type
- Chassis Mount
- Package / Case
- Radial, Can - Screw Terminals
- Terminal Shape
- BINDING POST
- Number of Pins
- 2
- Dielectric Material
- Aluminium
- Operating Temperature
- -40°C~85°C
- Packaging
- Bulk
- Series
- LNC
- Published
- 2010
- Size / Dimension
- 2.500Dia 63.50mm
- Tolerance
- ±20%
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- Screw
- ECCN Code
- EAR99
- Terminal Finish
- Aluminum (Al)
- Applications
- General Purpose
- Capacitance
- 2200?F
- Voltage - Rated DC
- 500V
- Lead Pitch
- 28.6mm
- Lead Spacing
- 1.126 28.60mm
- Voltage
- 500V
- Lifetime @ Temp
- 5000 Hrs @ 85°C
- Leakage Current
- 3.15mA
- Ripple Current
- 14.2A
- Polarization
- Polar
- Life (Hours)
- 5000 hours
- Tan Delta
- 0.2
- Ripple Current @ Low Frequency
- 14.2A @ 120Hz
- Ripple Current @ High Frequency
- 19.88A @ 10kHz
- Diameter
- 63.5mm
- Height
- 100mm
- Height Seated (Max)
- 4.055 103.00mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NICHICON LNC2H222MSEG.
LNC2H222MSEG Overview
Full charge should result in a ripple current of 19.88A @ 10kHz.If the charge is low, ripple current is 14.2A @ 120Hz.Keep your seated height below 4.055 103.00mm.A voltage of 500V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~85°C as the operating temperature.
LNC2H222MSEG Features
the ripple current is 19.88A @ 10kHz.
the ripple current is 14.2A @ 120Hz.
voltage - Rated DC of 500V
an operating temperature of -40°C~85°C
LNC2H222MSEG Applications
There are a lot of Nichicon
LNC2H222MSEG applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
