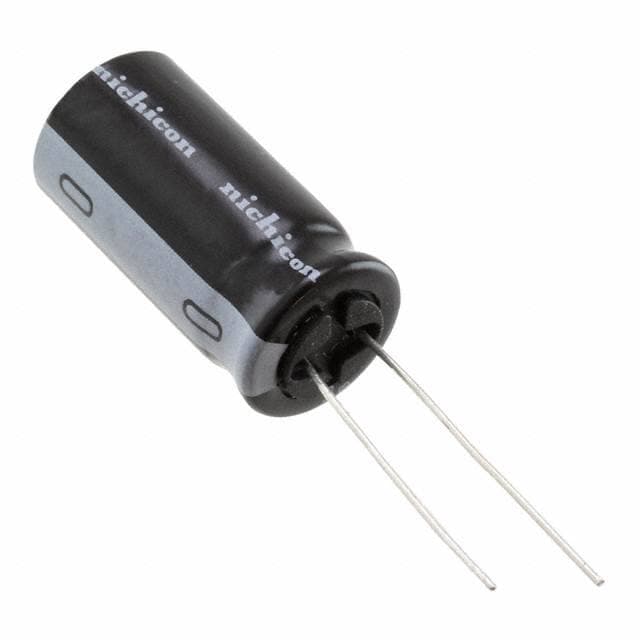

NICHICON UVY2A331MHD

Manufacturer No:

UVY2A331MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UVY 330?F Capacitor ±20% Bulk Through Hole 540mA 0.492Dia 12.50mm -55°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UVY2A331MHD information

NICHICON UVY2A331MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UVY2A331MHD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
UVY

Published
2015

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
330?F

Voltage - Rated DC
100V

Lead Pitch
5.0038mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
1000 Hrs @ 105°C

Leakage Current
990?A

Ripple Current
540mA

Polarization
Polar

Life (Hours)
1000 hours

Tan Delta
0.08

Ripple Current @ Low Frequency
540mA @ 120Hz

Ripple Current @ High Frequency
810mA @ 10kHz

Diameter
12.5mm

Height Seated (Max)
1.063 27.00mm

Length
25mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UVY2A331MHD.

Datasheets:

nichicon-uvy2a331mhd-datasheets-4460.pdf

UVY2A331MHD Overview

With a full charge, the ripple current is 810mA @ 10kHz.When the charge is at the lowest, the ripple current is 540mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 1.063 27.00mm.Voltage - Rated DC of 100V controls this capacitor.High efficiency requires the operating temperature to be -55°C~105°C.

UVY2A331MHD Features

the ripple current is 810mA @ 10kHz.
the ripple current is 540mA @ 120Hz.
voltage - Rated DC of 100V
an operating temperature of -55°C~105°C

UVY2A331MHD Applications

There are a lot of Nichicon
UVY2A331MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
