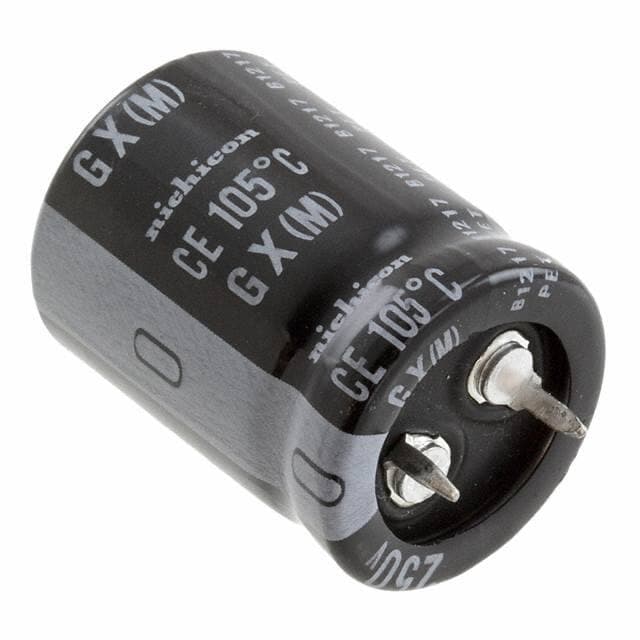

NICHICON LGX2E331MELZ30
NICHICON LGX2E331MELZ30

NICHICON LGX2E331MELZ30

Manufacturer No:

LGX2E331MELZ30

Manufacturer:

NICHICON

Package:

Radial, Can - Snap-In

Description:

LGX 330?F Capacitor ±20% Bulk Through Hole 1.2A 0.866Dia 22.00mm -25°C~105°C Polar 10mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LGX2E331MELZ30 information

NICHICON LGX2E331MELZ30 technical specifications, attributes, parameters and parts with similar specifications to NICHICON LGX2E331MELZ30.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Series
  • LGX
  • Published
  • 2009
  • Size / Dimension
  • 0.866Dia 22.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Snap in
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 330?F
  • Voltage - Rated DC
  • 250V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.394 10.00mm
  • Lead Diameter
  • 800 ?m
  • Voltage
  • 250V
  • Lifetime @ Temp
  • 5000 Hrs @ 105°C
  • Leakage Current
  • 860?A
  • Ripple Current
  • 1.2A
  • Polarization
  • Polar
  • Life (Hours)
  • 5000 hours
  • Tan Delta
  • 0.15
  • Ripple Current @ Low Frequency
  • 1.2A @ 120Hz
  • Ripple Current @ High Frequency
  • 1.8A @ 50kHz
  • Diameter
  • 22mm
  • Height
  • 30mm
  • Height Seated (Max)
  • 1.181 30.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for NICHICON LGX2E331MELZ30.

Datasheets:

LGX2E331MELZ30 Overview


A full charge has a ripple current of 1.8A @ 50kHz volts.In the lowest charge, the ripple current is 1.2A @ 120Hz.Sitting height should not exceed 1.181 30.00mm (Max).A voltage of 250V DC operates this capacitor.Maintaining -25°C~105°C as the operating temperature will maximize efficiency.

LGX2E331MELZ30 Features


the ripple current is 1.8A @ 50kHz.
the ripple current is 1.2A @ 120Hz.
voltage - Rated DC of 250V
an operating temperature of -25°C~105°C


LGX2E331MELZ30 Applications


There are a lot of Nichicon
LGX2E331MELZ30 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
