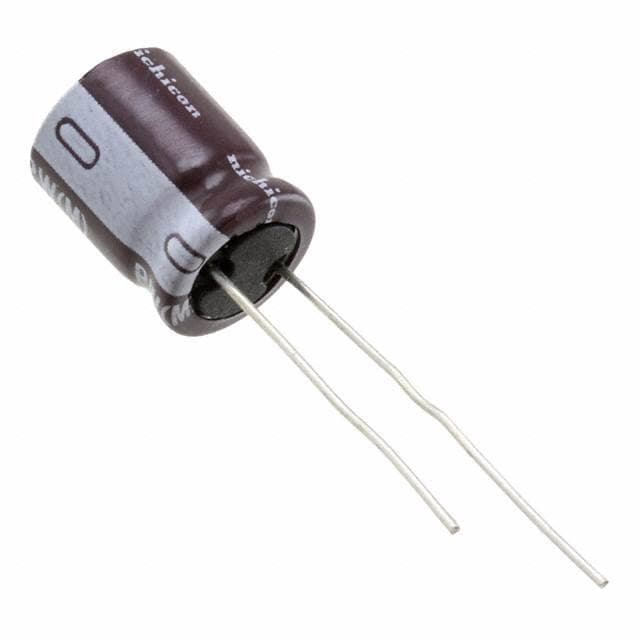

Nichicon UPW1H221MPD1TD
Nichicon UPW1H221MPD1TD

Nichicon UPW1H221MPD1TD

Manufacturer No:

UPW1H221MPD1TD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UPW 220?F Capacitor ±20% Cut Tape (CT) Through Hole 850mA 0.394Dia 10.00mm -55°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPW1H221MPD1TD information

Nichicon UPW1H221MPD1TD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UPW1H221MPD1TD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • UPW
  • Published
  • 2015
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 220?F
  • Voltage - Rated DC
  • 50V
  • Lead Pitch
  • 5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 180mOhm
  • Lead Spacing
  • 0.197 5.00mm
  • Lead Diameter
  • 600 ?m
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Leakage Current
  • 0.33mA
  • Ripple Current
  • 850mA
  • Polarization
  • Polar
  • Life (Hours)
  • 5000 hours
  • Tan Delta
  • 0.1
  • Impedance
  • 119mOhm
  • Ripple Current @ Low Frequency
  • 552.5mA @ 120Hz
  • Ripple Current @ High Frequency
  • 850mA @ 100kHz
  • Diameter
  • 10mm
  • Height
  • 16mm
  • Height Seated (Max)
  • 0.689 17.50mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Nichicon UPW1H221MPD1TD.

Datasheets:

UPW1H221MPD1TD Overview


With a full charge, the ripple current is 850mA @ 100kHz.Defining 180mOhm as an ESR (Equivalent Series Resistance) is essential.When the charge is at the lowest, the ripple current is 552.5mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.689 17.50mm.Voltage - Rated DC of 50V controls this capacitor.High efficiency requires the operating temperature to be -55°C~105°C.
