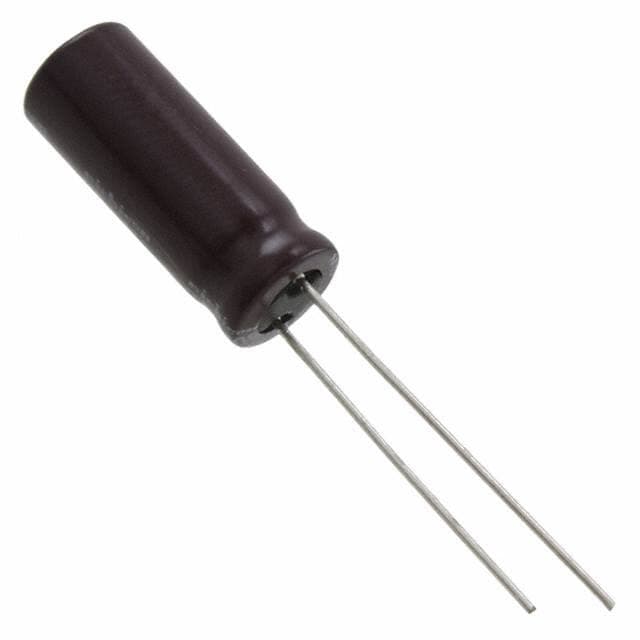

NICHICON UPM1E331MPD
NICHICON UPM1E331MPD

NICHICON UPM1E331MPD

Manufacturer No:

UPM1E331MPD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UPM 330?F Capacitor ±20% Bulk Through Hole 610mA 0.315Dia 8.00mm -55°C~105°C Polar 3.5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPM1E331MPD information

NICHICON UPM1E331MPD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UPM1E331MPD.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • UPM
  • Published
  • 2004
  • Size / Dimension
  • 0.315Dia 8.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 330?F
  • Voltage - Rated DC
  • 25V
  • Lead Pitch
  • 3.5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.138 3.50mm
  • Lead Diameter
  • 600 ?m
  • Voltage
  • 25V
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Leakage Current
  • 247.5?A
  • Ripple Current
  • 610mA
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Impedance
  • 85mOhm
  • Ripple Current @ Low Frequency
  • 610mA @ 120Hz
  • Ripple Current @ High Frequency
  • 795mA @ 10kHz
  • Dissipation Factor
  • 0.14 %
  • Diameter
  • 8mm
  • Height
  • 20mm
  • Height Seated (Max)
  • 0.846 21.50mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for NICHICON UPM1E331MPD.

Datasheets:

UPM1E331MPD Overview


With a full charge, the ripple current is 795mA @ 10kHz.When the charge is at the lowest, the ripple current is 610mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.846 21.50mm.It operates at a dissipation factor of 0.14 % (0.14 %).Voltage - Rated DC of 25V controls this capacitor.With a voltage of 25VVAC, this capacitor operates.High efficiency requires the operating temperature to be -55°C~105°C.

UPM1E331MPD Features


the ripple current is 795mA @ 10kHz.
the ripple current is 610mA @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 25V
an operating temperature of -55°C~105°C


UPM1E331MPD Applications


There are a lot of Nichicon
UPM1E331MPD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
