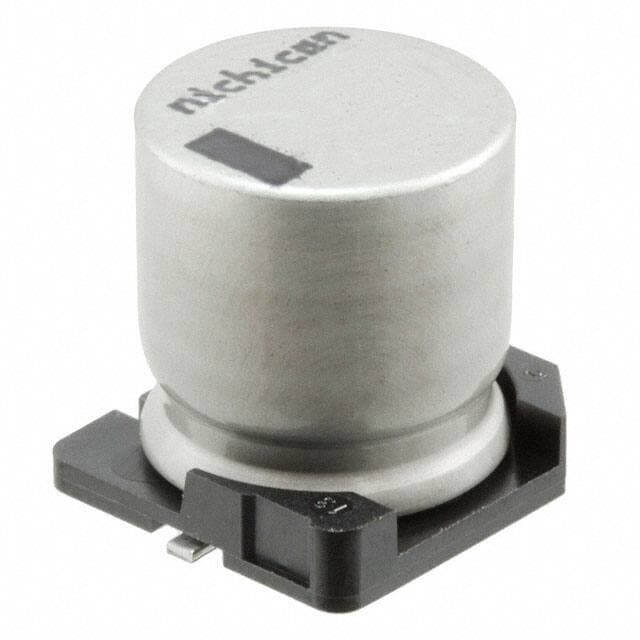

NICHICON UUJ2D100MNQ1MS
NICHICON UUJ2D100MNQ1MS

NICHICON UUJ2D100MNQ1MS

Manufacturer No:

UUJ2D100MNQ1MS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UUJ 10?F Capacitor ±20% Tape & Reel (TR) Surface Mount 80mA 0.492Dia 12.50mm -40°C~105°C Polar 4mm Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UUJ2D100MNQ1MS information

NICHICON UUJ2D100MNQ1MS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UUJ2D100MNQ1MS.

  • Type
  • Parameter
  • Factory Lead Time
  • 24 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • FLAT
  • Dielectric Material
  • ALUMINUM (WET)
  • Surface Mount Land Size
  • 0.535Lx0.535W 13.60mmx13.60mm
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UUJ
  • Published
  • 2009
  • Size / Dimension
  • 0.492Dia 12.50mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 10?F
  • Lead Pitch
  • 4mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Diameter
  • 1.4 mm
  • Size Code
  • 5454
  • Voltage
  • 200V
  • Lifetime @ Temp
  • 5000 Hrs @ 105°C
  • Leakage Current
  • 100?A
  • Ripple Current
  • 80mA
  • Polarization
  • Polar
  • Life (Hours)
  • 5000 hours
  • Tan Delta
  • 0.15
  • Ripple Current @ Low Frequency
  • 80mA @ 120Hz
  • Ripple Current @ High Frequency
  • 128mA @ 10kHz
  • Diameter
  • 12.5mm
  • Height
  • 13.5mm
  • Height Seated (Max)
  • 0.571 14.50mm
  • Length
  • 14.6mm
  • Width
  • 13.6mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for NICHICON UUJ2D100MNQ1MS.

Datasheets:

UUJ2D100MNQ1MS Overview


Full charge should result in a ripple current of 128mA @ 10kHz.If the charge is low, ripple current is 80mA @ 120Hz.Keep your seated height below 0.571 14.50mm.A voltage of 200V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~105°C as the operating temperature.

UUJ2D100MNQ1MS Features


the ripple current is 128mA @ 10kHz.
the ripple current is 80mA @ 120Hz.
voltage - Rated DC of 200V
an operating temperature of -40°C~105°C


UUJ2D100MNQ1MS Applications


There are a lot of Nichicon
UUJ2D100MNQ1MS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
