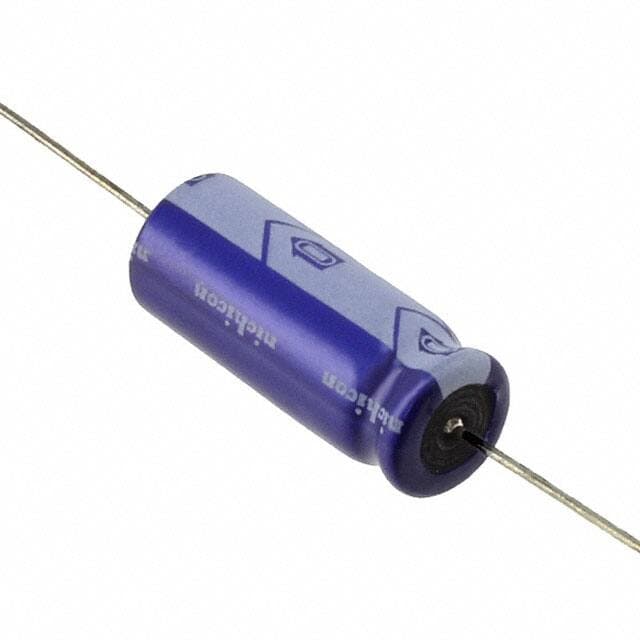

NICHICON TVX1J101MAD
NICHICON TVX1J101MAD

NICHICON TVX1J101MAD

Manufacturer No:

TVX1J101MAD

Manufacturer:

NICHICON

Package:

Axial, Can

Description:

TVX 100?F Capacitor ±20% Bulk Through Hole 260mA 0.315Diax0.827L 8.00mmx21.00mm -40°C~85°C Axial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TVX1J101MAD information

NICHICON TVX1J101MAD technical specifications, attributes, parameters and parts with similar specifications to NICHICON TVX1J101MAD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Axial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • TVX
  • Published
  • 2004
  • Size / Dimension
  • 0.315Diax0.827L 8.00mmx21.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Axial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 100?F
  • Voltage - Rated DC
  • 63V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Length
  • 35mm
  • Polarity
  • POLARIZED
  • Lead Diameter
  • 600 ?m
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Leakage Current
  • 4?A
  • Ripple Current
  • 260mA
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 260mA @ 120Hz
  • Ripple Current @ High Frequency
  • 390mA @ 10kHz
  • Dissipation Factor
  • 0.08 %
  • Ripple Current (AC)
  • 260mA
  • Diameter
  • 8mm
  • Height
  • 20mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for NICHICON TVX1J101MAD.

Datasheets:

TVX1J101MAD Overview


At full charge, the ripple current is 390mA @ 10kHz.The ripple current is 260mA @ 120Hz at the lowest charge.A 0.08 % dissipation factor is used.The capacitor operates at a voltage of 63V - Rated DC.Voltage - Rated AC of 63V is needed to operate this capacitor.For high efficiency, the operating temperature should be -40°C~85°C.

TVX1J101MAD Features


the ripple current is 390mA @ 10kHz.
the ripple current is 260mA @ 120Hz.
a dissipation factor of 0.08 %
voltage - Rated DC of 63V
an operating temperature of -40°C~85°C


TVX1J101MAD Applications


There are a lot of Nichicon
TVX1J101MAD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
