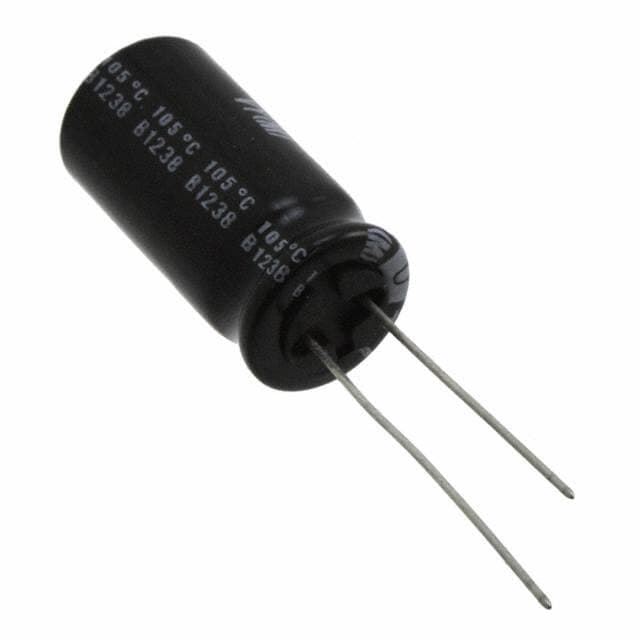

NICHICON UVY1H102MHD
Manufacturer No:
UVY1H102MHD
Manufacturer:
Package:
Radial, Can
Description:
UVY 1000?F Capacitor ±20% Bulk Through Hole 950mA 0.492Dia 12.50mm -55°C~105°C Polar 5mm Radial, Can
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
UVY1H102MHD information
NICHICON UVY1H102MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UVY1H102MHD.
- Type
- Parameter
- Factory Lead Time
- 19 Weeks
- Mount
- PCB, Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Terminal Shape
- WIRE
- Number of Pins
- 2
- Dielectric Material
- Aluminium
- Operating Temperature
- -55°C~105°C
- Packaging
- Bulk
- Series
- UVY
- Published
- 2009
- Size / Dimension
- 0.492Dia 12.50mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Feature
- General Purpose
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- Radial
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- Applications
- General Purpose
- Capacitance
- 1000?F
- Lead Pitch
- 5mm
- Capacitor Type
- ALUMINUM ELECTROLYTIC CAPACITOR
- Lead Spacing
- 0.197 5.00mm
- Lead Diameter
- 600 ?m
- Voltage
- 50V
- Lifetime @ Temp
- 1000 Hrs @ 105°C
- Leakage Current
- 1.5mA
- Ripple Current
- 950mA
- Polarization
- Polar
- Life (Hours)
- 1000 hours
- Tan Delta
- 0.14
- Ripple Current @ Low Frequency
- 950mA @ 120Hz
- Ripple Current @ High Frequency
- 1.0925A @ 10kHz
- Dissipation Factor
- 0.12 %
- Diameter
- 12.5mm
- Height
- 25mm
- Height Seated (Max)
- 0.984 25.00mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NICHICON UVY1H102MHD.
UVY1H102MHD Overview
With a full charge, the ripple current is 1.0925A @ 10kHz.When the charge is at the lowest, the ripple current is 950mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.984 25.00mm.It operates at a dissipation factor of 0.12 % (0.12 %).Voltage - Rated DC of 50V controls this capacitor.High efficiency requires the operating temperature to be -55°C~105°C.
UVY1H102MHD Features
the ripple current is 1.0925A @ 10kHz.
the ripple current is 950mA @ 120Hz.
a dissipation factor of 0.12 %
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C
UVY1H102MHD Applications
There are a lot of Nichicon
UVY1H102MHD applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
