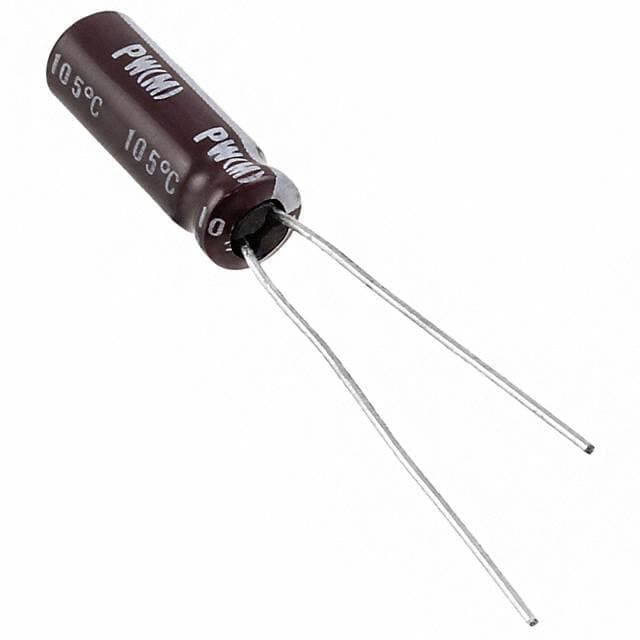

NICHICON UPW1E471MPD

Manufacturer No:

UPW1E471MPD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UPW 470?F Capacitor ±20% Bulk Through Hole 1.05A 0.394Dia 10.00mm -55°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPW1E471MPD information

NICHICON UPW1E471MPD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UPW1E471MPD.

Type
Parameter

Factory Lead Time
19 Weeks

Contact Plating
Tin

Mount
PCB, Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
UPW

Published
2009

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
470?F

Voltage - Rated DC
25V

Lead Pitch
5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

ESR (Equivalent Series Resistance)
130mOhm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Voltage
25V

Lifetime @ Temp
5000 Hrs @ 105°C

Leakage Current
352.5?A

Ripple Current
1.05A

Polarization
Polar

Life (Hours)
5000 hours

Impedance
68mOhm

Ripple Current @ Low Frequency
787.5mA @ 120Hz

Ripple Current @ High Frequency
1.05A @ 100kHz

Dissipation Factor
0.14 %

Diameter
10mm

Height
16mm

Height Seated (Max)
0.630 16.00mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON UPW1E471MPD.

UPW1E471MPD Overview

With a full charge, the ripple current is 1.05A @ 100kHz.Defining 130mOhm as an ESR (Equivalent Series Resistance) is essential.When the charge is at the lowest, the ripple current is 787.5mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.630 16.00mm.It operates at a dissipation factor of 0.14 % (0.14 %).Voltage - Rated DC of 25V controls this capacitor.High efficiency requires the operating temperature to be -55°C~105°C.

UPW1E471MPD Features

the ripple current is 1.05A @ 100kHz.
the ripple current is 787.5mA @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 25V
an operating temperature of -55°C~105°C

UPW1E471MPD Applications

There are a lot of Nichicon
UPW1E471MPD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
