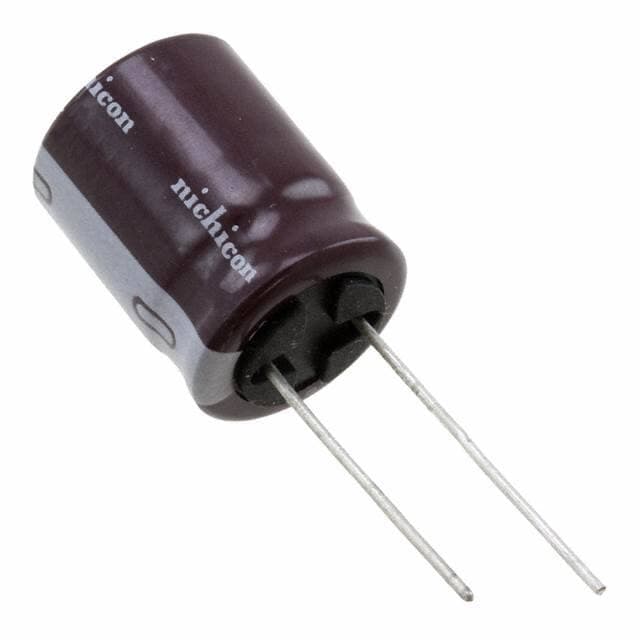

NICHICON UCY2G470MHD

Manufacturer No:

UCY2G470MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UCY 47?F Capacitor ±20% Bulk Through Hole 520mA 0.630Dia 16.00mm -40°C~105°C Polar 7.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCY2G470MHD information

NICHICON UCY2G470MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCY2G470MHD.

Type
Parameter

Factory Lead Time
17 Weeks

Contact Plating
Tin

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
UCY

Published
2007

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Applications
General Purpose

Capacitance
47?F

Voltage - Rated DC
400V

Lead Pitch
7.5mm

Lead Length
19mm

Lead Spacing
0.295 7.50mm

Lead Diameter
800 ?m

Lifetime @ Temp
12000 Hrs @ 105°C

Leakage Current
100?A

Ripple Current
520mA

Polarization
Polar

Life (Hours)
10000 hours

Ripple Current @ Low Frequency
520mA @ 120Hz

Ripple Current @ High Frequency
1.04A @ 100kHz

Dissipation Factor
0.24 %

Lead/Base Style
Straight

Ripple Current (AC)
520mA

Diameter
16mm

Height
20mm

Height Seated (Max)
0.846 21.50mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON UCY2G470MHD.

UCY2G470MHD Overview

A full charge means 1.04A @ 100kHz ripple current.During the lowest charge, ripple current is 520mA @ 120Hz.You should keep the seated height (Max) below 0.846 21.50mm.There is a dissipation factor of 0.24 %.The capacitor operates from 400V DC voltage.When operating at -40°C~105°C, high efficiency can be achieved.

UCY2G470MHD Features

the ripple current is 1.04A @ 100kHz.
the ripple current is 520mA @ 120Hz.
a dissipation factor of 0.24 %
voltage - Rated DC of 400V
an operating temperature of -40°C~105°C

UCY2G470MHD Applications

There are a lot of Nichicon
UCY2G470MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
