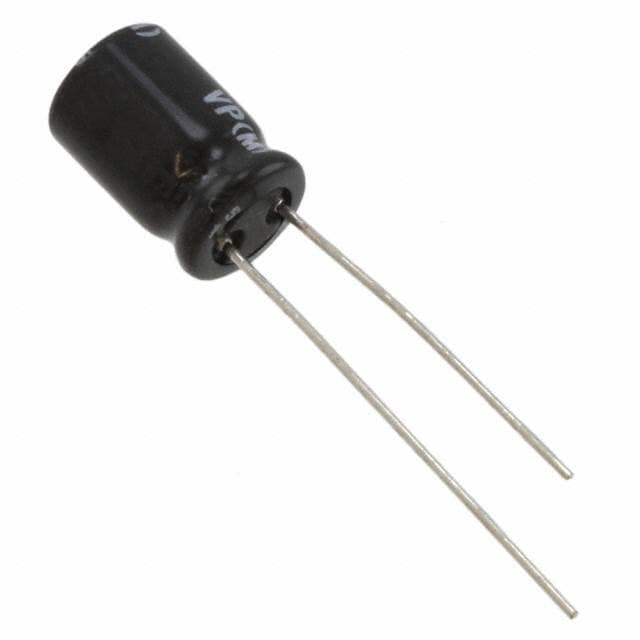

NICHICON UVP1E101MPD1TD
NICHICON UVP1E101MPD1TD

NICHICON UVP1E101MPD1TD

Manufacturer No:

UVP1E101MPD1TD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UVP 100?F Capacitor ±20% Cut Tape (CT) Through Hole 160mA 0.315Dia 8.00mm -40°C~85°C Bi-Polar 3.5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UVP1E101MPD1TD information

NICHICON UVP1E101MPD1TD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UVP1E101MPD1TD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • UVP
  • Published
  • 2012
  • Size / Dimension
  • 0.315Dia 8.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 100?F
  • Voltage - Rated DC
  • 25V
  • Lead Pitch
  • 3.5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Polarity
  • NON-POLARIZED
  • Lead Spacing
  • 0.138 3.50mm
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Leakage Current
  • 0.075mA
  • Ripple Current
  • 160mA
  • Polarization
  • Bi-Polar
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.2
  • Ripple Current @ Low Frequency
  • 160mA @ 120Hz
  • Ripple Current @ High Frequency
  • 240mA @ 10kHz
  • Diameter
  • 8mm
  • Height
  • 11.5mm
  • Height Seated (Max)
  • 0.512 13.00mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UVP1E101MPD1TD.

Datasheets:

UVP1E101MPD1TD Overview


A full charge means 240mA @ 10kHz ripple current.During the lowest charge, ripple current is 160mA @ 120Hz.You should keep the seated height (Max) below 0.512 13.00mm.The capacitor operates from 25V DC voltage.When operating at -40°C~85°C, high efficiency can be achieved.

UVP1E101MPD1TD Features


the ripple current is 240mA @ 10kHz.
the ripple current is 160mA @ 120Hz.
voltage - Rated DC of 25V
an operating temperature of -40°C~85°C


UVP1E101MPD1TD Applications


There are a lot of Nichicon
UVP1E101MPD1TD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
