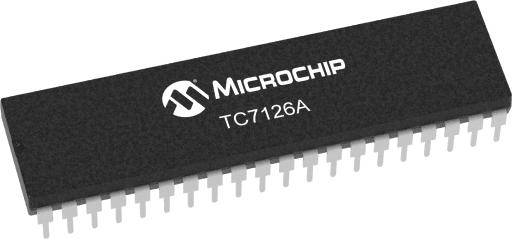

Microchip TC7126ACPL
Microchip TC7126ACPLMicrochip TC7126ACPL

Microchip TC7126ACPL

Manufacturer No:

TC7126ACPL

Manufacturer:

Microchip

Package:

40-DIP (0.600, 15.24mm)

Description:

The TC7126A is a 3-1/2 digit CMOS analog-to-digital converter (ADC)containing all the active components necessary to construct a 0.05%resolution meas

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC7126ACPL information

Microchip TC7126ACPL technical specifications, attributes, parameters and parts with similar specifications to Microchip TC7126ACPL.

  • Type
  • Parameter
  • Hold function
  • No
  • DMM
  • No
  • Resolution Digits
  • 3.5
  • Resolution Counts
  • 2000
  • Temp Range Min
  • -25
  • Temp Range Max
  • 85

Download datasheets and manufacturer documentation for Microchip TC7126ACPL.

Data Sheets:

Brochures:

The TC7126A is a 3½ digit CMOS analog-to-digital converter (ADC) containing all the active components necessary to construct a 0.05% resolution measurement system. Seven-segment decoders, digit and polarity drivers, voltage reference, and clock circuit are integrated on-chip. The TC7126A directly drives a liquid crystal display (LCD), and includes a backplane driver. A low-cost, high-resolution indicating meter requires only a display, four resistors, and four capacitors. The TC7126A's extremely low power drain and 9V battery operation make it ideal for portable applications. The TC7126A reduces linearity error to less than 1 count. Roll-over error (the difference in readings for equal magnitude but opposite polarity input signals) is below ±1 count. High-impedance differential inputs offer 1 pA leakage current and a 1012 ohm input impedance. The 15 µVp-p noise performance guarantees a great reading, and the auto-zero cycle guarantees a zero display reading with a 0V input. The TC7126A features a precision, low-drift internal voltage reference and is functionally identical to the TC7126. A low-drift external reference is not normally required with the TC7126A.

  • Fast Overrange Recovery, Guaranteed First Reading Accuracy
  • 35 ppm/°C Typ.
  • Guaranteed Zero Reading with Zero Input
  • Low Noise: 15 µVp-p
  • High Resolution: 0.05%
  • Low Input Leakage Current: 1pA Typ., 10pA Max
  • Precision Null Detectors with True Polarity at Zero
  • High-Impedance Differential Input
  • Convenient 9V Battery Operation
  • Low Power Dissipation: 500µW Typ., 900µW Max.

User Guide
