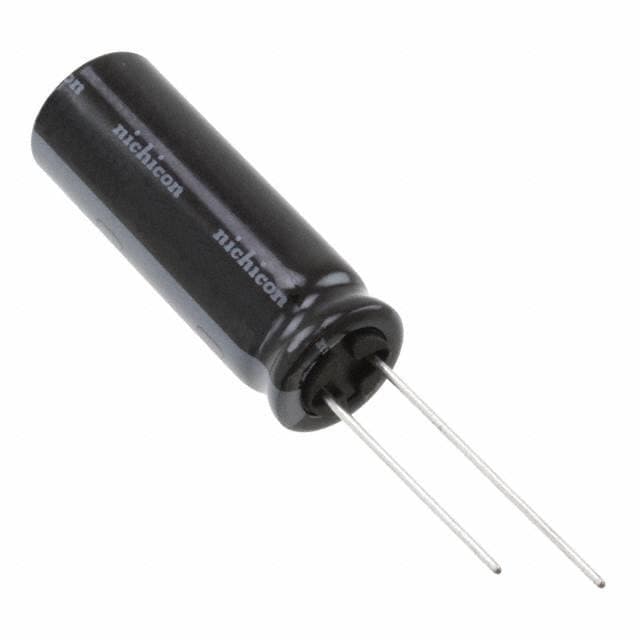

NICHICON UHW1K681MHD

Manufacturer No:

UHW1K681MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UHW 680?F Capacitor ±20% Bulk Through Hole 1.716A 0.492Dia 12.50mm -40°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UHW1K681MHD information

NICHICON UHW1K681MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UHW1K681MHD.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
UHW

Published
2015

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Applications
General Purpose

Voltage - Rated
80V

Capacitance
680?F

Lead Pitch
5.0038mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
10000 Hrs @ 105°C

Ripple Current
1.716A

Polarization
Polar

Life (Hours)
10000 hours

Ripple Current @ Low Frequency
1.716A @ 120Hz

Ripple Current @ High Frequency
2.86A @ 100kHz

Height Seated (Max)
1.654 42.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UHW1K681MHD.

Datasheets:

nichicon-uhw1j102mhd6tn-datasheets-5589.pdf

UHW1K681MHD Overview

Ripple current at full charge is 2.86A @ 100kHz.It is 1.716A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 1.654 42.00mm.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.

UHW1K681MHD Features

the ripple current is 2.86A @ 100kHz.
the ripple current is 1.716A @ 120Hz.
an operating temperature of -40°C~105°C

UHW1K681MHD Applications

There are a lot of Nichicon
UHW1K681MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
