NICHICON UCS2W220MHD
NICHICON UCS2W220MHD

NICHICON UCS2W220MHD

Manufacturer No:

UCS2W220MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

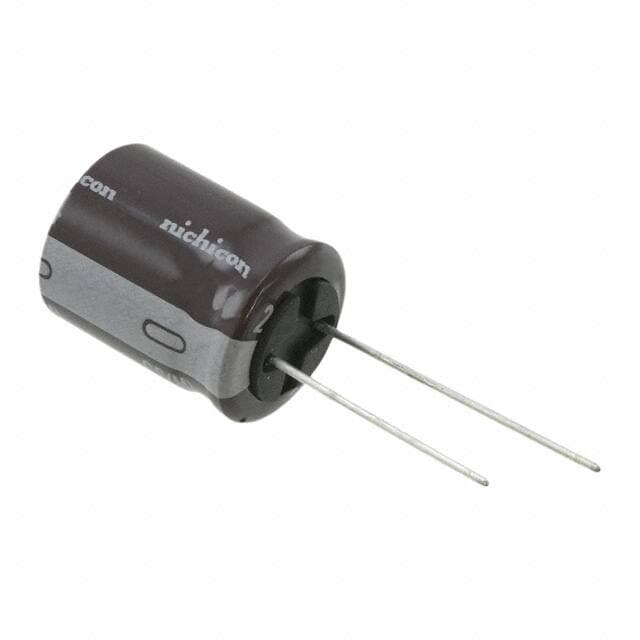

UCS 22?F Capacitor ±20% Bulk Through Hole 730mA 0.630Dia 16.00mm -25°C~105°C Polar 7.493mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCS2W220MHD information

NICHICON UCS2W220MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCS2W220MHD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Series
  • UCS
  • Published
  • 2009
  • Size / Dimension
  • 0.630Dia 16.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 22?F
  • Terminal Pitch
  • 7.5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.295 7.50mm
  • Lead Diameter
  • 800 ?m
  • Voltage
  • 450V
  • Lifetime @ Temp
  • 10000 Hrs @ 105°C
  • Leakage Current
  • 0.496mA
  • Ripple Current
  • 730mA
  • Polarization
  • Polar
  • Life (Hours)
  • 10000 hours
  • Ripple Current @ Low Frequency
  • 365mA @ 120Hz
  • Ripple Current @ High Frequency
  • 730mA @ 100kHz
  • Dissipation Factor
  • 0.24 %
  • Diameter
  • 16mm
  • Height
  • 20mm
  • Height Seated (Max)
  • 0.846 21.50mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for NICHICON UCS2W220MHD.

Datasheets:

UCS2W220MHD Overview


With a full charge, the ripple current is 730mA @ 100kHz.When the charge is at the lowest, the ripple current is 365mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.846 21.50mm.It operates at a dissipation factor of 0.24 % (0.24 %).High efficiency requires the operating temperature to be -25°C~105°C.

UCS2W220MHD Features


the ripple current is 730mA @ 100kHz.
the ripple current is 365mA @ 120Hz.
a dissipation factor of 0.24 %
an operating temperature of -25°C~105°C


UCS2W220MHD Applications


There are a lot of Nichicon
UCS2W220MHD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
