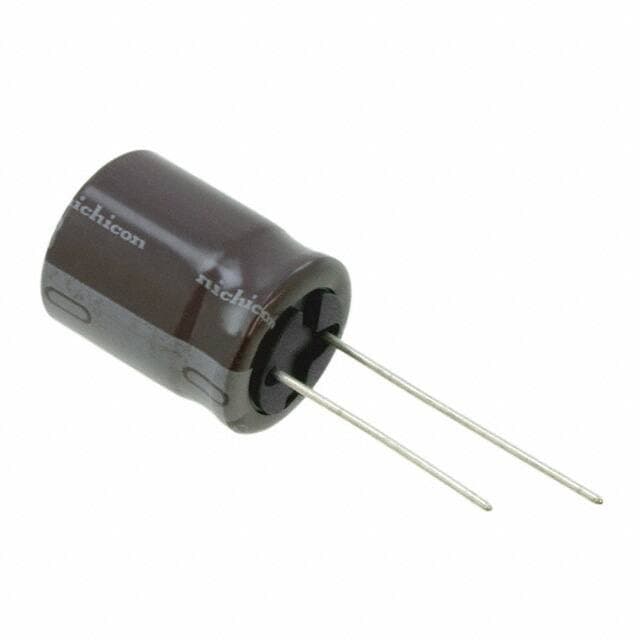

Nichicon UCS2E820MHD
Nichicon UCS2E820MHD

Nichicon UCS2E820MHD

Manufacturer No:

UCS2E820MHD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UCS 82?F Capacitor ±20% Bulk Through Hole 1.38A 0.630Dia 16.00mm -40°C~105°C Polar 7.5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCS2E820MHD information

Nichicon UCS2E820MHD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UCS2E820MHD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • UCS
  • Published
  • 2009
  • Size / Dimension
  • 0.630Dia 16.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 82?F
  • Voltage - Rated DC
  • 250V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.295 7.50mm
  • Lead Diameter
  • 800 ?m
  • Voltage
  • 250V
  • Lifetime @ Temp
  • 10000 Hrs @ 105°C
  • Leakage Current
  • 0.92mA
  • Ripple Current
  • 1.38A
  • Polarization
  • Polar
  • Life (Hours)
  • 10000 hours
  • Tan Delta
  • 0.2
  • Ripple Current @ Low Frequency
  • 690mA @ 120Hz
  • Ripple Current @ High Frequency
  • 1.38A @ 100kHz
  • Dissipation Factor
  • 0.2 %
  • Diameter
  • 16mm
  • Height
  • 20mm
  • Height Seated (Max)
  • 0.846 21.50mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Nichicon UCS2E820MHD.

Datasheets:

UCS2E820MHD Overview


A full charge has a ripple current of 1.38A @ 100kHz volts.In the lowest charge, the ripple current is 690mA @ 120Hz.Sitting height should not exceed 0.846 21.50mm (Max).With 0.2 % dissipation factor, it operates normally.A voltage of 250V DC operates this capacitor.Maintaining -40°C~105°C as the operating temperature will maximize efficiency.
