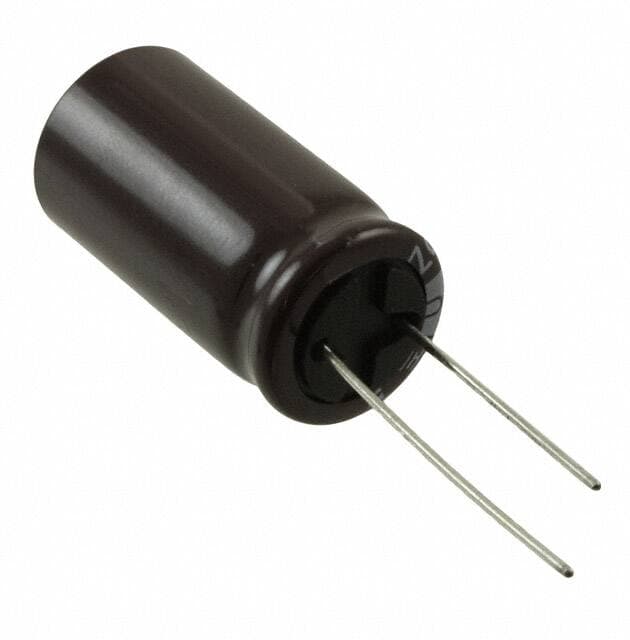

NICHICON UPZ2G101MHD

Manufacturer No:

UPZ2G101MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UPZ 100?F Capacitor ±20% Bulk Through Hole 580mA 0.630Dia 16.00mm -25°C~105°C 7.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPZ2G101MHD information

NICHICON UPZ2G101MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UPZ2G101MHD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-25°C~105°C

Packaging
Bulk

Series
UPZ

Published
2009

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
100?F

Voltage - Rated DC
400V

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Polarity
POLARIZED

Lead Spacing
0.295 7.50mm

Lifetime @ Temp
2000 Hrs @ 105°C

Leakage Current
1.7mA

Ripple Current
580mA

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
580mA @ 120Hz

Ripple Current @ High Frequency
870mA @ 10kHz

Dissipation Factor
0.15 %

Diameter
16mm

Height
31.5mm

Height Seated (Max)
1.319 33.50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UPZ2G101MHD.

Datasheets:

nichicon-upz2g101mhd-datasheets-1443.pdf

UPZ2G101MHD Overview

At full charge, the ripple current is 870mA @ 10kHz.The ripple current is 580mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 1.319 33.50mm.A 0.15 % dissipation factor is used.The capacitor operates at a voltage of 400V - Rated DC.For high efficiency, the operating temperature should be -25°C~105°C.

UPZ2G101MHD Features

the ripple current is 870mA @ 10kHz.
the ripple current is 580mA @ 120Hz.
a dissipation factor of 0.15 %
voltage - Rated DC of 400V
an operating temperature of -25°C~105°C

UPZ2G101MHD Applications

There are a lot of Nichicon
UPZ2G101MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
