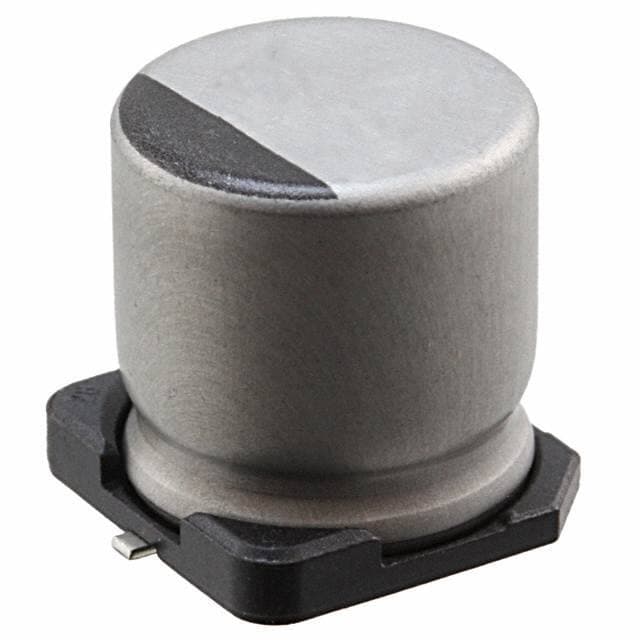

NICHICON ULT2W5R6MNL1GS
NICHICON ULT2W5R6MNL1GS

NICHICON ULT2W5R6MNL1GS

Manufacturer No:

ULT2W5R6MNL1GS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

ULT 5.6?F Capacitor ±20% Tape & Reel (TR) Surface Mount 35mA 0.394Dia 10.00mm -40°C~125°C Polar 4.5mm Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ULT2W5R6MNL1GS information

NICHICON ULT2W5R6MNL1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON ULT2W5R6MNL1GS.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Dielectric Material
  • ALUMINUM (WET)
  • Weight
  • 1.209986g
  • Surface Mount Land Size
  • 0.406Lx0.406W 10.30mmx10.30mm
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • ULT
  • Published
  • 2009
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 5.6?F
  • Voltage - Rated DC
  • 450V
  • Lead Pitch
  • 4.5mm
  • Voltage
  • 450V
  • Lifetime @ Temp
  • 2000 Hrs @ 125°C
  • Leakage Current
  • 200.8mA
  • Ripple Current
  • 35mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 35mA @ 120Hz
  • Diameter
  • 10mm
  • Height
  • 10mm
  • Height Seated (Max)
  • 0.433 11.00mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON ULT2W5R6MNL1GS.

Datasheets:

ULT2W5R6MNL1GS Overview


The ripple current is 35mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 0.433 11.00mm.The capacitor operates at a voltage of 450V - Rated DC.For high efficiency, the operating temperature should be -40°C~125°C.

ULT2W5R6MNL1GS Features


the ripple current is 35mA @ 120Hz.
voltage - Rated DC of 450V
an operating temperature of -40°C~125°C


ULT2W5R6MNL1GS Applications


There are a lot of Nichicon
ULT2W5R6MNL1GS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
