Manufacturer No:

UPS1C682MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

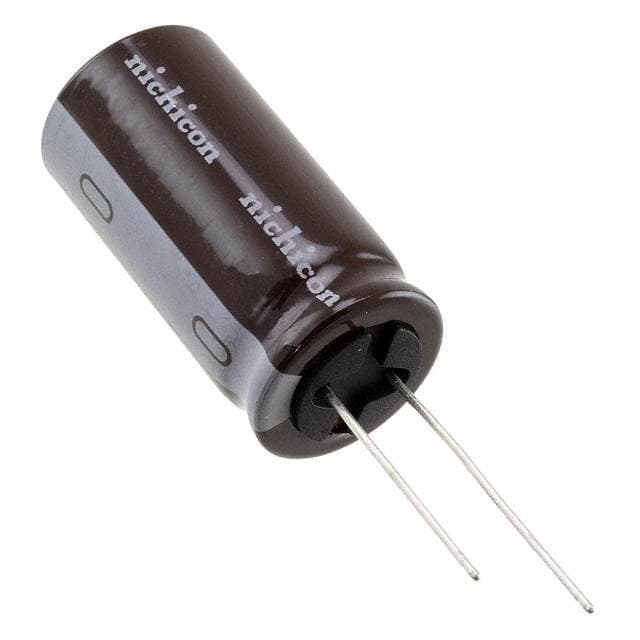

UPS 6800?F Capacitor ±20% Bulk Through Hole 2.7A 0.709Dia 18.00mm -55°C~105°C Polar 7.5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPS1C682MHD information

NICHICON UPS1C682MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UPS1C682MHD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • UPS
  • Published
  • 2005
  • Size / Dimension
  • 0.709Dia 18.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 6800?F
  • Lead Pitch
  • 7.5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.295 7.50mm
  • Lead Diameter
  • 800 ?m
  • Voltage
  • 16V
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Leakage Current
  • 3.264mA
  • Ripple Current
  • 2.7A
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Tan Delta
  • 0.16
  • Impedance
  • 30mOhm
  • Ripple Current @ Low Frequency
  • 2.349A @ 120Hz
  • Ripple Current @ High Frequency
  • 2.7A @ 100kHz
  • Diameter
  • 18mm
  • Height
  • 35.5mm
  • Height Seated (Max)
  • 1.476 37.50mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UPS1C682MHD.

Datasheets:

UPS1C682MHD Overview


During full charge, the ripple current is 2.7A @ 100kHz.When the battery is charged to its lowest level, the ripple current is 2.349A @ 120Hz.You should keep the height of the seat (Max) below 1.476 37.50mm.Rated DC voltage of 16V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -55°C~105°C.

UPS1C682MHD Features


the ripple current is 2.7A @ 100kHz.
the ripple current is 2.349A @ 120Hz.
voltage - Rated DC of 16V
an operating temperature of -55°C~105°C


UPS1C682MHD Applications


There are a lot of Nichicon
UPS1C682MHD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
