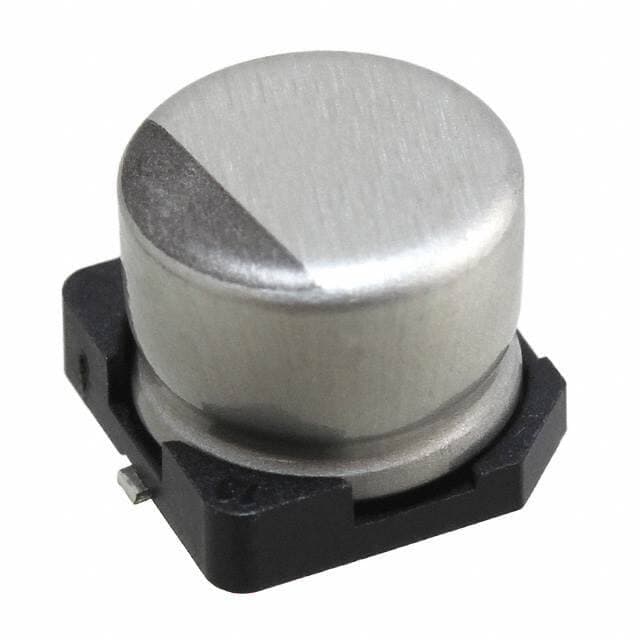

Nichicon UWG0J101MCL1GB
Nichicon UWG0J101MCL1GB

Nichicon UWG0J101MCL1GB

Manufacturer No:

UWG0J101MCL1GB

Manufacturer:

Nichicon

Package:

Radial, Can - SMD

Description:

UWG 100?F Capacitor ±20% Tape & Reel (TR) Surface Mount 140mA 0.248Dia 6.30mm -55°C~105°C Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UWG0J101MCL1GB information

Nichicon UWG0J101MCL1GB technical specifications, attributes, parameters and parts with similar specifications to Nichicon UWG0J101MCL1GB.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • FLAT
  • Dielectric Material
  • ALUMINUM (WET)
  • Surface Mount Land Size
  • 0.260Lx0.260W 6.60mmx6.60mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UWG
  • Published
  • 2005
  • Size / Dimension
  • 0.248Dia 6.30mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e6
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Voltage - Rated DC
  • 6.3V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Polarity
  • POLARIZED
  • Size Code
  • 2626
  • Voltage
  • 6.3V
  • Lifetime @ Temp
  • 1000 Hrs @ 105°C
  • Leakage Current
  • 6.3?A
  • Ripple Current
  • 140mA
  • Life (Hours)
  • 1000 hours
  • Impedance
  • 1Ohm
  • Ripple Current @ Low Frequency
  • 70mA @ 120Hz
  • Ripple Current @ High Frequency
  • 140mA @ 100kHz
  • Diameter
  • 6.3mm
  • Height
  • 5.4mm
  • Height Seated (Max)
  • 0.213 5.40mm
  • Length
  • 7mm
  • Width
  • 6.6mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Nichicon UWG0J101MCL1GB.

Datasheets:

UWG0J101MCL1GB Overview


With a full charge, the ripple current is 140mA @ 100kHz.When the charge is at the lowest, the ripple current is 70mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.213 5.40mm.Voltage - Rated DC of 6.3V controls this capacitor.High efficiency requires the operating temperature to be -55°C~105°C.

UWG0J101MCL1GB Features


the ripple current is 140mA @ 100kHz.
the ripple current is 70mA @ 120Hz.
voltage - Rated DC of 6.3V
an operating temperature of -55°C~105°C


UWG0J101MCL1GB Applications


There are a lot of Nichicon
UWG0J101MCL1GB applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
