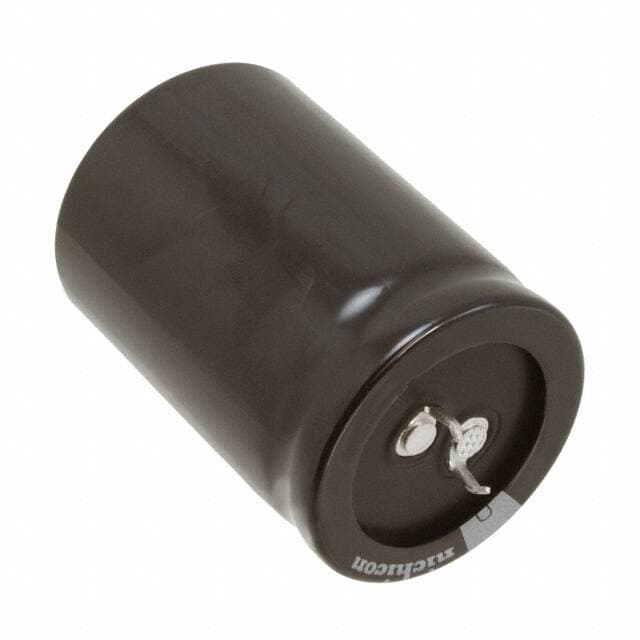

Nichicon LGG2G102MELC50

Manufacturer No:

LGG2G102MELC50

Manufacturer:

Nichicon

Package:

Radial, Can - Snap-In

Description:

LGG 1000?F Capacitor ±20% Bulk Through Hole 2.14A 1.378Dia 35.00mm -25°C~105°C Polar 10mm Radial, Can - Snap-In

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LGG2G102MELC50 information

Nichicon LGG2G102MELC50 technical specifications, attributes, parameters and parts with similar specifications to Nichicon LGG2G102MELC50.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-25°C~105°C

Packaging
Bulk

Series
LGG

Published
2009

Size / Dimension
1.378Dia 35.00mm

Tolerance
±20%

JESD-609 Code
e3

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Snap in

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
1000?F

Voltage - Rated DC
400V

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.394 10.00mm

Lead Diameter
800 ?m

Lifetime @ Temp
2000 Hrs @ 105°C

Leakage Current
1.89mA

Ripple Current
2.14A

Polarization
Polar

Life (Hours)
2000 hours

Tan Delta
0.15

Ripple Current @ Low Frequency
2.14A @ 120Hz

Ripple Current @ High Frequency
3.0602A @ 50kHz

Diameter
35mm

Height
50mm

Height Seated (Max)
2.047 52.00mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Nichicon LGG2G102MELC50.

LGG2G102MELC50 Overview

Full charge results in a ripple current of 3.0602A @ 50kHz.The ripple current at the lowest charge is 2.14A @ 120Hz.Keeping the maximum height of the seated person (Max) below 2.047 52.00mm is recommended.Rated DC voltage is 400V for this capacitor.High efficiency requires an operating temperature of -25°C~105°C.

LGG2G102MELC50 Features

the ripple current is 3.0602A @ 50kHz.
the ripple current is 2.14A @ 120Hz.
voltage - Rated DC of 400V
an operating temperature of -25°C~105°C

LGG2G102MELC50 Applications

There are a lot of Nichicon
LGG2G102MELC50 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
