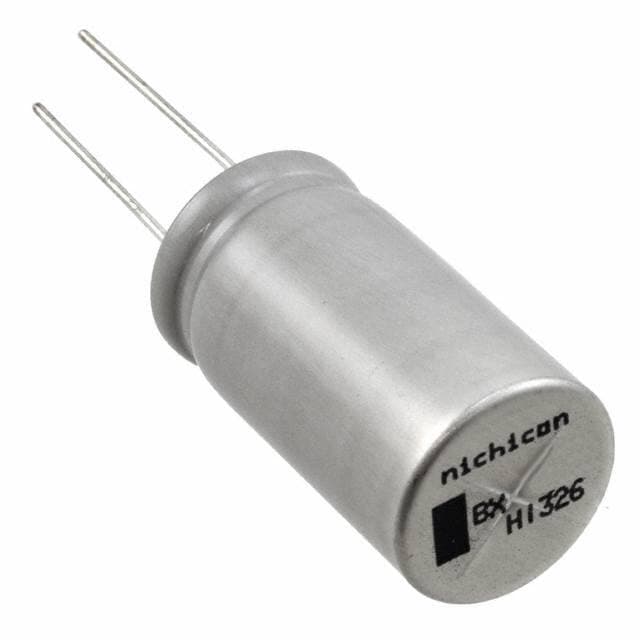

NICHICON UBX1V471MHL

Manufacturer No:

UBX1V471MHL

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UBX 470?F Capacitor ±20% Bulk Through Hole 1A 0.630Dia 16.00mm -55°C~150°C Polar 7.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UBX1V471MHL information

NICHICON UBX1V471MHL technical specifications, attributes, parameters and parts with similar specifications to NICHICON UBX1V471MHL.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-55°C~150°C

Packaging
Bulk

Series
UBX

Published
2009

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
Automotive

HTS Code
8532.22.00

Capacitance
470?F

Voltage - Rated DC
35V

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.295 7.50mm

Lead Diameter
800 ?m

Voltage
35V

Lifetime @ Temp
2000 Hrs @ 150°C

Leakage Current
4?A

Ripple Current
1A

Polarization
Polar

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
500mA @ 120Hz

Ripple Current @ High Frequency
1A @ 100kHz

Dissipation Factor
0.12 %

Lead/Base Style
Straight

Diameter
16mm

Height
31.5mm

Height Seated (Max)
1.299 33.00mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UBX1V471MHL.

Datasheets:

nichicon-ubx1v471mhl-datasheets-9925.pdf

nichicon-ubx1v471mhl-datasheets-9926.pdf

UBX1V471MHL Overview

At full charge, the ripple current is 1A @ 100kHz.The ripple current is 500mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 1.299 33.00mm.A 0.12 % dissipation factor is used.The capacitor operates at a voltage of 35V - Rated DC.For high efficiency, the operating temperature should be -55°C~150°C.

UBX1V471MHL Features

the ripple current is 1A @ 100kHz.
the ripple current is 500mA @ 120Hz.
a dissipation factor of 0.12 %
voltage - Rated DC of 35V
an operating temperature of -55°C~150°C

UBX1V471MHL Applications

There are a lot of Nichicon
UBX1V471MHL applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
