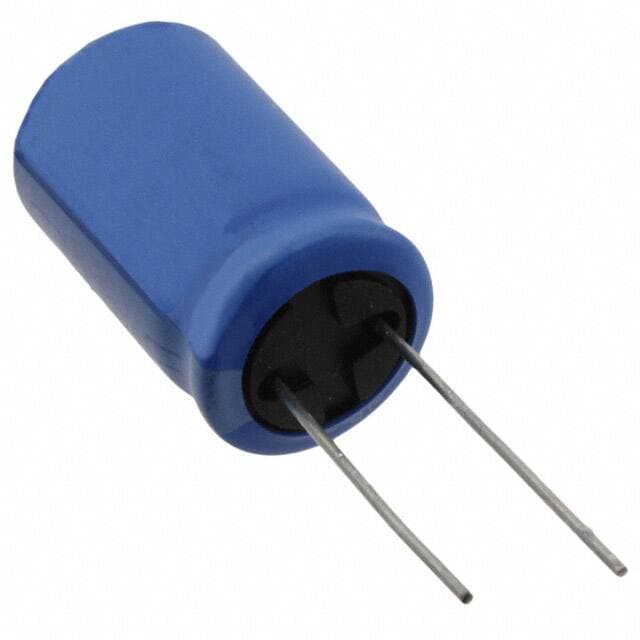

NICHICON UBT1V221MPD8TD

Manufacturer No:

UBT1V221MPD8TD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UBT 220?F Capacitor ±20% Tape & Box (TB) Through Hole 790mA 0.630Dia 16.00mm -40°C~125°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UBT1V221MPD8TD information

NICHICON UBT1V221MPD8TD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UBT1V221MPD8TD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~125°C

Packaging
Tape & Box (TB)

Series
UBT

Published
2015

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
Automotive

Voltage - Rated
35V

Capacitance
220?F

Lead Pitch
5mm

Lead Spacing
0.295 7.50mm

Lead Diameter
600 ?m

Lifetime @ Temp
5000 Hrs @ 125°C

Ripple Current
790mA

Polarization
Polar

Life (Hours)
5000 hours

Impedance
94mOhm

Ripple Current @ High Frequency
790mA @ 100kHz

Height Seated (Max)
1.063 27.00mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UBT1V221MPD8TD.

UBT1V221MPD8TD Overview

Full charge results in a ripple current of 790mA @ 100kHz.The ripple current at the lowest charge is 395mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 1.063 27.00mm is recommended.High efficiency requires an operating temperature of -40°C~125°C.

UBT1V221MPD8TD Features

the ripple current is 790mA @ 100kHz.
the ripple current is 395mA @ 120Hz.
an operating temperature of -40°C~125°C

UBT1V221MPD8TD Applications

There are a lot of Nichicon
UBT1V221MPD8TD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
