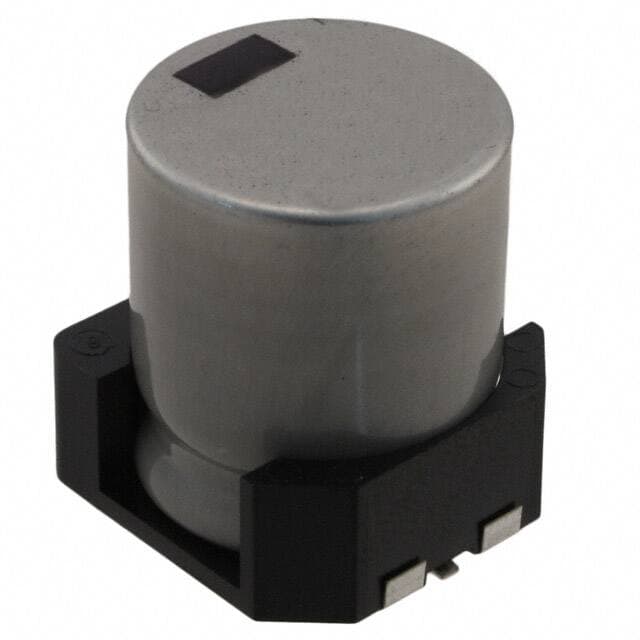

NICHICON UBC1A222MNS1MS

Manufacturer No:

UBC1A222MNS1MS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UBC 2200?F Capacitor ±20% Tape & Reel (TR) Surface Mount 1.35A 0.709Dia 18.00mm -55°C~150°C Polar Radial, Can - SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UBC1A222MNS1MS information

NICHICON UBC1A222MNS1MS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UBC1A222MNS1MS.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Terminal Shape
FLAT

Material
Aluminium

Surface Mount Land Size
0.752Lx0.752W 19.10mmx19.10mm

Operating Temperature
-55°C~150°C

Packaging
Tape & Reel (TR)

Series
UBC

Published
2009

Size / Dimension
0.709Dia 18.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
SMD/SMT

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
Automotive

HTS Code
8532.22.00

Capacitance
2200?F

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Size Code
7575

Voltage
10V

Lifetime @ Temp
1000 Hrs @ 150°C

Leakage Current
660?A

Ripple Current
1.35A

Polarization
Polar

Life (Hours)
1000 hours

Tan Delta
0.24

Ripple Current @ Low Frequency
904.5mA @ 120Hz

Ripple Current @ High Frequency
1.35A @ 100kHz

Diameter
18mm

Height
21.5mm

Height Seated (Max)
0.886 22.50mm

Length
20.1mm

Width
19.1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UBC1A222MNS1MS.

Datasheets:

nichicon-pcj1a391mcl1gs-datasheets-5842.pdf

nichicon-pcf1a151mcl6gs-datasheets-6222.pdf

UBC1A222MNS1MS Overview

As far as the ripple current is concerned, it is 1.35A @ 100kHz at full charge.As far as the ripple current is concerned, it is 904.5mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.886 22.50mm.This capacitor operates from a voltage - Rated DC of 10V.The operating temperature should be maintained at -55°C~150°C for high efficiency.

UBC1A222MNS1MS Features

the ripple current is 1.35A @ 100kHz.
the ripple current is 904.5mA @ 120Hz.
voltage - Rated DC of 10V
an operating temperature of -55°C~150°C

UBC1A222MNS1MS Applications

There are a lot of Nichicon
UBC1A222MNS1MS applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
