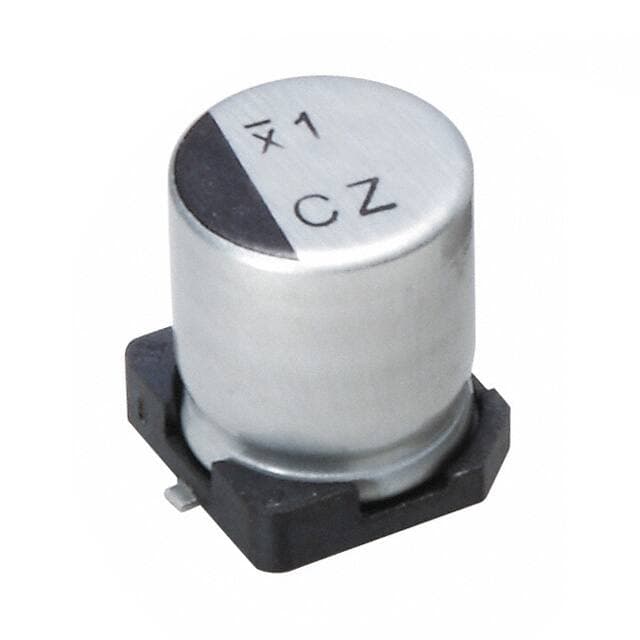

NICHICON UCZ2A220MCL6GS
NICHICON UCZ2A220MCL6GS

NICHICON UCZ2A220MCL6GS

Manufacturer No:

UCZ2A220MCL6GS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UCZ 22?F Capacitor ±20% Cut Tape (CT) Surface Mount 35mA 0.315Dia 8.00mm -40°C~125°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCZ2A220MCL6GS information

NICHICON UCZ2A220MCL6GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCZ2A220MCL6GS.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Dielectric Material
  • ALUMINUM (WET)
  • Weight
  • 799.995193mg
  • Surface Mount Land Size
  • 0.327Lx0.327W 8.30mmx8.30mm
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • UCZ
  • Published
  • 2015
  • Size / Dimension
  • 0.315Dia 8.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 22?F
  • Voltage - Rated DC
  • 100V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 750mOhm
  • Lifetime @ Temp
  • 3000 Hrs @ 125°C
  • Leakage Current
  • 3?A
  • Ripple Current
  • 35mA
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Ripple Current @ Low Frequency
  • 35mA @ 120Hz
  • Dissipation Factor
  • 0.1 %
  • Diameter
  • 8mm
  • Height Seated (Max)
  • 0.413 10.50mm
  • Length
  • 8.9mm
  • Width
  • 8.3mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UCZ2A220MCL6GS.

Datasheets:

UCZ2A220MCL6GS Overview


In order for 750mOhm to perform its full function, the ESR (Equivalent Series Resistance) needs to be provided.When the charge is lowest, the ripple current is 35mA @ 120Hz.Sitting height (Max) should not exceed 0.413 10.50mm.Based on a dissipation factor of 0.1 %, it operates.Voltage - Rated DC of 100V is required to operate this capacitor.It is recommended to maintain the operating temperature at -40°C~125°C in order to maximize efficiency.

UCZ2A220MCL6GS Features


the ripple current is 35mA @ 120Hz.
a dissipation factor of 0.1 %
voltage - Rated DC of 100V
an operating temperature of -40°C~125°C


UCZ2A220MCL6GS Applications


There are a lot of Nichicon
UCZ2A220MCL6GS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
