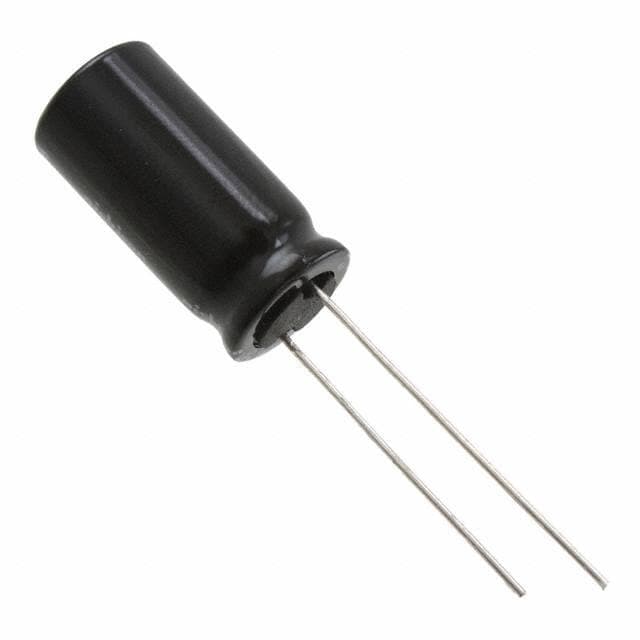

NICHICON UHV1C152MPD1TD
Manufacturer No:
UHV1C152MPD1TD
Manufacturer:
Package:
Radial, Can
Description:
UHV 1500?F Capacitor ±20% Tape & Reel (TR) Through Hole 1.296A 0.394Dia 10.00mm -40°C~105°C Polar 5.0038mm Radial, Can
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
UHV1C152MPD1TD information
NICHICON UHV1C152MPD1TD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UHV1C152MPD1TD.
- Type
- Parameter
- Factory Lead Time
- 19 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Dielectric Material
- ALUMINUM
- Operating Temperature
- -40°C~105°C
- Packaging
- Tape & Reel (TR)
- Series
- UHV
- Published
- 2009
- Size / Dimension
- 0.394Dia 10.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- Applications
- General Purpose
- Voltage - Rated
- 16V
- HTS Code
- 8532.22.00
- Capacitance
- 1500?F
- Terminal Pitch
- 5mm
- Lead Pitch
- 5.0038mm
- Capacitor Type
- ALUMINUM ELECTROLYTIC CAPACITOR
- Rated (DC) Voltage (URdc)
- 16V
- Lifetime @ Temp
- 6000 Hrs @ 105°C
- Ripple Current
- 1.296A
- Polarization
- Polar
- Life (Hours)
- 6000 hours
- Impedance
- 19mOhm
- Ripple Current @ Low Frequency
- 1.296A @ 120Hz
- Ripple Current @ High Frequency
- 2.16A @ 100kHz
- Diameter
- 10mm
- Height Seated (Max)
- 0.866 22.00mm
- Length
- 20mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for NICHICON UHV1C152MPD1TD.
Datasheets:
UHV1C152MPD1TD Overview
Ripple current at full charge is 2.16A @ 100kHz.It is 1.296A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.866 22.00mm.It is recommended that the device's rated voltage (URdc) be set to 16V (16V).It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.
UHV1C152MPD1TD Features
the ripple current is 2.16A @ 100kHz.
the ripple current is 1.296A @ 120Hz.
an operating temperature of -40°C~105°C
UHV1C152MPD1TD Applications
There are a lot of Nichicon
UHV1C152MPD1TD applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
