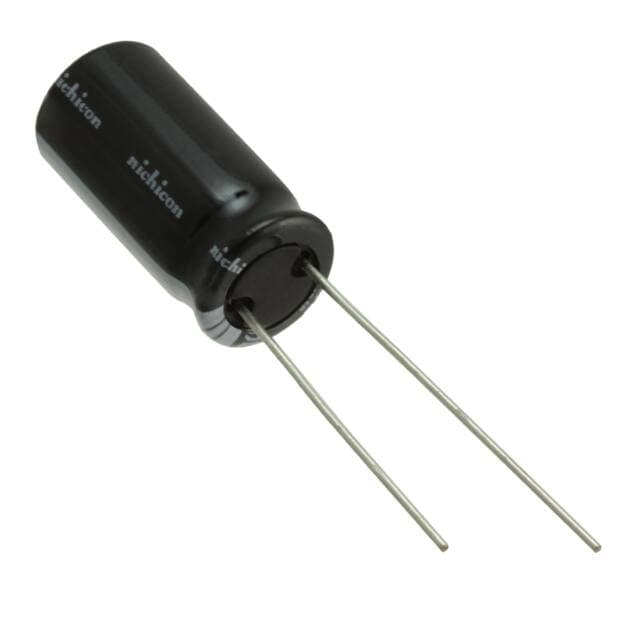

Nichicon UHD0J102MPD
Nichicon UHD0J102MPD

Nichicon UHD0J102MPD

Manufacturer No:

UHD0J102MPD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UHD 1000?F Capacitor ±20% Bulk Through Hole 1.03A 0.394Dia 10.00mm -40°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UHD0J102MPD information

Nichicon UHD0J102MPD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UHD0J102MPD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • UHD
  • Published
  • 1998
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 1000?F
  • Voltage - Rated DC
  • 6.3V
  • Voltage - Rated AC
  • 6.3V
  • Lead Pitch
  • 5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.197 5.00mm
  • Lead Diameter
  • 600 ?m
  • Lifetime @ Temp
  • 4000 Hrs @ 105°C
  • Leakage Current
  • 63?A
  • Ripple Current
  • 1.03A
  • Polarization
  • Polar
  • Life (Hours)
  • 4000 hours
  • Impedance
  • 53mOhm
  • Ripple Current @ Low Frequency
  • 772.5mA @ 120Hz
  • Ripple Current @ High Frequency
  • 1.03A @ 100kHz
  • Lead/Base Style
  • Straight
  • Ripple Current (AC)
  • 1.03A
  • Diameter
  • 10mm
  • Height
  • 12.5mm
  • Height Seated (Max)
  • 0.551 14.00mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Nichicon UHD0J102MPD.

Datasheets:

UHD0J102MPD Overview


Full charge should result in a ripple current of 1.03A @ 100kHz.If the charge is low, ripple current is 772.5mA @ 120Hz.Keep your seated height below 0.551 14.00mm.A voltage of 6.3V DC is used to operate this capacitor.A voltage of 6.3V AC powers this capacitor.The maximum efficiency can be achieved by maintaining -40°C~105°C as the operating temperature.

UHD0J102MPD Features


the ripple current is 1.03A @ 100kHz.
the ripple current is 772.5mA @ 120Hz.
voltage - Rated DC of 6.3V
an operating temperature of -40°C~105°C


UHD0J102MPD Applications


There are a lot of Nichicon
UHD0J102MPD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
