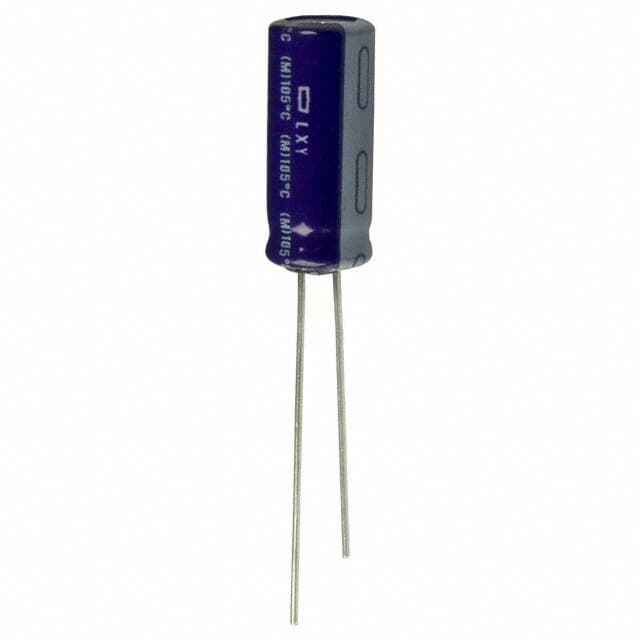

United Chemi-Con ELXY350ELL221MH20D
United Chemi-Con ELXY350ELL221MH20D

United Chemi-Con ELXY350ELL221MH20D

Manufacturer No:

ELXY350ELL221MH20D

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXY 220?F Capacitor ±20% Bulk Through Hole 740mA 0.315Dia 8.00mm -55°C~105°C Polar 3.5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXY350ELL221MH20D information

United Chemi-Con ELXY350ELL221MH20D technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXY350ELL221MH20D.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • LXY
  • Published
  • 1998
  • Size / Dimension
  • 0.315Dia 8.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Radial
  • Applications
  • Automotive
  • Capacitance
  • 220?F
  • Voltage - Rated DC
  • 35V
  • Lead Pitch
  • 3.5mm
  • ESR (Equivalent Series Resistance)
  • 95mOhm
  • Lead Spacing
  • 0.138 3.50mm
  • Lead Diameter
  • 600 ?m
  • Voltage
  • 35V
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Impedance
  • 95mOhm
  • Ripple Current @ Low Frequency
  • 370mA @ 120Hz
  • Ripple Current @ High Frequency
  • 740mA @ 100kHz
  • Diameter
  • 8mm
  • Height
  • 20mm
  • Height Seated (Max)
  • 0.846 21.50mm
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free
  • Ratings
  • AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXY350ELL221MH20D.

Datasheets:

ELXY350ELL221MH20D Overview


With a full charge, the ripple current is 740mA @ 100kHz.Defining 95mOhm as an ESR (Equivalent Series Resistance) is essential.When the charge is at the lowest, the ripple current is 370mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.846 21.50mm.Voltage - Rated DC of 35V controls this capacitor.High efficiency requires the operating temperature to be -55°C~105°C.

ELXY350ELL221MH20D Features


the ripple current is 740mA @ 100kHz.
the ripple current is 370mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -55°C~105°C


ELXY350ELL221MH20D Applications


There are a lot of United Chemi-Con
ELXY350ELL221MH20D applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
