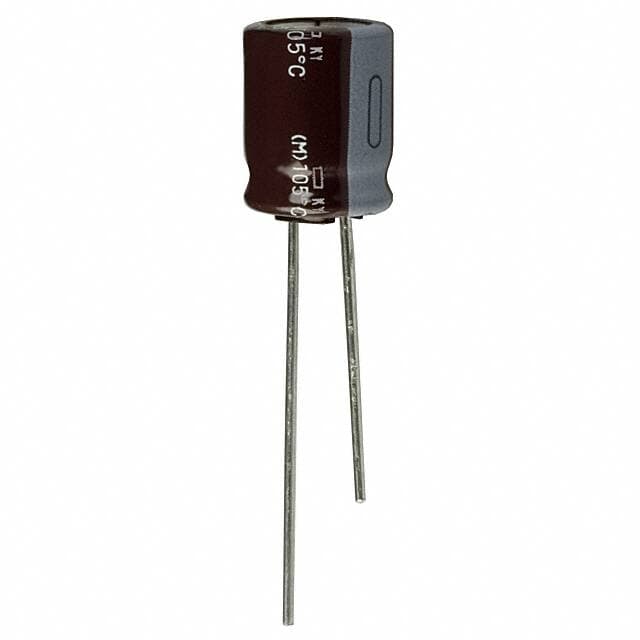

United Chemi-Con EKY-100ELL681MJC5S

Manufacturer No:

EKY-100ELL681MJC5S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 680?F Capacitor ±20% Bulk Through Hole 865mA 0.394Dia 10.00mm -40°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-100ELL681MJC5S information

United Chemi-Con EKY-100ELL681MJC5S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-100ELL681MJC5S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KY

Published
2004

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
680?F

Voltage - Rated DC
10V

Lead Pitch
5mm

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
6000 Hrs @ 105°C

Ripple Current
865mA

Polarization
Polar

Life (Hours)
6000 hours

Ripple Current @ Low Frequency
519mA @ 120Hz

Ripple Current @ High Frequency
865mA @ 100kHz

Height Seated (Max)
0.492 12.50mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKY-100ELL681MJC5S.

Datasheets:

unitedchemicon-eky500ell102mk40s-datasheets-0989.pdf

EKY-100ELL681MJC5S Overview

At full charge, the ripple current is 865mA @ 100kHz.The ripple current is 519mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 0.492 12.50mm.The capacitor operates at a voltage of 10V - Rated DC.For high efficiency, the operating temperature should be -40°C~105°C.

EKY-100ELL681MJC5S Features

the ripple current is 865mA @ 100kHz.
the ripple current is 519mA @ 120Hz.
voltage - Rated DC of 10V
an operating temperature of -40°C~105°C

EKY-100ELL681MJC5S Applications

There are a lot of United Chemi-Con
EKY-100ELL681MJC5S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
