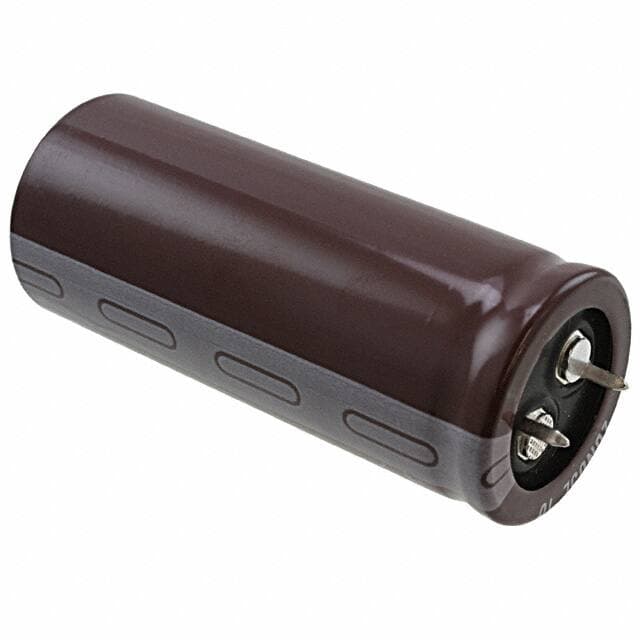

United Chemi-Con EKMR201VSN222MR50S
United Chemi-Con EKMR201VSN222MR50S

United Chemi-Con EKMR201VSN222MR50S

Manufacturer No:

EKMR201VSN222MR50S

Manufacturer:

United Chemi-Con

Package:

Radial, Can - Snap-In

Description:

KMR 2200?F Capacitor ±20% Bulk Through Hole 3.31A 1.181Dia 30.00mm -25°C~105°C Polar 10.0076mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKMR201VSN222MR50S information

United Chemi-Con EKMR201VSN222MR50S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKMR201VSN222MR50S.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Series
  • KMR
  • Published
  • 2015
  • Size / Dimension
  • 1.181Dia 30.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Snap in
  • Applications
  • General Purpose
  • Capacitance
  • 2200?F
  • Voltage - Rated DC
  • 200V
  • Lead Pitch
  • 10.0076mm
  • Lead Spacing
  • 0.394 10.00mm
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Leakage Current
  • 1.989974mA
  • Ripple Current
  • 3.31A
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ High Frequency
  • 4.965A @ 50kHz
  • Dissipation Factor
  • 15 %
  • Diameter
  • 30mm
  • Height
  • 52.5mm
  • Height Seated (Max)
  • 2.047 52.00mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKMR201VSN222MR50S.

Datasheets:

EKMR201VSN222MR50S Overview


Full charge results in a ripple current of 4.965A @ 50kHz.The ripple current at the lowest charge is 3.31A @ 120Hz.Keeping the maximum height of the seated person (Max) below 2.047 52.00mm is recommended.Despite its 15 % dissipation factor, it still operates.Rated DC voltage is 200V for this capacitor.High efficiency requires an operating temperature of -25°C~105°C.

EKMR201VSN222MR50S Features


the ripple current is 4.965A @ 50kHz.
the ripple current is 3.31A @ 120Hz.
a dissipation factor of 15 %
voltage - Rated DC of 200V
an operating temperature of -25°C~105°C


EKMR201VSN222MR50S Applications


There are a lot of United Chemi-Con
EKMR201VSN222MR50S applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
