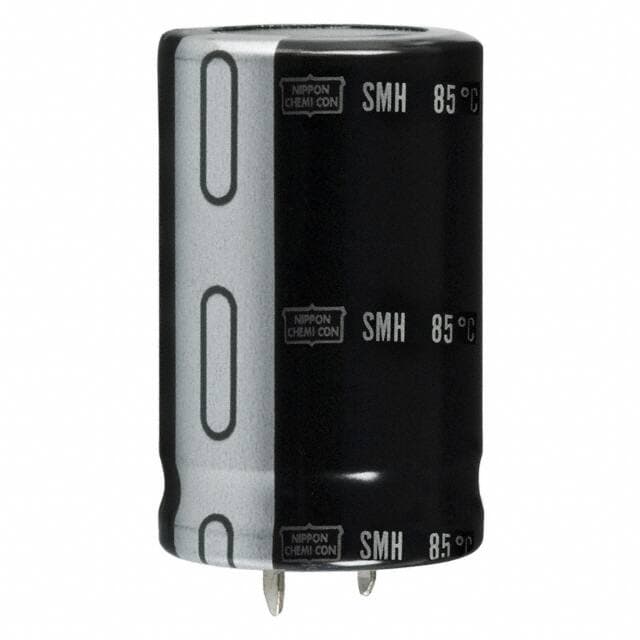

United Chemi-Con ESMH160VSN153MP35T
United Chemi-Con ESMH160VSN153MP35T

United Chemi-Con ESMH160VSN153MP35T

Manufacturer No:

ESMH160VSN153MP35T

Manufacturer:

United Chemi-Con

Package:

Radial, Can - Snap-In

Description:

SMH 15000?F Capacitor ±20% Bulk Through Hole 3.29A 0.866Dia 22.00mm -40°C~85°C Polar 10.0076mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESMH160VSN153MP35T information

United Chemi-Con ESMH160VSN153MP35T technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ESMH160VSN153MP35T.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • SMH
  • Published
  • 2007
  • Size / Dimension
  • 0.866Dia 22.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Snap in
  • Applications
  • General Purpose
  • Capacitance
  • 15000?F
  • Voltage - Rated DC
  • 16V
  • Lead Pitch
  • 10.0076mm
  • ESR (Equivalent Series Resistance)
  • 44mOhm @ 120Hz
  • Lead Spacing
  • 0.394 10.00mm
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Ripple Current
  • 3.29A
  • Polarization
  • Polar
  • Ripple Current @ Low Frequency
  • 3.29A @ 120Hz
  • Ripple Current @ High Frequency
  • 3.5532A @ 100kHz
  • Diameter
  • 22mm
  • Height
  • 35mm
  • Height Seated (Max)
  • 1.378 35.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con ESMH160VSN153MP35T.

Datasheets:

ESMH160VSN153MP35T Overview


A full charge has a ripple current of 3.5532A @ 100kHz volts.In order to fully utilize 44mOhm @ 120Hz, ESR (Equivalent Series Resistance) needs to be provided.In the lowest charge, the ripple current is 3.29A @ 120Hz.Sitting height should not exceed 1.378 35.00mm (Max).A voltage of 16V DC operates this capacitor.Maintaining -40°C~85°C as the operating temperature will maximize efficiency.

ESMH160VSN153MP35T Features


the ripple current is 3.5532A @ 100kHz.
the ripple current is 3.29A @ 120Hz.
voltage - Rated DC of 16V
an operating temperature of -40°C~85°C


ESMH160VSN153MP35T Applications


There are a lot of United Chemi-Con
ESMH160VSN153MP35T applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
