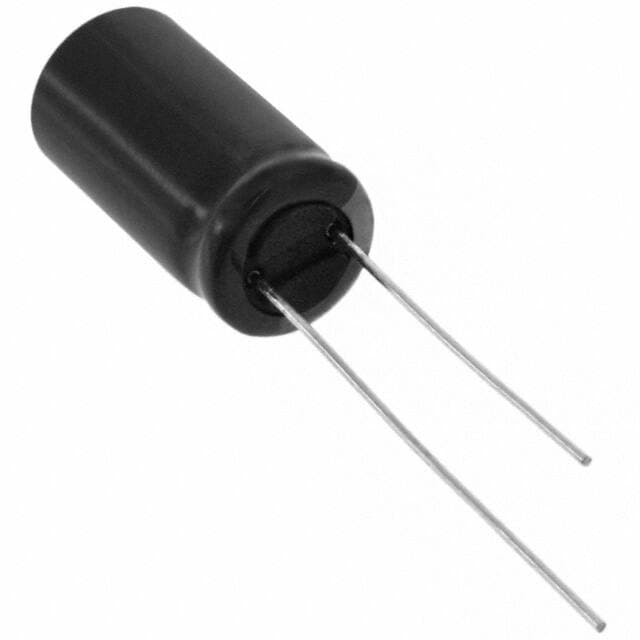

United Chemi-Con ELXV100ETD102MJ20S

Manufacturer No:

ELXV100ETD102MJ20S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXV 1000?F Capacitor ±20% Tape & Box (TB) Through Hole 1.06A 0.394Dia 10.00mm -55°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXV100ETD102MJ20S information

United Chemi-Con ELXV100ETD102MJ20S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXV100ETD102MJ20S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-55°C~105°C

Packaging
Tape & Box (TB)

Series
LXV

Published
2016

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Applications
Automotive

Capacitance
1000?F

Voltage - Rated DC
10V

Lead Pitch
5.0038mm

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
3000 Hrs @ 105°C

Ripple Current
1.06A

Polarization
Polar

Life (Hours)
3000 hours

Impedance
62mOhm

Ripple Current @ High Frequency
1.06A @ 100kHz

Height Seated (Max)
0.846 21.50mm

RoHS Status
RoHS Compliant

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXV100ETD102MJ20S.

Datasheets:

unitedchemicon-elxv350ete102mk30s-datasheets-4821.pdf

ELXV100ETD102MJ20S Overview

A full charge has a ripple current of 1.06A @ 100kHz volts.In the lowest charge, the ripple current is 742mA @ 120Hz.Sitting height should not exceed 0.846 21.50mm (Max).A voltage of 10V DC operates this capacitor.Maintaining -55°C~105°C as the operating temperature will maximize efficiency.

ELXV100ETD102MJ20S Features

the ripple current is 1.06A @ 100kHz.
the ripple current is 742mA @ 120Hz.
voltage - Rated DC of 10V
an operating temperature of -55°C~105°C

ELXV100ETD102MJ20S Applications

There are a lot of United Chemi-Con
ELXV100ETD102MJ20S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
