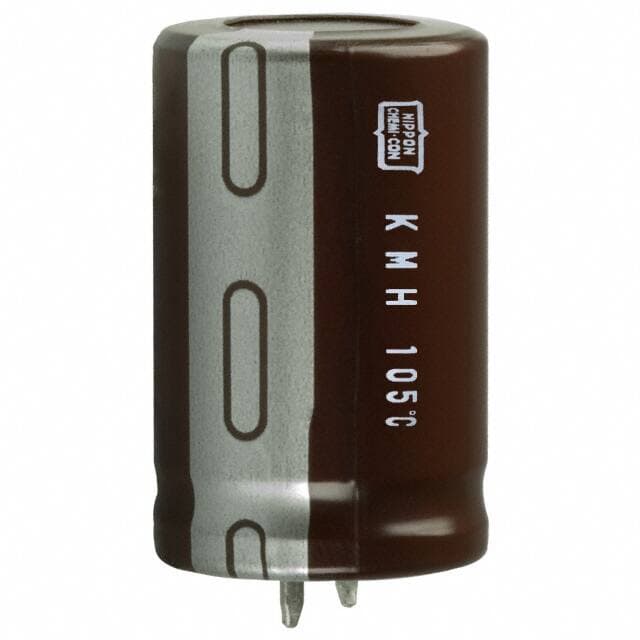

United Chemi-Con EKMH500VSN472MQ35S

Manufacturer No:

EKMH500VSN472MQ35S

Manufacturer:

United Chemi-Con

Package:

Radial, Can - Snap-In

Description:

KMH 4700?F Capacitor ±20% Bulk Through Hole 2.39A 1.000Dia 25.40mm -40°C~105°C Polar 10.0076mm Radial, Can - Snap-In

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKMH500VSN472MQ35S information

United Chemi-Con EKMH500VSN472MQ35S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKMH500VSN472MQ35S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KMH

Published
2010

Size / Dimension
1.000Dia 25.40mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Snap in

Applications
General Purpose

Capacitance
4700?F

Voltage - Rated DC
50V

Lead Pitch
10.0076mm

ESR (Equivalent Series Resistance)
71mOhm @ 120Hz

Lead Spacing
0.394 10.00mm

Lifetime @ Temp
2000 Hrs @ 105°C

Ripple Current
2.39A

Polarization
Polar

Life (Hours)
2000 hours

Ripple Current @ High Frequency
2.5812A @ 100kHz

Diameter
25.4mm

Height Seated (Max)
1.457 37.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKMH500VSN472MQ35S.

EKMH500VSN472MQ35S Overview

Ripple current at full charge is 2.5812A @ 100kHz.For 71mOhm @ 120Hz to fully function, the equivalent series resistance has to be provided.It is 2.39A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 1.457 37.00mm.Voltage - Rated DC - is 50V.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.

EKMH500VSN472MQ35S Features

the ripple current is 2.5812A @ 100kHz.
the ripple current is 2.39A @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C

EKMH500VSN472MQ35S Applications

There are a lot of United Chemi-Con
EKMH500VSN472MQ35S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
