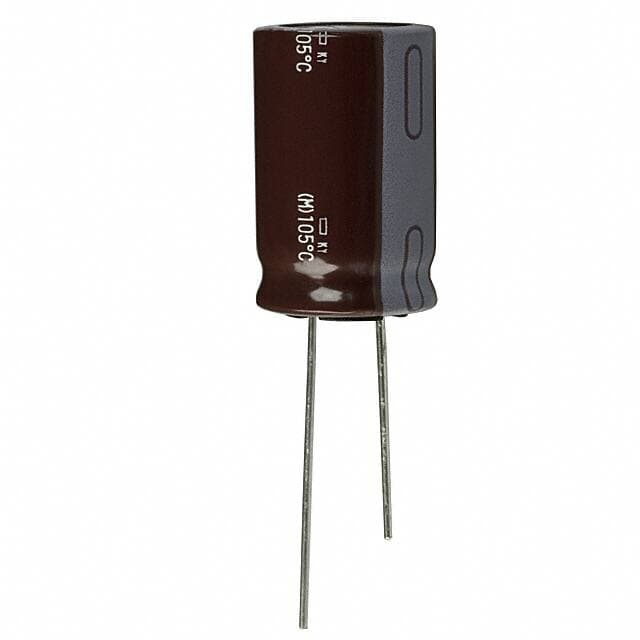

United Chemi-Con EKY-101ELL331ML25S

Manufacturer No:

EKY-101ELL331ML25S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 330?F Capacitor ±20% Bulk Through Hole 1.7A 0.630Dia 16.00mm -40°C~105°C Polar 7.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-101ELL331ML25S information

United Chemi-Con EKY-101ELL331ML25S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-101ELL331ML25S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
25

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KY

Published
2011

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Applications
General Purpose

Capacitance
330?F

Voltage - Rated DC
100V

Lead Pitch
7.5mm

ESR (Equivalent Series Resistance)
38mOhm

Lead Spacing
0.295 7.50mm

Lead Diameter
800 ?m

Voltage
100V

Lifetime @ Temp
10000 Hrs @ 105°C

Ripple Current
1.7A

Polarization
Polar

Life (Hours)
10000 hours

Impedance
38mOhm

Ripple Current @ Low Frequency
850mA @ 120Hz

Ripple Current @ High Frequency
1.7A @ 100kHz

Lead/Base Style
Straight

Diameter
16mm

Height Seated (Max)
1.043 26.50mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKY-101ELL331ML25S.

Datasheets:

unitedchemicon-eky500ell102mk40s-datasheets-0989.pdf

EKY-101ELL331ML25S Overview

Ripple current at full charge is 1.7A @ 100kHz.For 38mOhm to fully function, the equivalent series resistance has to be provided.It is 850mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 1.043 26.50mm.Voltage - Rated DC - is 100V.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.

EKY-101ELL331ML25S Features

the ripple current is 1.7A @ 100kHz.
the ripple current is 850mA @ 120Hz.
voltage - Rated DC of 100V
an operating temperature of -40°C~105°C

EKY-101ELL331ML25S Applications

There are a lot of United Chemi-Con
EKY-101ELL331ML25S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
