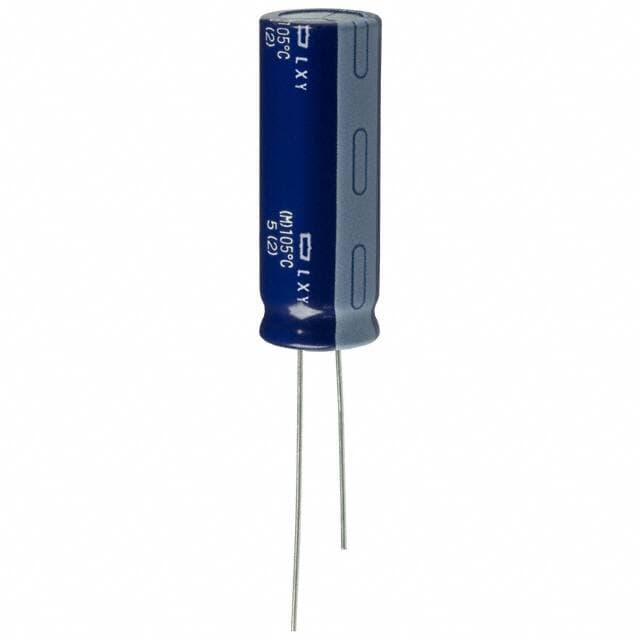

United Chemi-Con ELXY350ELL122MK35S

Manufacturer No:

ELXY350ELL122MK35S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXY 1200?F Capacitor ±20% Bulk Through Hole 2.22A 0.492Dia 12.50mm -55°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXY350ELL122MK35S information

United Chemi-Con ELXY350ELL122MK35S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXY350ELL122MK35S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
LXY

Published
2004

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
Automotive

Capacitance
1200?F

Voltage - Rated DC
35V

Lead Pitch
5.0038mm

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
7000 Hrs @ 105°C

Ripple Current
2.22A

Polarization
Polar

Life (Hours)
7000 hours

Ripple Current @ Low Frequency
1.332A @ 120Hz

Ripple Current @ High Frequency
2.22A @ 100kHz

Diameter
12.5mm

Height
35mm

Height Seated (Max)
1.437 36.50mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXY350ELL122MK35S.

Datasheets:

unitedchemicon-elxy250ell121mf15d-datasheets-4216.pdf

ELXY350ELL122MK35S Overview

Full charge results in a ripple current of 2.22A @ 100kHz.The ripple current at the lowest charge is 1.332A @ 120Hz.Keeping the maximum height of the seated person (Max) below 1.437 36.50mm is recommended.Rated DC voltage is 35V for this capacitor.High efficiency requires an operating temperature of -55°C~105°C.

ELXY350ELL122MK35S Features

the ripple current is 2.22A @ 100kHz.
the ripple current is 1.332A @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -55°C~105°C

ELXY350ELL122MK35S Applications

There are a lot of United Chemi-Con
ELXY350ELL122MK35S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
