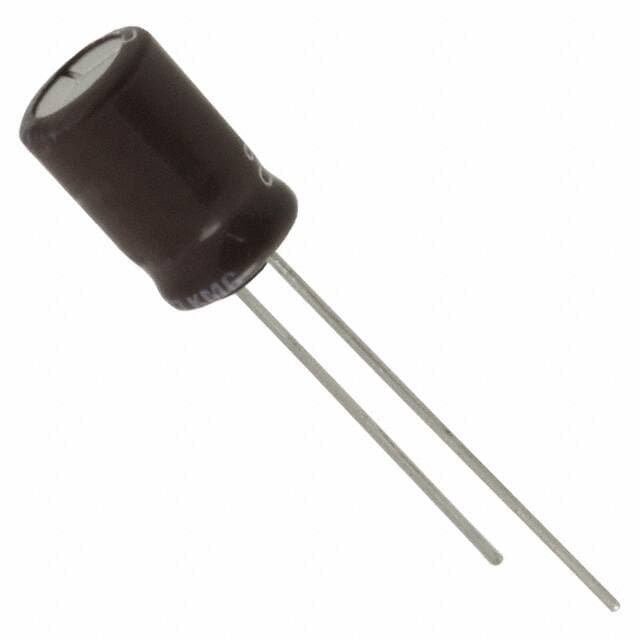

United Chemi-Con EKMG500ELL101MHB5D

Manufacturer No:

EKMG500ELL101MHB5D

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KMG 100?F Capacitor ±20% Bulk Through Hole 180mA 0.315Dia 8.00mm -55°C~105°C Polar 3.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKMG500ELL101MHB5D information

United Chemi-Con EKMG500ELL101MHB5D technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKMG500ELL101MHB5D.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
KMG

Published
2010

Size / Dimension
0.315Dia 8.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
100?F

Voltage - Rated DC
50V

Lead Pitch
3.5mm

Lead Spacing
0.138 3.50mm

Lead Diameter
600 ?m

Lifetime @ Temp
1000 Hrs @ 105°C

Ripple Current
180mA

Life (Hours)
1000 hours

Ripple Current @ Low Frequency
180mA @ 120Hz

Ripple Current @ High Frequency
270mA @ 100kHz

Diameter
8mm

Height
11.5mm

Height Seated (Max)
0.512 13.00mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
ROHS3 Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKMG500ELL101MHB5D.

Datasheets:

unitedchemicon-ekmg500ell221mjc5s-datasheets-5821.pdf

EKMG500ELL101MHB5D Overview

Full charge results in a ripple current of 270mA @ 100kHz.The ripple current at the lowest charge is 180mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.512 13.00mm is recommended.Rated DC voltage is 50V for this capacitor.High efficiency requires an operating temperature of -55°C~105°C.

EKMG500ELL101MHB5D Features

the ripple current is 270mA @ 100kHz.
the ripple current is 180mA @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C

EKMG500ELL101MHB5D Applications

There are a lot of United Chemi-Con
EKMG500ELL101MHB5D applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
