Microchip UCS2112-1-V/G4
Manufacturer No:
UCS2112-1-V/G4
Manufacturer:
Microchip
Package:

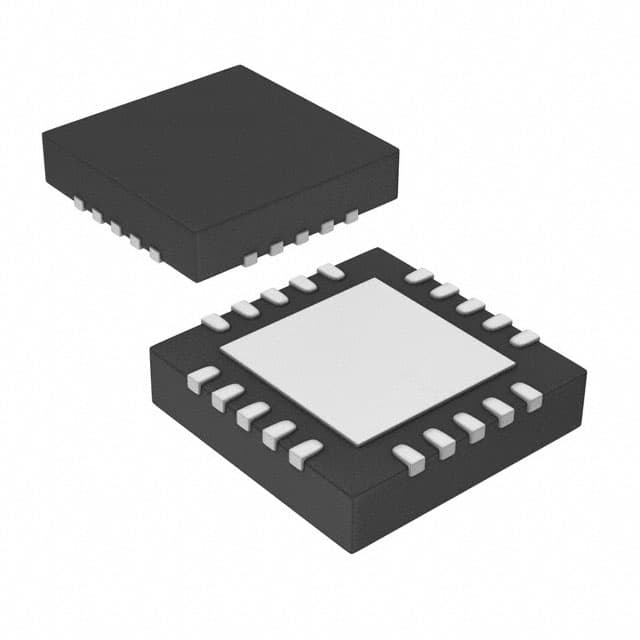

20-VFQFN Exposed Pad
Description:
Dual USB Power Switch with Integrated Current Sensor
Quantity:
In Stock :2902
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
UCS2112-1-V/G4 Information
Microchip UCS2112-1-V/G4 technical specifications, attributes, parameters and parts with similar specifications to Microchip UCS2112-1-V/G4.
- Type
- Parameter
- Category
- Integrated Circuits (ICs)
- Manufacturer
- Microchip Technology
- Packaging
- Tube
- Part Status
- Active
- Manufacturer Lead Time
- 6 Weeks
- Current - Output (Max)
- 3A
- Fault Protection
- Current Limiting (Adjustable), UVLO
- Features
- -
- Input Type
- -
- Interface
- I2C, SMBus
- Type
- Parameter
- Mounting Type
- Surface Mount
- Number of Outputs
- 2
- Operating Temperature
- -40°C ~ 105°C (TA)
- Output Configuration
- High Side
- Output Type
- -
- Package / Case
- 20-VFQFN Exposed Pad
- Ratio - Input:Output
- 1:1
- Rds On (Typ)
- 40mOhm
- Supplier Device Package
- 20-QFN (4x4)
- Switch Type
- USB Switch
Download datasheets and manufacturer documentation for Microchip UCS2112-1-V/G4.
Data Sheets:
The UCS2112 is a dual USB port power switch configuration which can provide 3.0A continuous current (3.4A maximum) per VBUS port. The UCS2112 is well suited for both stand-alone and applications having SMBus/I2C communications.
For applications with SMBus, the UCS2112 provides per-port current monitoring and eight programmable current limits per switch, ranging from 0.53A to 3.0A continuous current (3.4A maximum). Per-port charge rationing is also provided ranging from 3.8 mAh to 246.3 Ah.
In Stand-alone mode, the UCS2112 provides eight current limits for both switches, ranging from 0.53A + 0.53A to 3A + 3A total continuous current.
Both power switches include an independent VBUS discharge function and constant current mode current limiting for BC1.2 applications.
For applications with SMBus, the UCS2112 provides per-port current monitoring and eight programmable current limits per switch, ranging from 0.53A to 3.0A continuous current (3.4A maximum). Per-port charge rationing is also provided ranging from 3.8 mAh to 246.3 Ah.
In Stand-alone mode, the UCS2112 provides eight current limits for both switches, ranging from 0.53A + 0.53A to 3A + 3A total continuous current.
Both power switches include an independent VBUS discharge function and constant current mode current limiting for BC1.2 applications.
- 3.0A continuous current per VBUS port with 40 mO On resistance per switch
- Independent port power switch enable pins
- Dual fault ALERT# active drain output pins
- Constant Current or Trip mode current limiting behaviors
- Undervoltage, overvoltage lockout, back-drive, back-voltage protection
- Auto-recovery fault handling with low test current
- BOOST# logic output to increase DC-DC converter output under large load conditions
- A_DET# open-drain outputs for device attach detection per port
- Eight programmable current limits assignable to each power switch
- Other SMBus addresses available upon request
- Block read and block write
- 4x4 mm 20-pin QFN
- Self-contained current monitoring (no external sense resistor required)
- Fully programmable per-port charge rationing and behaviors
- Per-port BC1.2 VBUS Discharge Function
- -40°C to +105°C
- UL recognized and EN/IEC 60950-1 (CB) Certified
