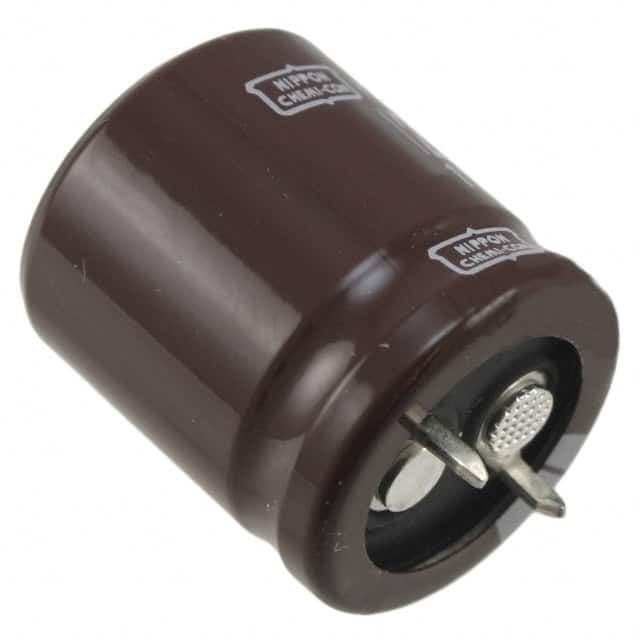

United Chemi-Con EKMH500VSN272MQ25S

Manufacturer No:

EKMH500VSN272MQ25S

Manufacturer:

United Chemi-Con

Package:

Radial, Can - Snap-In

Description:

KMH 2700?F Capacitor ±20% Bulk Through Hole 1.7A 1.000Dia 25.40mm -40°C~105°C Polar 10.0076mm Radial, Can - Snap-In

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKMH500VSN272MQ25S information

United Chemi-Con EKMH500VSN272MQ25S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKMH500VSN272MQ25S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KMH

Published
2011

Size / Dimension
1.000Dia 25.40mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Snap in

Applications
General Purpose

Capacitance
2700?F

Voltage - Rated DC
50V

Lead Pitch
10.0076mm

ESR (Equivalent Series Resistance)
123mOhm @ 120Hz

Lead Spacing
0.394 10.00mm

Voltage
50V

Lifetime @ Temp
2000 Hrs @ 105°C

Ripple Current
1.7A

Polarization
Polar

Ripple Current @ Low Frequency
1.7A @ 120Hz

Ripple Current @ High Frequency
1.836A @ 100kHz

Diameter
25.4mm

Height Seated (Max)
1.063 27.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKMH500VSN272MQ25S.

EKMH500VSN272MQ25S Overview

A full charge has a ripple current of 1.836A @ 100kHz volts.In order to fully utilize 123mOhm @ 120Hz, ESR (Equivalent Series Resistance) needs to be provided.In the lowest charge, the ripple current is 1.7A @ 120Hz.Sitting height should not exceed 1.063 27.00mm (Max).A voltage of 50V DC operates this capacitor.Maintaining -40°C~105°C as the operating temperature will maximize efficiency.

EKMH500VSN272MQ25S Features

the ripple current is 1.836A @ 100kHz.
the ripple current is 1.7A @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C

EKMH500VSN272MQ25S Applications

There are a lot of United Chemi-Con
EKMH500VSN272MQ25S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
